Visible Light PIR Camera OSD Menu Tree

eLineTechnology.com

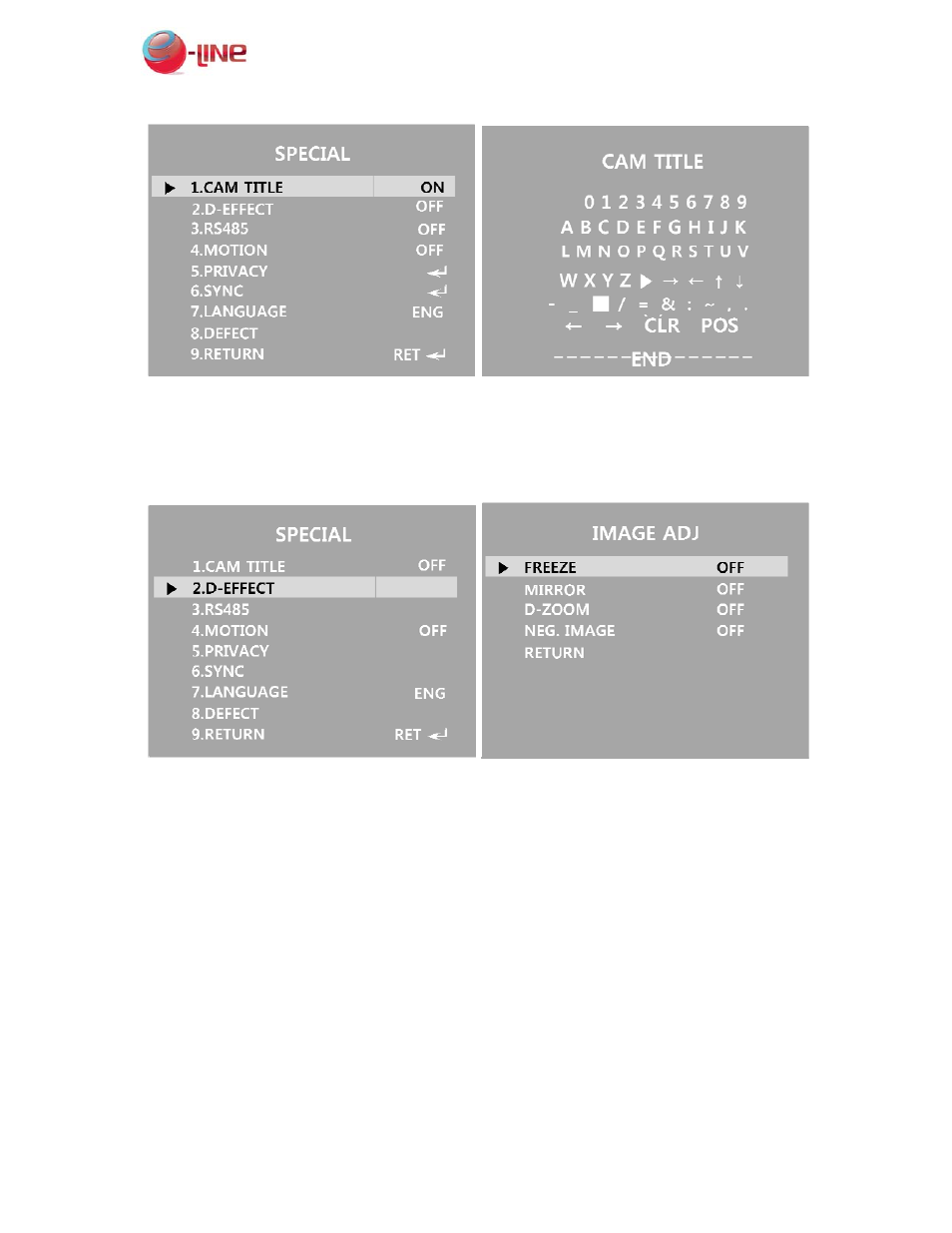

D-EFFECT

1.Once the SETUP menu screen is displayed, you can select ‘D-EFFECT’(Digital Effect) by using the
UP and DOWN buttons in order to indicate the arrow ‘D-EFFECT’
2.Please select a wanted mode by using the UP/DOWN buttons.

FREEZE : You can freeze the live picture on screen when you press the button at ON. You can

release the frozen live view by pressing the button at OFF.

MIRROR : OFF, MIRROR, V-FLIP, and ROTATE.

D-ZOOM : You can use a digital zoom of x1~x32

NEG. IMAGE : OFF, or ON.

RETURN : You can select this function to save the settings for the D-EFFECT menu and to

return to the SETUP menu.



RS485

1.RS485 is a function to setup when you want Camera to communicate with the outside

*Note :the function is disabled when camera doesn’t have IP support.

2.You can set up the mode by using the 4 direction buttons.
