9097060000(2)2009-10 A SCRUBTEC 653E 9
USER MANUAL ENGLISH

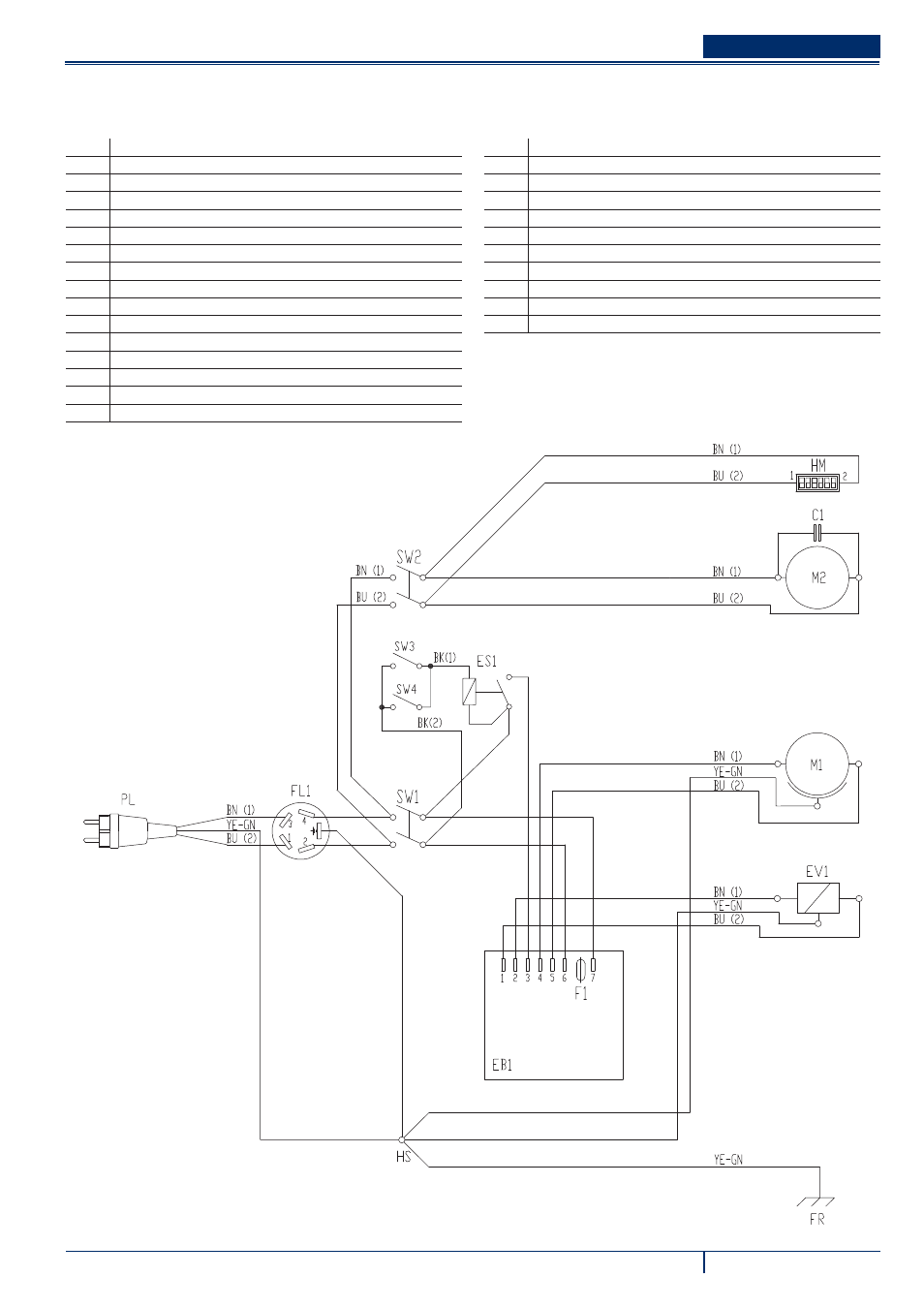

WIRING DIAGRAM
P100126
Key
C1 Filtering condenser
EB1 Water fl ow check electronic board
ES1 Brush motor relay
EV1 Water solenoid valve
F1 Electronic board fuse
FL1 Filter
FR Machine frame
HM Hour counter (optional)
HS Grounding screw
M1 Brush/pad-holder motor
M2 Vacuum system motor
PL Plug
SW1 Brush/pad-holder switch
SW2 Vacuum system switch
SW3 Brush/pad-holder switch on the right of the handlebar
SW4 Brush/pad-holder switch on the left of the handlebar
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
