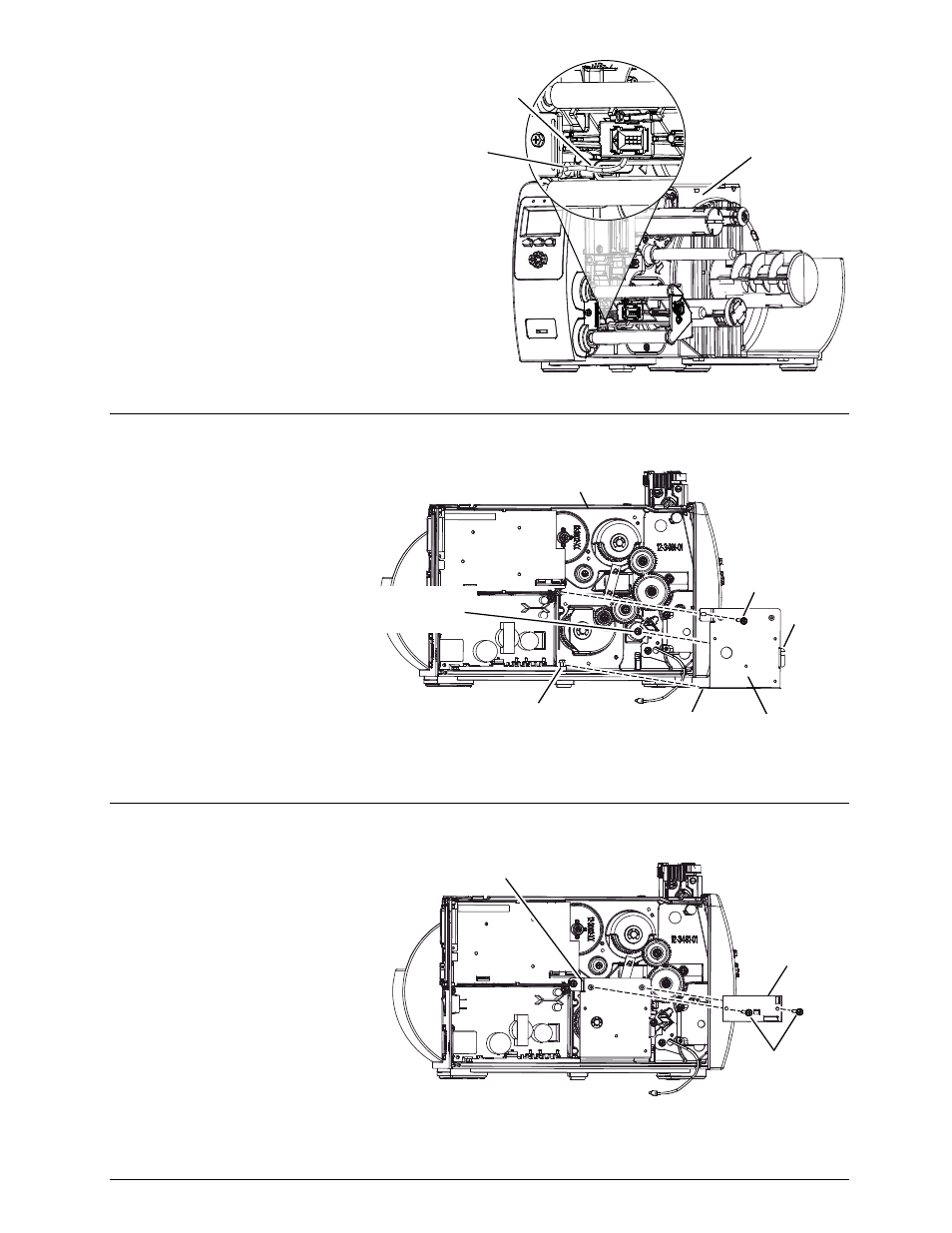

D) Route the Antenna Cable
through the Cableway in the
Centerplate.
Centerplate Cableway
Antenna Cable
E) Loosen the Guide Screw
and the Heat Sink Screw
then slide the Notched
Tabs of the Mounting
Plate (Item 3)
underneath. Secure the
Mounting Plate to the
Centerplate using the
Screw (Item 6) and then
tighten the Guide Screw
and the Heat Sink Screw.
Screw
Mounting
Plate
Centerplate
Notched
Tab
Notched
Tab
Heat Sink
Screw
Guide Screw
F) Secure the Regulator CCA
(Item 2) to the Mounting
Plate using the Screws
(Item 6) then proceed
according to the option
type:
Mounting
Plate
Regulator
CCA
Screws
