Datamax-O'Neil M-Class Mark II RFID Ready Option User Manual
Page 10
8

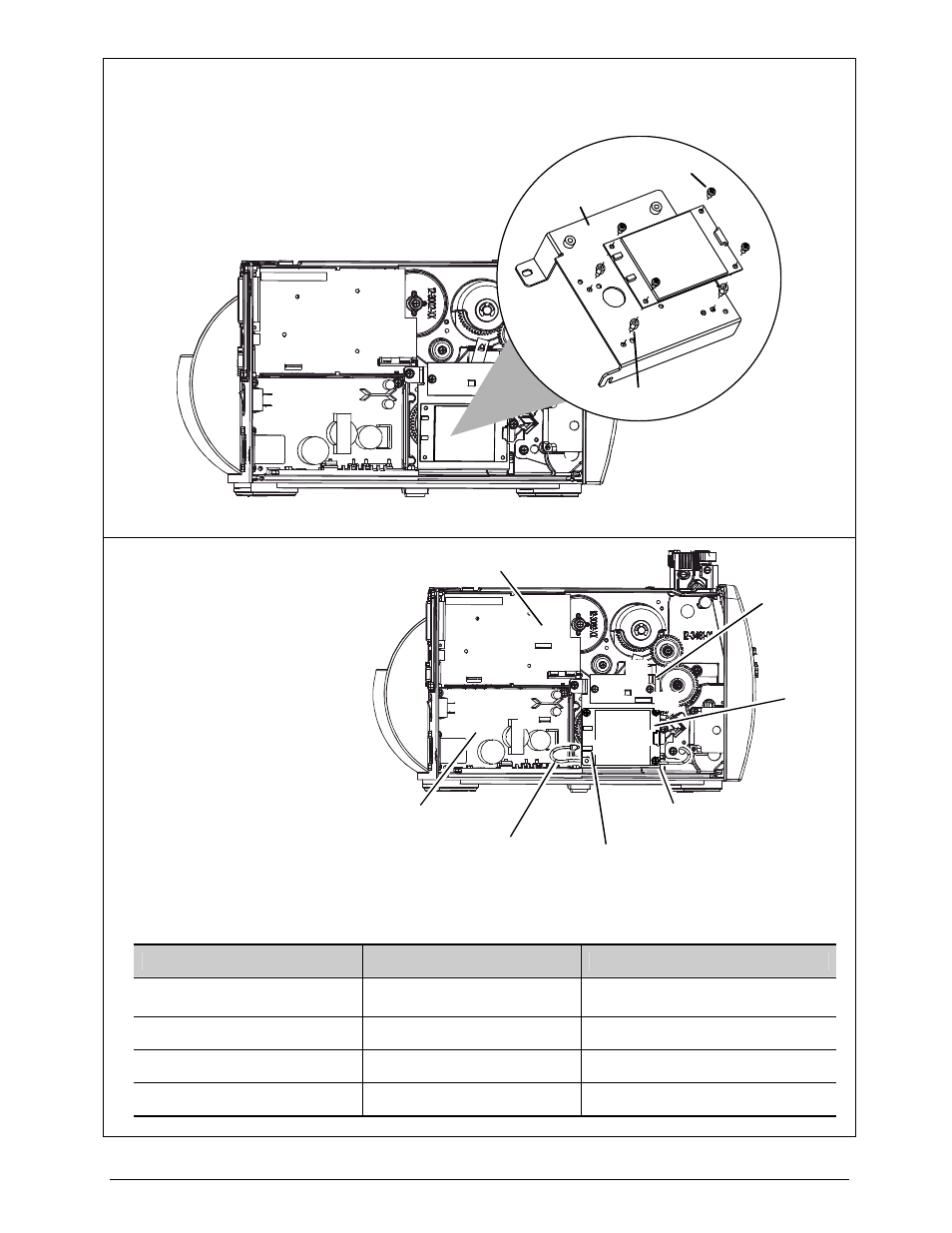

UHF Option:
G) Secure the UHF Module (Item 10) to the Mounting Plate using the four Standoffs
(Item 11) and four Screws (Item 8).
Standoffs
Screws
UHF
Module
Mounting
Plate
H) Route the Antenna
Cable behind the
Mounting Plate and
then connect the cables
according to the table
below:
Mounting
Plate
Regulator
CCA
Power
Supply CCA
J1
J12
Main Logic
CCA
J2
J7
Antenna
Port
Antenna
Cable
UHF
Module
J3
J1
J2
Cable
From
To
Antenna Cable
Antenna
Antenna Port J1 – UHF
Module
Power Cable (Item 4)
J7 – Power Supply CCA
J1 - Regulator CCA
Comm Cable (Item 5)
J12 – Main Logic CCA
J2 – Regulator CCA
I/O Cable (Item 9) J2
– UHF Module
J3 – Regulator CCA
