Datamax-O'Neil M-Class Mark II RFID Ready Option User Manual
Page 7
5

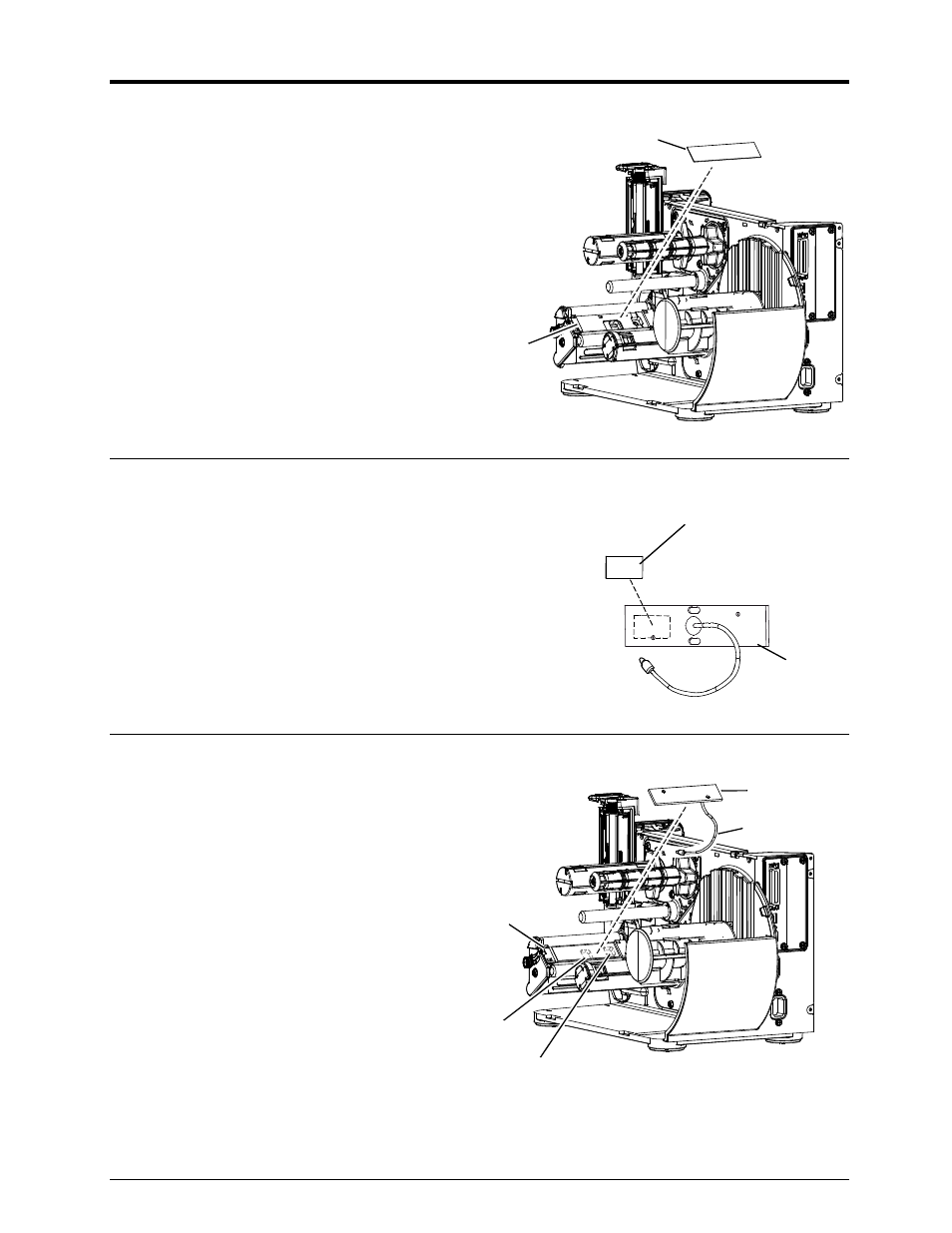

Step 3: Installing the Option
A) Peel the backing from the
Double-Sided Tape (Item 7).
Affix the Double-Sided Tape
to the recessed area of the
Antenna Mount.
If installing the HF Option,
proceed to B; otherwise, go to
C.
Antenna Mount
Double-Sided Tape
B) HF Option, only –
Peel the backing from the RF Shield (Item 12).
Affix the RF Shield to the Antenna (Item 1) in
the area as shown, right.
RF Sheild
(HF Option, only)
Antenna
C) According to the option type,
cut the tape over the HF
Opening or UHF Opening in
the Antenna Mount. Route
the Antenna Cable through
the opening. If installing the
HF Option, orient the RF
Shield over the UHF
Opening. Affix the Antenna
(Item 1) in the Antenna
Mount.
Antenna Mount
Antenna Cable
Antenna
HF Opening
UHF Opening
