Datamax-O'Neil H-Class Powered Internal Rewind Option User Manual
Page 6
4

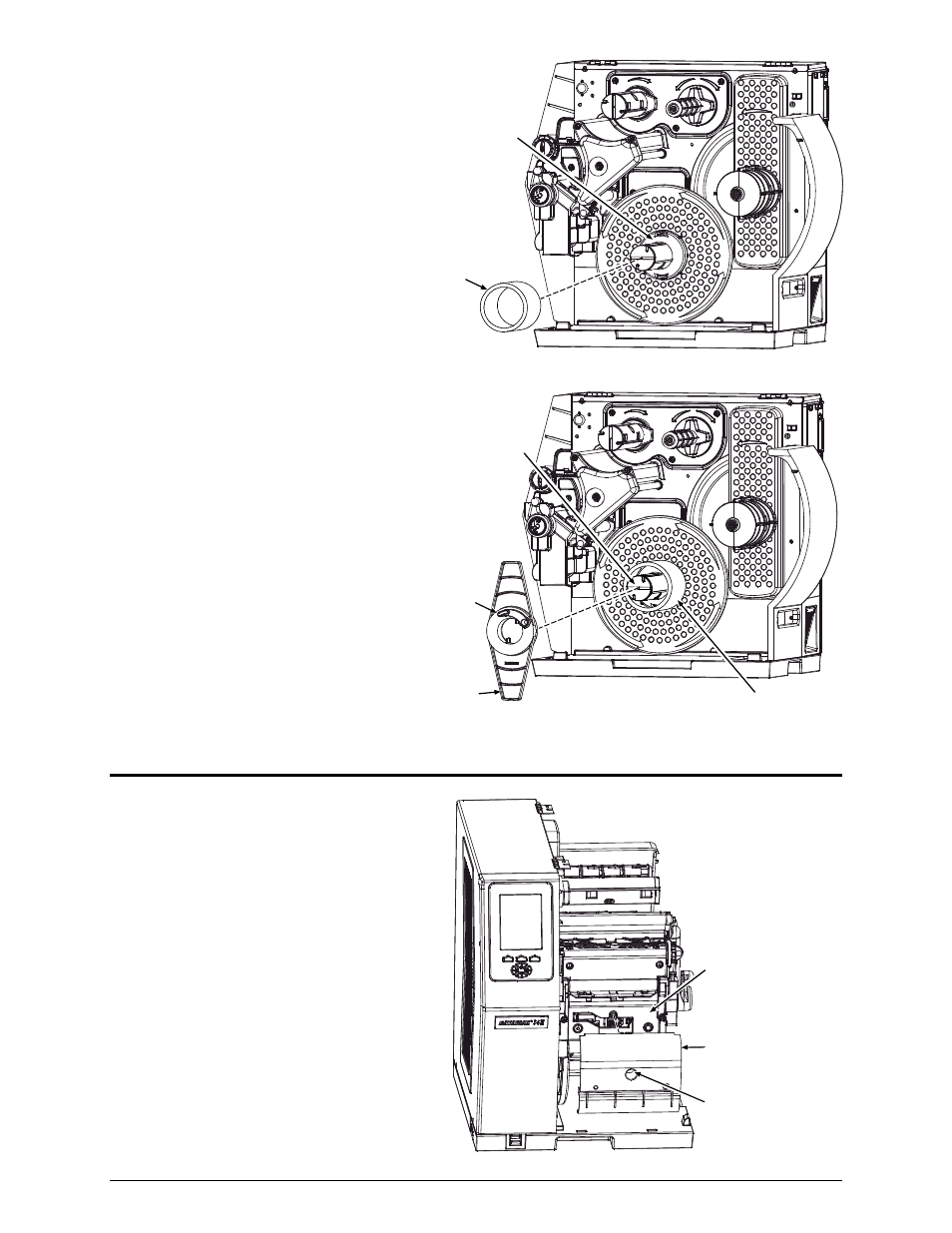

F) Slide a three-inch diameter Media
Core onto the Core Adapter Collar.
(Note that the width of the Media Core
should be at least as wide as the
media you will be winding.)
Media
Core
Core
Adapter Collar
G) Open the Latch. Slide the Retainer
(Item
) onto the Rewinder Hub so
that it securely captivates the Media
Core, and then close the Latch.
Retainer
Rewinder
Hub
Latch
Media Core
Step 3: Using the Option
A) To use this option, proceed according
to your application:
To wind printed labels onto a
media core, attach the Arc Plate
(Item
) to the Front Housing
with the built-in Screw; or,
To wind liner material only, attach
your Peel and Present device to
the printer.
Screw
Front Housing
Arc Plate
