9360

Series

360° Non-Contacting Rotary

Dual Output Hall Effect Sensor

170 Technology Drive West

Irvine, CA 92618-2401

(949) 341-9530 Fax: (949) 453-2700

email: [email protected]

www.beiduncan.com

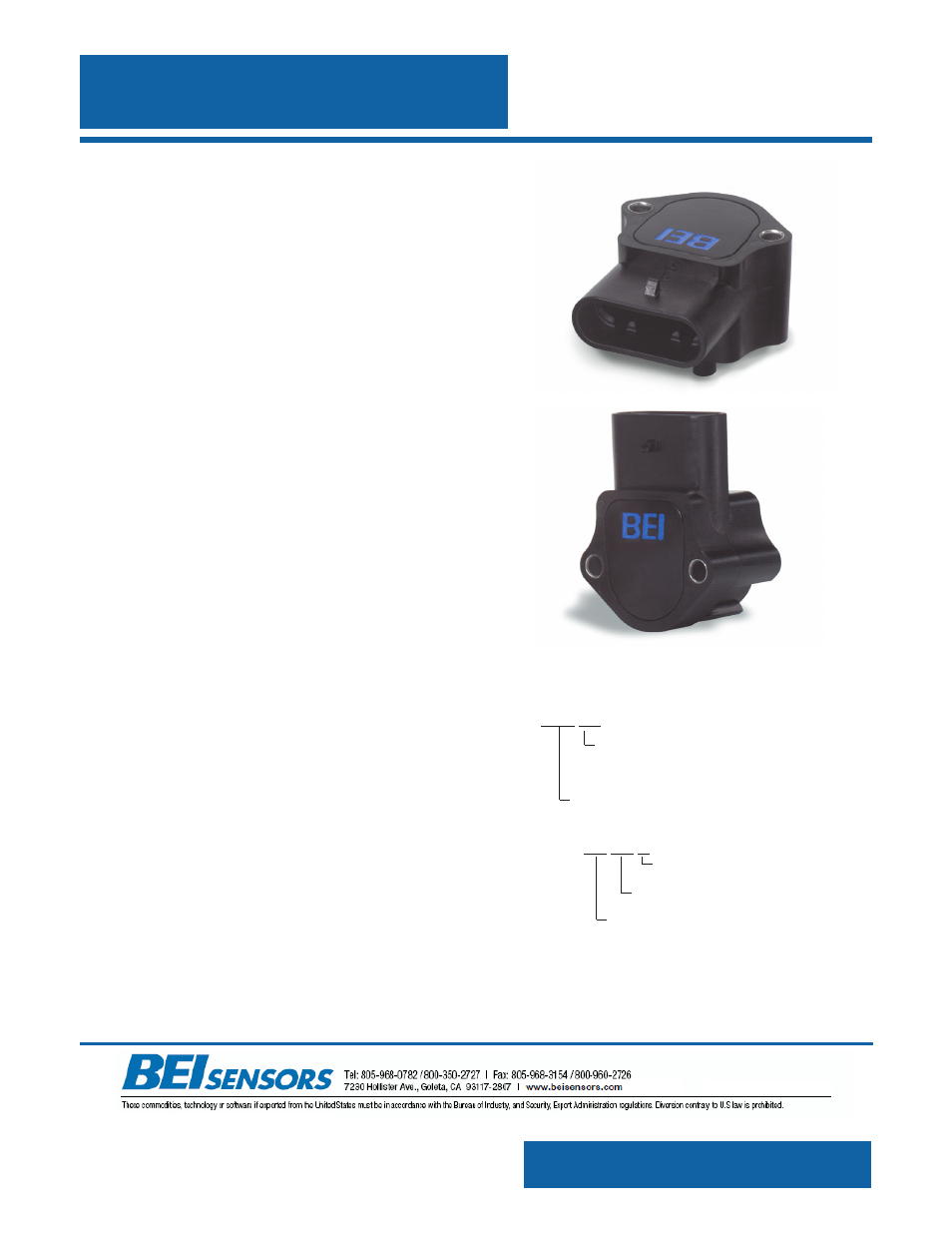

The BEI

Sensors 9360 Series rotary sensor is a non-contacting Hall

effect device with 360° of rotation and dual outputs. This rugged
design is ideally suited for infi nite rotation applications where reli-
ability and durability are a priority. The sensor provides absolute
position at power on and offers two completely redundant outputs.
The packaging is similar to other BEI devices and meets the severe
durability requirements that are typical in off-highway and agricul-
ture requirements. The new sensor incorporates a rotating Neodym-
ium disk magnet that enables the sensing element to remain station-
ary, improving both accuracy and reliability. This combination of
magnet, sensor and sealed packaging offers excellent temperature
stability and corrosion resistance. The sensor can be confi gured for
Analog (voltage) outputs or with a PWM output. These program-
mability features are confi gured at the factory and allow for greater
fl exibility in creating custom limited electrical angle outputs (i.e.
0-20 degrees for full scale) with short turnaround times.

Fully sealed, (meeting and/or exceeding IP66/IP67 standards) the
9360 is impervious to contamination and moisture. An integrally
molded 6-pin connector makes a sealed connection with industry
standard Packard Electric connector.

9360 Series Features

Rotating magnet / fi xed sensor confi guration
Provides improved accuracy and reliability

Fully programmable
The standard sensor provides 0-359.9° electrical degrees.
Multiple outputs with limited electrical angles up to 359.9°
temperature compensation are also available

Compression molded Neodymium magnets
Provide excellent temperature stability and corrosion resistance

Ratiometric analog output or PWM output

Factory programming through connector
Allows for quick turn-around on custom electrical angles

Sealed construction
IP66 / IP67, 6-pin I/O interface to Packard Electric Metri-Pack
Pull-to-Seat 150.2 Series P/N 12162261 or P/N 12162260 connector

Extended temperature range
-40° to +85°C standard, -40° to +125°C available optionally

Extended operating life
Maximum rotational speed limited to 300 RPM

Ordering Information

9360 XXX XX

Temperature

Rating:

Blank = Standard +85°C

HT = +125°C

Requested

Electrical

Angle:

i.e. 090 = ±45° or 120 = ±60°

SAMPLE: 9360 090

Standard

+85°C

90°

(±45˚) Electrical Angle

Infinite 360° Rotation Device

ISO9001 & TS16949 Certifi ed
