BEI Sensors TXM4 User Manual
Txm4

TXM4
MAGNETIC ENCODERS - CANOPEN ABSOLUTE MULTI TURN - TXM4 RANGE
TXM4 is a Ø42mm multiturn encoder with CANopen interface :
Compact and robust design.
Heavy-duty conception : Stainless steel – IP69K
Solid shaft Ø 10 mm version.
Precision sealed bearings.
High temperature performance –30°C to 85°C.
Hall effect technology.
Multiturn encoding based on magnetic pulse counter. No batteries used.
CANopen interface, binary code.
12 bits resolution = 4096 steps / turn.
Number of turns : 12 bits = 4096 turns.
Polarity inversions and surges protections.
High integration SMD technology.

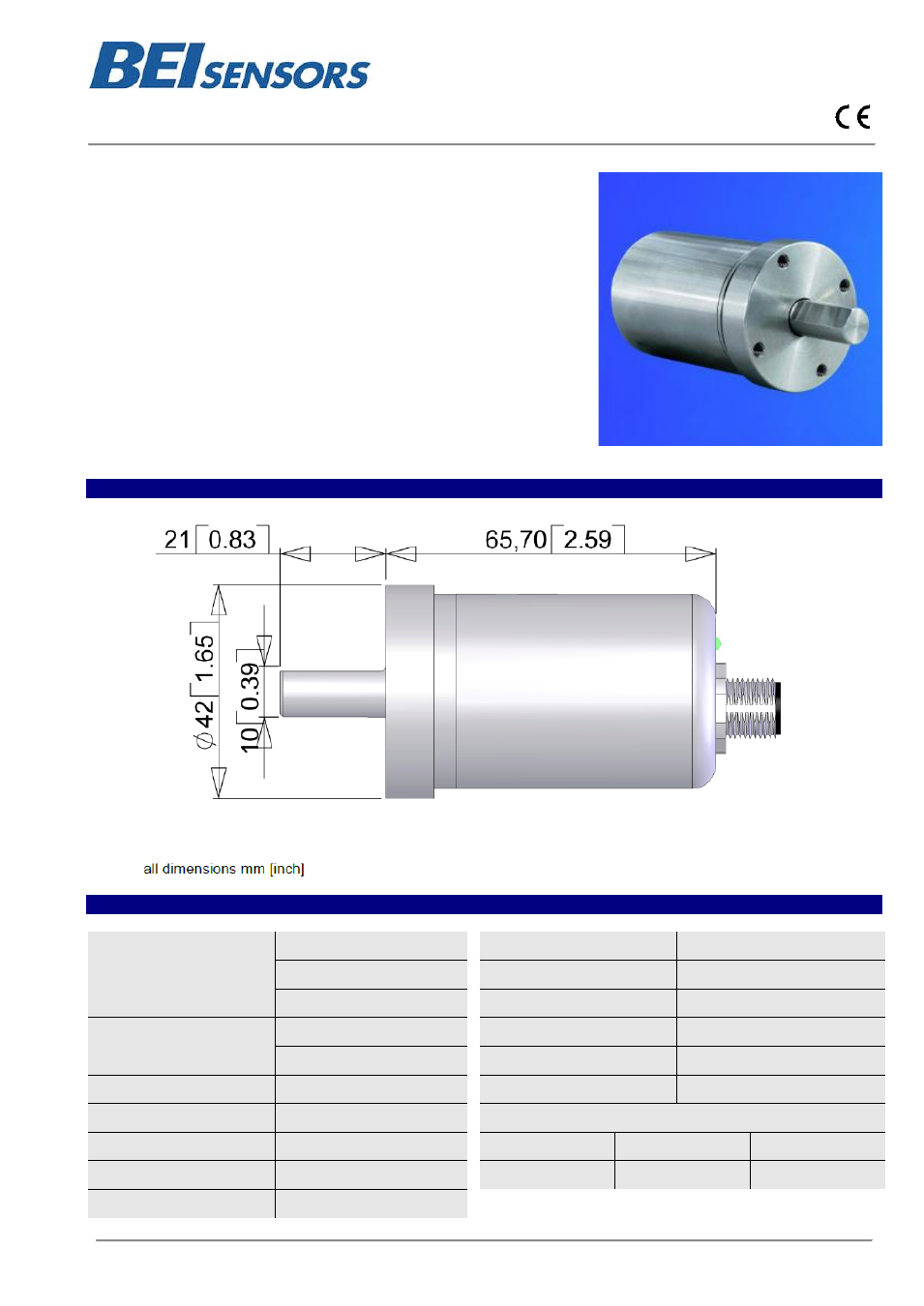

DIMENSIONS TXM4S10 M12 AXIAL
MECHANICAL CHARACTERISTICS
Material
Cover : stainless steel
Vibrations (EN 60068-2-6)
≤ 30 g (10Hz… 1 000Hz)
Body : stainless steel
Weight
350 g
Shaft: stainless steel
Operating temperature
- 30 … + 85°C
Max. shaft loading
Axial : 270 N
Storage temperature
- 30 ... + 85°C
Radial : 270 N
Humidity
98 % without condensation
Shaft Inertia
≤ 30 g.cm²
Protection class (EN 60529)
IP 69K
Torque
≤ 3 N.cm
Lifetime in 10
8
revolutions with F
a
/ F
r
(axial / radial)
RPM (continuous operation)
12 000 rpm
100 N / 100 N
270 N / 270 N
300 N / 300 N
Shock (EN 60068-2-27)
≤ 300 g (half-sine, 6 ms)
200
10
7.6
Shock (EN 60028-2-29)
≤ 30 g (half-sine, 16ms)
Changes possible without further notice 110214
