HHM3

HHM3

BEI Sensors SAS
Espace Européen de l’Entreprise
9, rue de Copenhague
B.P. 70044 Schiltigheim

F 67013 Strasbourg Cedex

Tél

: +33 (0)3 88 20 80 80

Fax

: +33 (0)3 88 20 87 87

Mail :

[email protected]

Web :

www.beisensors.com

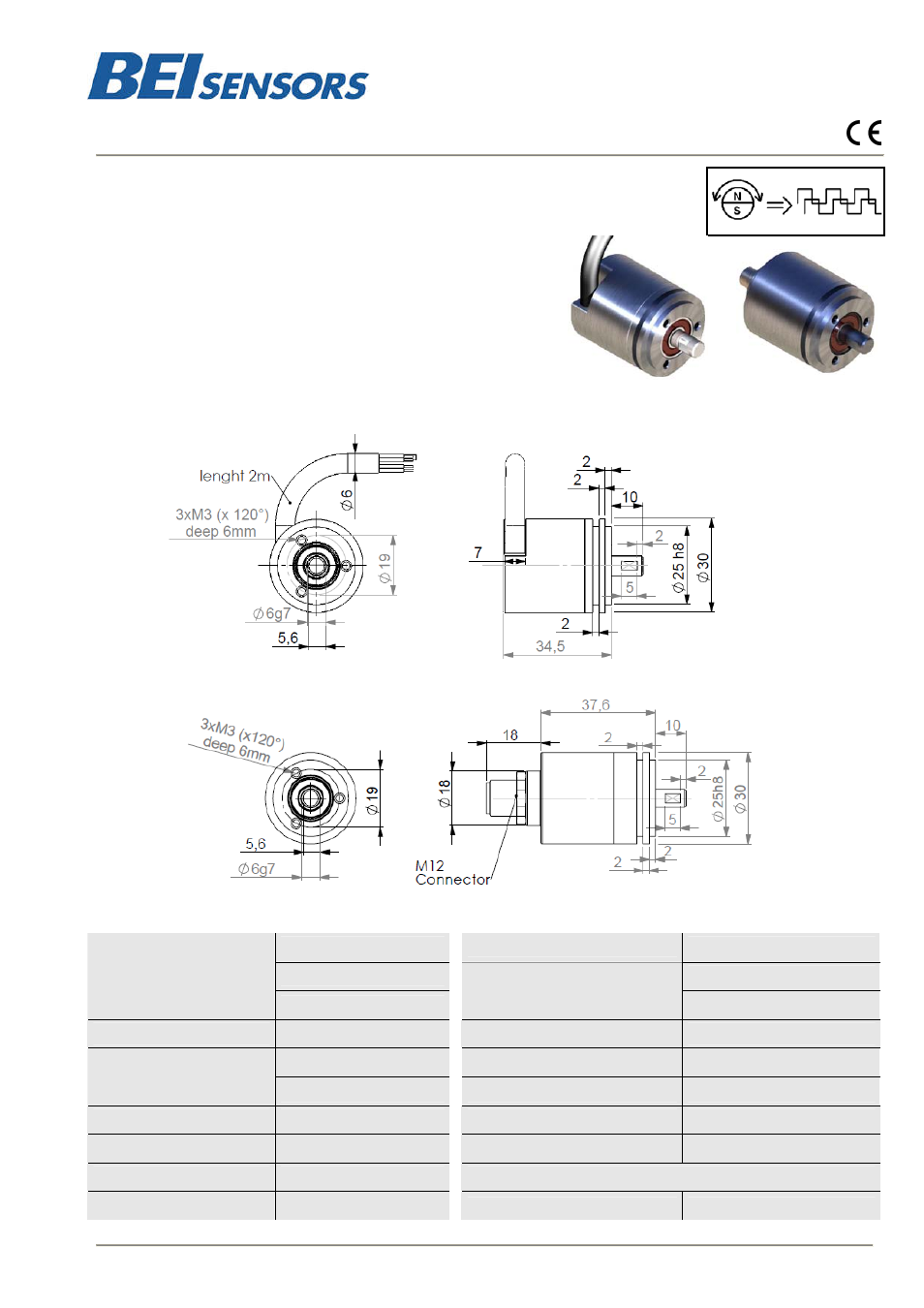

MAGNETIC INCREMENTAL ENCODERS, HHM3 RANGE

MAGNETIC INCREMENTAL ENCODERS, HHM3 RANGE


 With its 30mm size and a 6mm solid shaft, HHM3 encoder

characterizes itself by its strong robustness of the mechanical
and electro-magnetic parts, it’s the most compact really
industrial encoder with a solid shaft.

 Application fields : agriculture, construction, forestry vehicles,

medical applications, solar panels…

 Magnetic technology, contactless.

 Available resolution up to 1024 pulses per revolution.

 Universal supply 5 to 30Vdc available.

 Available in option : Extended temperature range (up to -

40..+125°C), IP67/IP69K…

HHM3 connection G3D (‘’diagonal’’ output’’)

HHM3 connection GMA (axial M12 8 pinouts)

MECHANICAL CHARACTERISTICS

Shaft: stainless steel

Isolation

500Veff

Cover: aluminium

EN 61000-6-4

Material

Body: aluminium

EMC

EN 61000-6-2

Bearings

696 series

Operating temperature

- 40... + 100 °C (at 5Vdc)

Axial : 20 N

Storage temperature

- 40... + 100 °C

Maximal loads

Radial : 50 N

Protection

IP 65

Shaft inertia

 0,1.10

-6

kg.m

2

Shocks (EN60068-2-27)

 2000m.s

-2

(during 6 ms)

Torque

 1.10

-3

N.m

Vibrations (EN60068-2-6)

 200m.s

-2

(55 … 2 000 Hz)

Nominal max. speed

6 000 min

-1

Theoretical mechanical lifetime 10

9

turns (F

axial

/ F

radial

)

Encoder weight (approx.) 0,150 kg

20 N / 50 N

15

Changes possible without further notice V2.0
