BEI Sensors PHM5 Absolute Hollow Shaft Encoder User Manual
Phm5, Absolute multiturn encoder, phm5 range

PHM5
BEI Sensors SAS
Espace Européen de l’Entreprise
9, rue de Copenhague
B.P. 70044 Schiltigheim
F 67013 Strasbourg Cedex
Tél
: +33 (0)3 88 20 80 80
Fax
: +33 (0)3 88 20 87 87
Web :
www.beisensors.com
ABSOLUTE MULTITURN ENCODER, PHM5 RANGE
Solid shaft Ø 6 and Ø 10 mm
Robustness and excellent resistance to shocks / vibrations
High protection level IP65, IP67 option with a sealing flange
High performances in temperature –20°C to +85°C
Isolated SSI interface, clock from 100 to 500 kHz
Universal electronic circuits from 5 to 30Vdc
Protection against short-circuits and inversion of polarity
High resolutions available: 8192 (13 bits) per turn
Turn counting up to 65 536 (16 bits)
2 inputs : DIRECTION and RAZ
Available with incremental channels – 2048 points – 5 to 30 Vdc
Option: push-button on the cover for a encoder reset to a value X

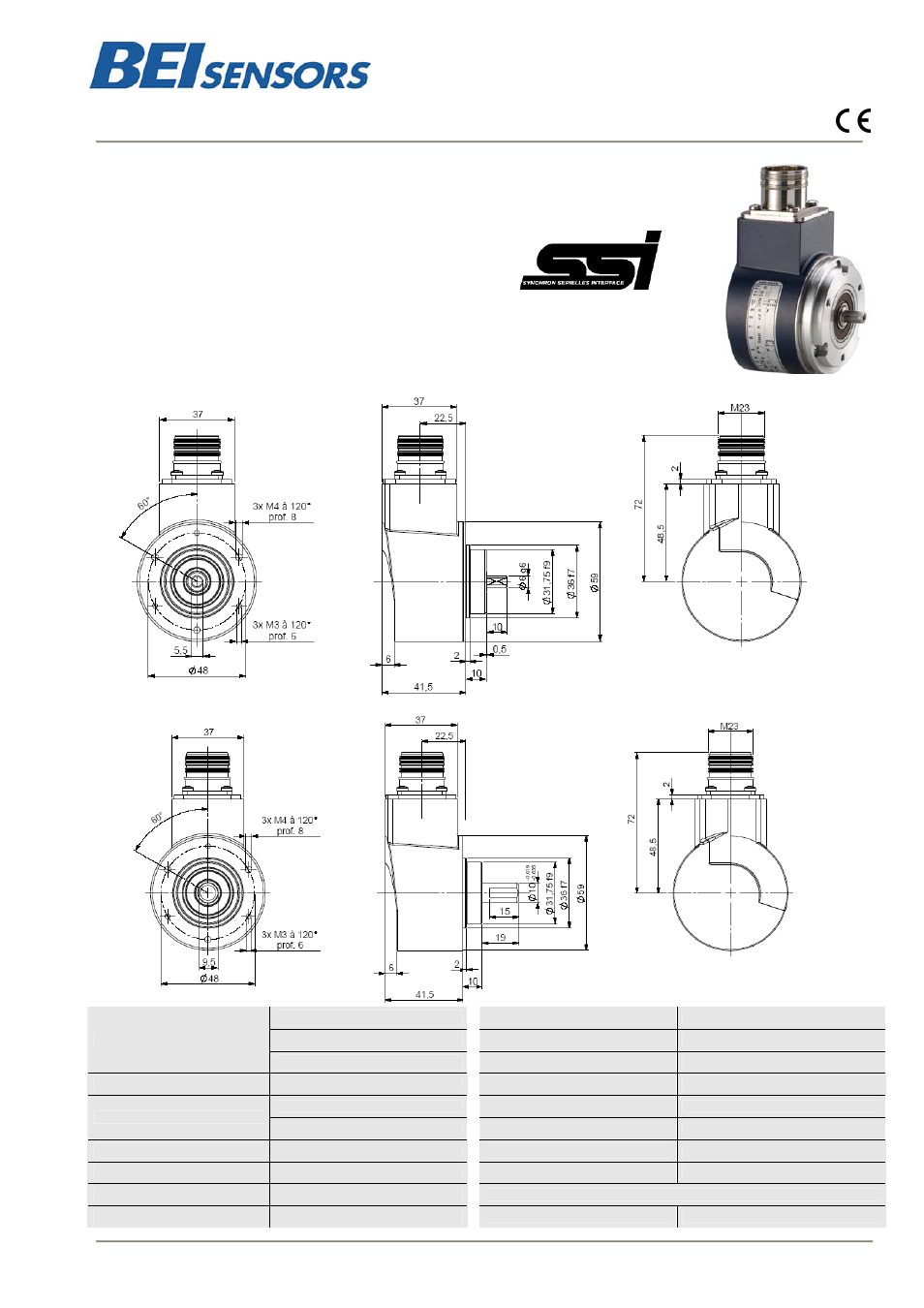

PHM5_06 connection S6/S8R (M23 radial)
PHM5_10 connection S6/S8R (M23 radial)
Cover : treated steel
Shock (EN60068-2-27)
500 m.s
-2
(during 6 ms)
Body: aluminium
Vibration (EN60068-2-6)
100 m.s
-2
(10… 2 000 Hz)
Material
Shaft : stainless steel
EMC
EN 61000-6-4, EN 61000-6-2
Bearings
6 000 serie
Isolation
100V (1 min.)
Axial : 50 N
Weight (connector)
0,520 kg
Maximum load
Radial : 100 N
Operating temperature
- 20 ... + 85 °C (encoder T°)
Shaft inertia
1.10
-6
kg.m
2
Storage temperature
- 20 ... + 85 °C
Torque
4.10
-3
N.m
Protection(EN 60529)
IP 65 (IP67 with flange option)
Permissible max. speed
6 000 min
-1
Theoretical mechanical lifetime 10
9
turns (F
axial
/ F
radial
)
Continuous max. speed
6 000 min
-1
25 N / 50 N : 99
50 N / 100 N : 12
Changes possible without further notice - Version 2.0
