GHU9
INCREMENTAL ENCODERS, GHU9 RANGE

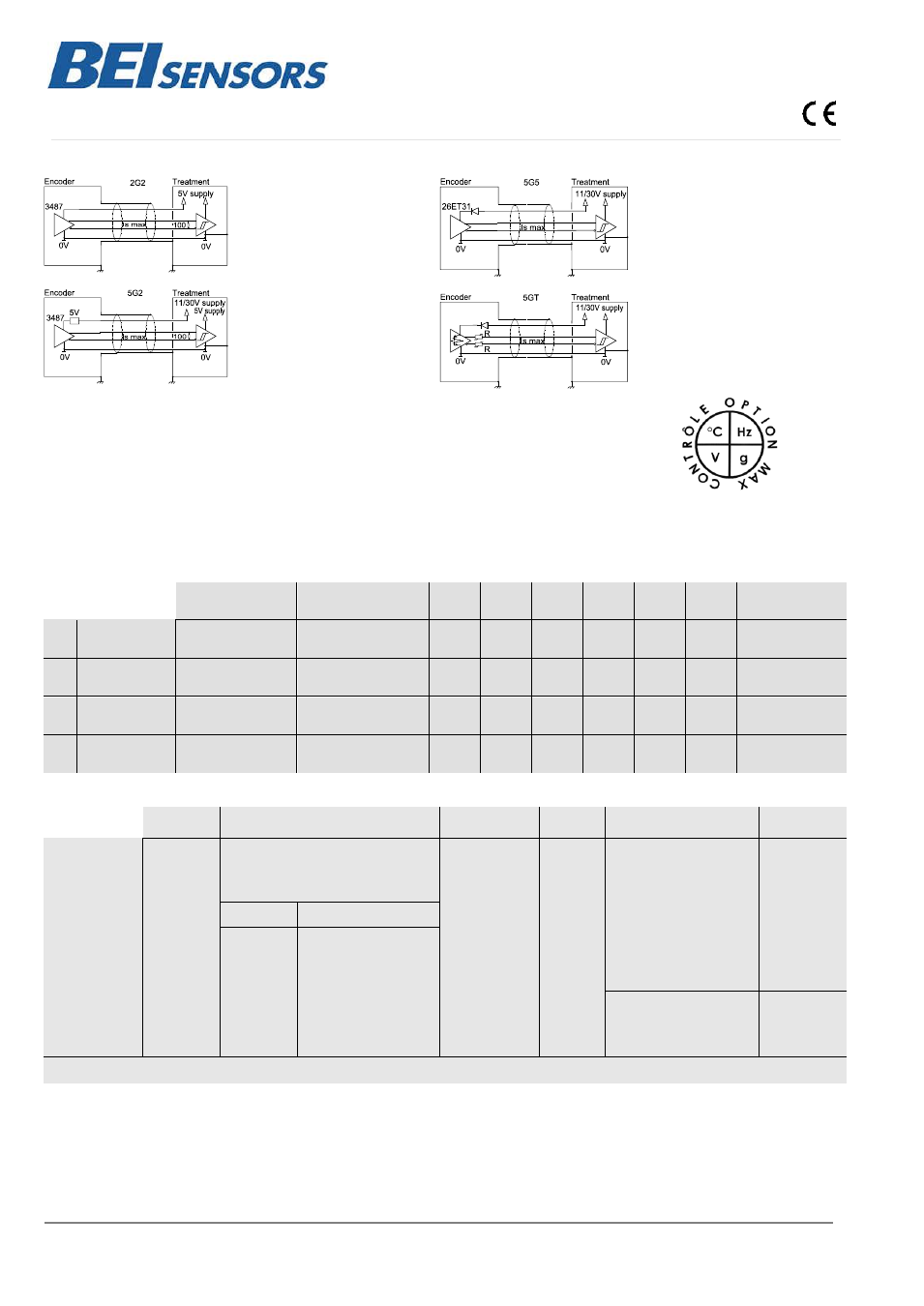

OUTPUT ELECTRONIC / SUPPLY
2G2 electronic (100kHz)
Supply : 5Vdc  10%
Cons. without load : 100mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= 2,5Vdc
5G2 electronic (100kHz)
Supply : 11 to 30Vdc
Cons. without load : 75mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= 2,5Vdc
5G5 electronic (100kHz)
Supply : 11 to 30Vdc
Cons. without load : 75mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= Vcc-3Vdc
5GT electronic, optional (100kHz)
Supply : 11 to 30Vdc
Cons. without load : 75mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= Vcc-2,5Vdc
Electronics 5GT is designed for long and high capacity cables (contact our factory)
Available in option :
- 3G3 electronic, supply between 15 and 30Vdc, push-pull output regulated 12Vdc
- 5GH electronic permits to ‘drive different inputs (plc + display for example)
Protection against short circuits the electronics: 5G5, 5GT, 3G3
Protection against inversion of polarity for all the electronics except 2G2
Option ‘’Max control’’ : the encoder gives on real time its physical environment parameters: shocks and vibrations, too high or too low
temperature, too low or too high supply, quality of the output signals : upon request..
STANDARD CONNECTION
- + A B 0 A/ B/ 0/ Ground
G6
M23 - 12 pins
CW
1 2 3 4 5 6 7 8 connector body
G8
M23 - 12 pins
CCW
10 + 11 2 + 12 8 5 3 1 6 4 connector body
G3
PVC cable 8
wires 8230/020
WH
white
BN
brown
GN
green
YE
yellow
GY
grey
PK
pink
BU
bleu
RD
red
general
shielding
GP PUR cable 12
wires 8230/050
WH white +
WH/GN white /green
BU blue +
BN/GN brown/green
GY
grey
BN
brown
RD
red
PK
pink
GN
green
BK
black
general
shielding
ORDERING REFERENCE (Contact the factory for special versions ex: overspeed switch, electronics, special flanges, connections ...)
Shaft  Available electronic Output signal Resolution Connection
Connection
orientation
GHU9
Cover : zinc
Body alu
GBU9
Cover : zinc
Body: stainless
steel
GXU9
Cover and
body: stainless
steel
30: 30mm
Nota:
reduction
hubs
available
32: 32mm
option
consult us
2G2, 5G2, 5G5, 5GT, 5GH, 3G3
9 : A,A/,B,B/,0,0/
(0, A&B gated)
A : A,A/,B,B/,0,0/
(0, A gated)
N : A,A/,B,B/,0,0/
(0 ungated)
10 000
max
G6: M23 12 pins CW
G5: M23 12 pins CW
G8: M23 12 pins CCW
GT: terminal box
R : radial Supply Output stages
2 : 5Vdc
5 : 11 to
30Vdc
3 : 15 to
30Vdc
G2 : driver 5Vdc RS422
G3 : driver 12Vdc
G5 : push-pull
GT : push-pull 11-30Vdc
transistorised
GH : push-pull 11-30Vdc
150 mA
G3 : PVC cable 8 wires
GP : PUR cable 12 wires
Example:
R020: axial
2m cable
Ex: GHU9 _ 30 // 5 G5 9 // 5 000 // GP R050
Available resolutions : 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16 19 20 21 24 25 26 28 29 30 32 35 36 39 40 43 45 46 48 50 54 56 58
60 62 63 64 66 67 70 72 74 75 76 80 84 86 88 89 90 91 94 96 100 107 110 120 122 123 125 127 128 130 132 135 138 140 147 150
157 159 160 168 169 170 172 175 180 188 191 196 200 201 205 220 222 225 234 240 241 242 245 246 248 250 254 255 256 258 259
267 268 275 283 285 295 300 305 314 315 318 320 330 340 350 360 367 375 378 380 381 388 390 397 400 405 410 424 425 438 443
450 471 480 489 495 500 505 512 515 534 540 550 565 580 600 623 625 628 630 632 635 650 660 700 720 746 750 752 754 800 810
840 860 880 891 900 942 990 1000 1024 1080 1100 1131 1200 1225 1250 1260 1280 1290 1400 1414 1440 1500 1536 1570 1600 1620
1630 1750 1800 1885 2000 2048 2250 2400 2500 2640 3000 3456 3600 3680 3750 4000 4096 4500 4900 5000 7200 9000 10000
Made en FRANCE
Changes possible without further notice - Version 2.0
