DXM5S
OPTICAL INCREMENTAL ENCODERS, DXM5S – STAINLESS STEEL 316 - IP69K

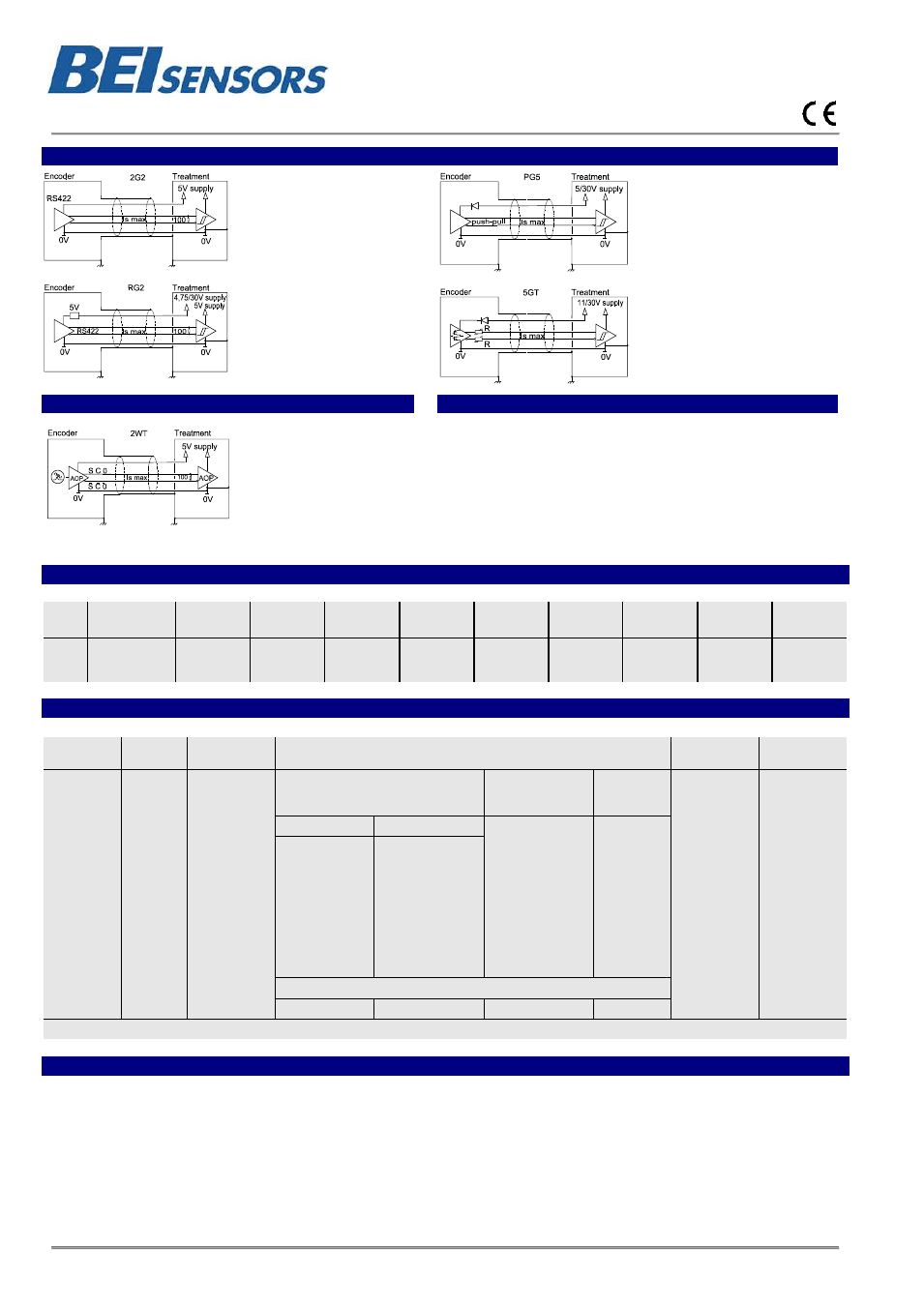

DIGITAL OUTPUT SIGNALS (SQUARE WAVE SIGNALS)
Electronic 2G2 (100°C,300kHz)
Supply : 5Vdc
10%
Cons. without load : 75mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= 4Vdc
Electronic RG2 (100°C,300kHz)
Supply : 4,75 to 30Vdc
Cons. without load : 75mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= 4Vdc
Electronic PG5 (100°C, 300kHz)
Supply : 5 to 30Vdc
Cons. without load : 75mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= Vcc-2,5Vdc
Electronic 5GT (70°C, 120kHz)
Supply : 11 to 30Vdc
Cons. without load : 75mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 1,5Vdc
1 min (Is=20mA) : V
oh
= Vcc-2,5Vdc
SINE WAVE OUTPUT SIGNALS
ELECTRONIC PROTECTIONS
Electronic 2WT (100°C)
Supply : 5Vdc
10%
Cons. without load : 75mA max
Output signals :
1Vpp (peak to peak)
Protection against short circuits of the electronics: 2G2, RG2, PG5,
5GT and 2WT
Protection against reverse polarity for all the electronics except
2G2 and 2WT
Consult us for special electronics : programmable resolution, 5 to 36Vdc, 100mA per channel…
CONNECTIONS
Type
Cable
0Vdc
+Vcc
A
B
0
A/
B/
0/
Ground
G3
PVC cable
8 wires
8230/020
WH
white
BN
brown
GN
green
YE
yellow
GY
grey
PK
pink
BU
blue
RD
red
General
shielding
ORDERING REFERENCE
(Contact the factory for special versions, ex: electronics 5-36V, special flanges, connections…)
Type
Shaft
Mechanics
Digital signals (Square wave)
Cable
Connection
orientation
DXM5S
Optical –
stainless
steel
58mm
encoder
10
10mm
AA
316 stainless
steel
IP69K
Hygienic
design
Electronics : 2G2, PG5, RG2 , 5GT
Output signals
Resolution
G3
PVC cable 8
wires
Example :
A020
axial
cable 2m
Supply
Output stage
9 : A,A/,B,B/,0,0/
(0 gated A & B)
80 000
max
2 : 5Vdc
5 : 11 to
30Vdc
P : 5 to 30Vdc
R :
4.75
to
30Vdc
G2 : driver 5Vdc
RS422
G5 : push-pull
GT : transistorized
push-pull
Sine-wave signals
2: 5Vdc
WT: sine 1Vpp
9: S,S/,C,C/,Z,Z/
2 500 max
Ex:DXM5S
10 /
AA /
R
G2
9 //
08 192 //
G3
A050
AVAILABLE RESOLUTIONS
Available resolutions (100°C electronic)
: 50 60 100 120 125 127 150 180 200 240 250 256 300 314 360 375 400 500 512 600
720 750 768 800 927 1000 1024 1200 1250 1280 1440 1500 1800 2000 2048 2400 2500 3000 3600 4000 4096 5000 6000 7200
8000 8192 10000
Interpolated available resolutions (70°C electronic)
: 1080 2560 2880 3072 4320 5120 7500 5760 9000 10240 10800 12000 12500
12288 14400 15000 16000 16384 18000 20000 20480 24000 25000 28800 30000 32000 32768 36000 40000 40960 43200 48000
49152 50000 57600 60000 64000 65536 80000
Available resolutions sine-wave signals (100°C electronic)
: 250 256 360 500 1024 2500
Nota : The maximal resolution with the 5GT electronic is 5 000 pulses per turn (non available electronic with interpolation).
Made in France
Changes possible without further notice - Version 090608
