A 49 IOM-DPCDPR-A: FEB 2014

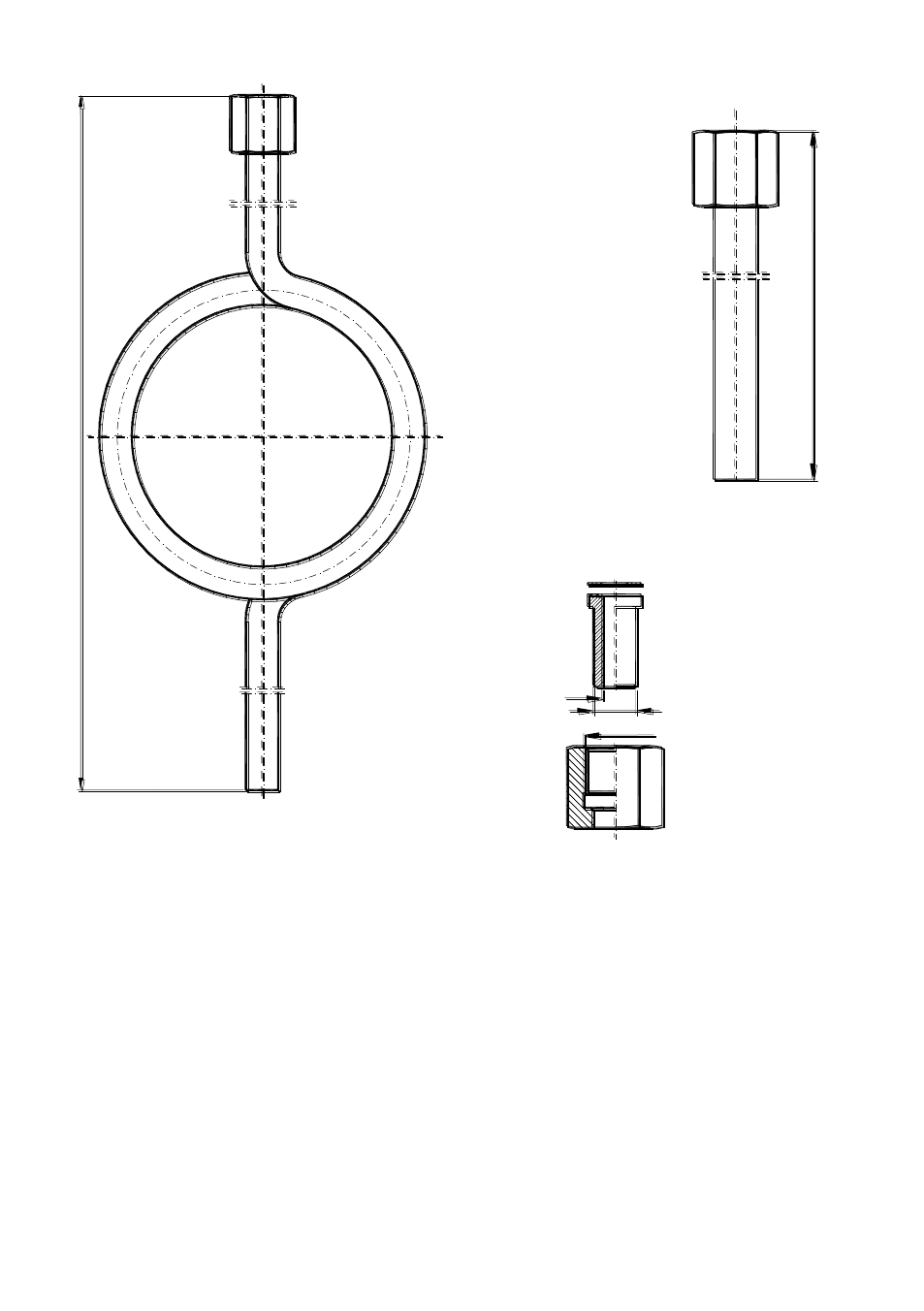

Fig. 21. Additional equipment for fitting of pressure transmitters.
Connector to weld
Marerials:
15HM - galvanized (
SO)
316Lss (
S)
Order code.:
RedSpaw - S (or SO)
M20x1,5 or G1/2"
Siphon tube
P maks. 10 MPa
Temp. maks.
300°C
Marerials:
R-35
Order code:
Siphon tube M20x1,5 or G1/2"
M20x1,5 (G1/2")
Weldable pipe stube
P maks. 10 MPa
Marerials:
ST3S galvanized
Order code:
Pipe stube M20x1,5
or
G1/2"


M20x1,5
or G1/2"
socket
150
M20x1,5
or G1/2"
socket
360
