TS218SU Installation Instructions
6
Assembly And Installation
Install to Wall
Install Main Assembly to Wall - Wood Studs
WARNING: Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component. The wall to which the mount is being attached
may have a maximum drywall thickness of 5/8" (1.6cm).
1. Determine mounting location.
2. Measure 1" above desired center line of display and mark a
hole at desired mounting location on the center of wood
stud. (See Figure 1)
IMPORTANT ! : Use a level to make sure main assembly
(J) is level when mounted to the wall!
IMPORTANT ! : The TS218SU mount is designed to be
mounted to a 2" x 4" wood studs (16" on center) wall.
3. Drill one 1/8" hole at location marked in Step 2. (See Figure
1)

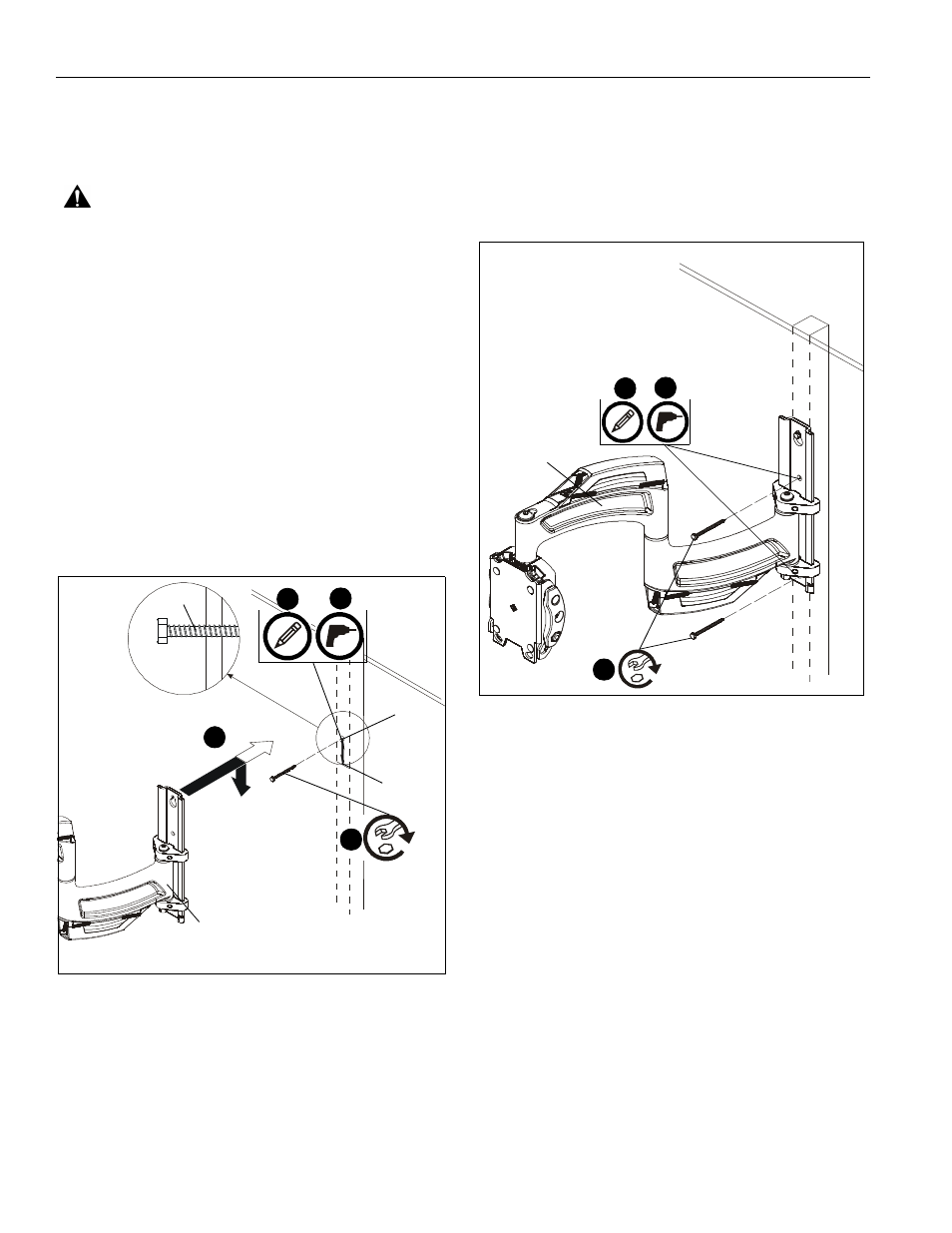

Figure 1
4. Install one 1/4 x 2 1/2" lag bolt (F) into hole, leaving screw
hanging out 1/2" from the wall. (See Figure 1)
5. Hang main assembly (J) onto lag bolt (F) by latching key-
shaped hole over top of bolt. (See Figure 1)
6. Mark two holes at lower mounting hole locations. (See
Figure 2)
7. Remove main assembly (J) from wall.
8. Drill two 1/8" holes at locations marked in Step 6. (See
Figure 2)
9. Hang main assembly (J) back onto wall.
10. Install two 1/4 x 2 1/2" lag bolts (F) into holes drilled in Step
8 to secure mount to wall. (See Figure 2)
11. Tighten all three lag bolts (F) to fully secure mount to wall.
Figure 2
12. Proceed ahead to Display Installation Section on page 8.
(F)
5
1/2"
screen
center
1" above
2 3 1/8"
center
4
(J)
(F) x 2 10
6 8
(J)
