Installation Instructions TS218SU
11

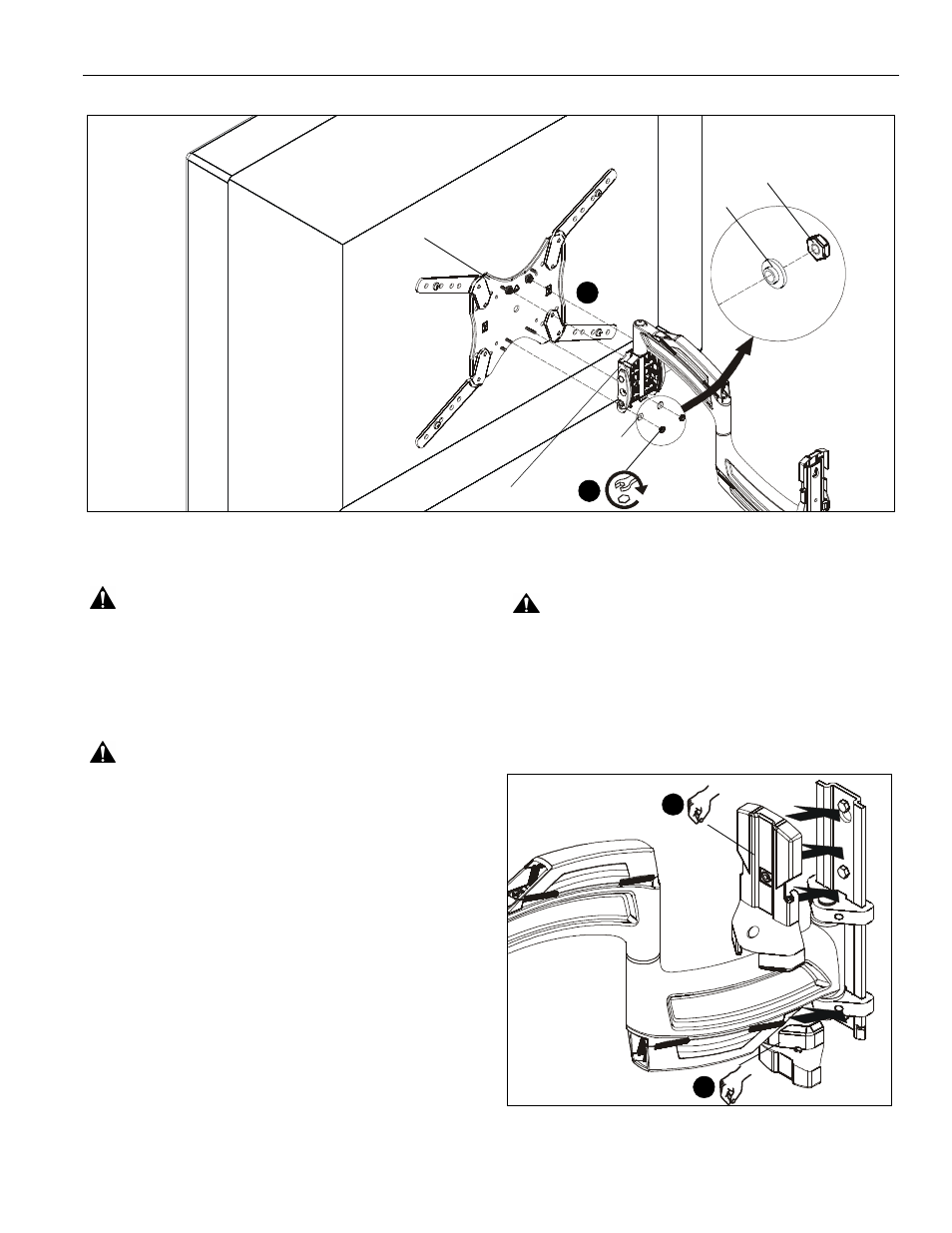

Figure 12
1
2 (N) x 2
(H)
(M) x 2
(M)
(N)
pitch bracket
Install Display to Main Assembly
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached does not exceed 75 lbs (34 kg). Use
with products heavier than the maximum weight indicated
may result in collapse of the mount and its accessories
causing possible injury.
WARNING: Display may be very heavy! Ensure display can
be safely lifted and maneuvered as required to install on wall
plate. Failure to take adequate precautions can result in
serious personal injury or damage to equipment!
1. Hang faceplate (H) to main assembly (J) by placing two
mounting buttons near top of faceplate over two teardrop
grooves on top of main assembly’s pitch bracket. (See
Figure 12)
2. Secure faceplate to pitch bracket by installing two #10-24"
flange nuts (N) and two roll flange spacers (M) onto screws
on faceplate (H). (See Figure 12)
IMPORTANT ! : Make sure roll flange spacers (M) are
installed with the flat side directly against the flange nuts
(N)! (See Inset View on Figure 12)
NOTE: Overtightening nuts will result in limited or no roll
adjustment. If manual roll adjustment is desired, do not
overtighten nuts.
Wall Cover Installation
CAUTION: Wall covers are fragile and may be damaged or
broken if installed with excessive force! Use caution when
installing and removing wall covers.
1. Install top cover (K) onto upper section of wall plate. (See
Figure 13)
2. Install bottom cover (L) onto lower section of wall plate. (See
Figure 13)
Figure 13
1
2
(K)
(L)
