4 - Controls and components

4.1 - Brake pedal

This pedal allows the operator to hold the wheel when fitting the counterweights. It must not be actuated during the
measuring cycle.

4.2 - Automatic distance and diameter gauge

This gauge allows measurement of the distance of the wheel from the machine and the wheel diameter at the point of
application of the counterweight.
It also allows correct positioning of the counterweights on the inside by using the specific function (see

INDICATION

OF EXACT CORRECTION WEIGHT POSITION

)

which allows reading, on the monitor, the position used for the measure-

ment within the rim (For calibration, see

GAUGE CALIBRATION

The gauge can only be used with the counterweight pincers mounted.

4.3 - Automatic width gauge (optional)

Width gauging is through a SONAR device which measures the distance of the wheel without mechanical contact,
merely by closing the guard and each time a valid measurement has been made with gauge

DISTANCE AND DIAME-

TER GAUGE

4.4 - Automatic wheel positioning

At the end of the spin, the wheel is positioned according to the unbalance on the outside or else according to the
static unbalance (when selected).
Accuracy is +/-20 degrees.

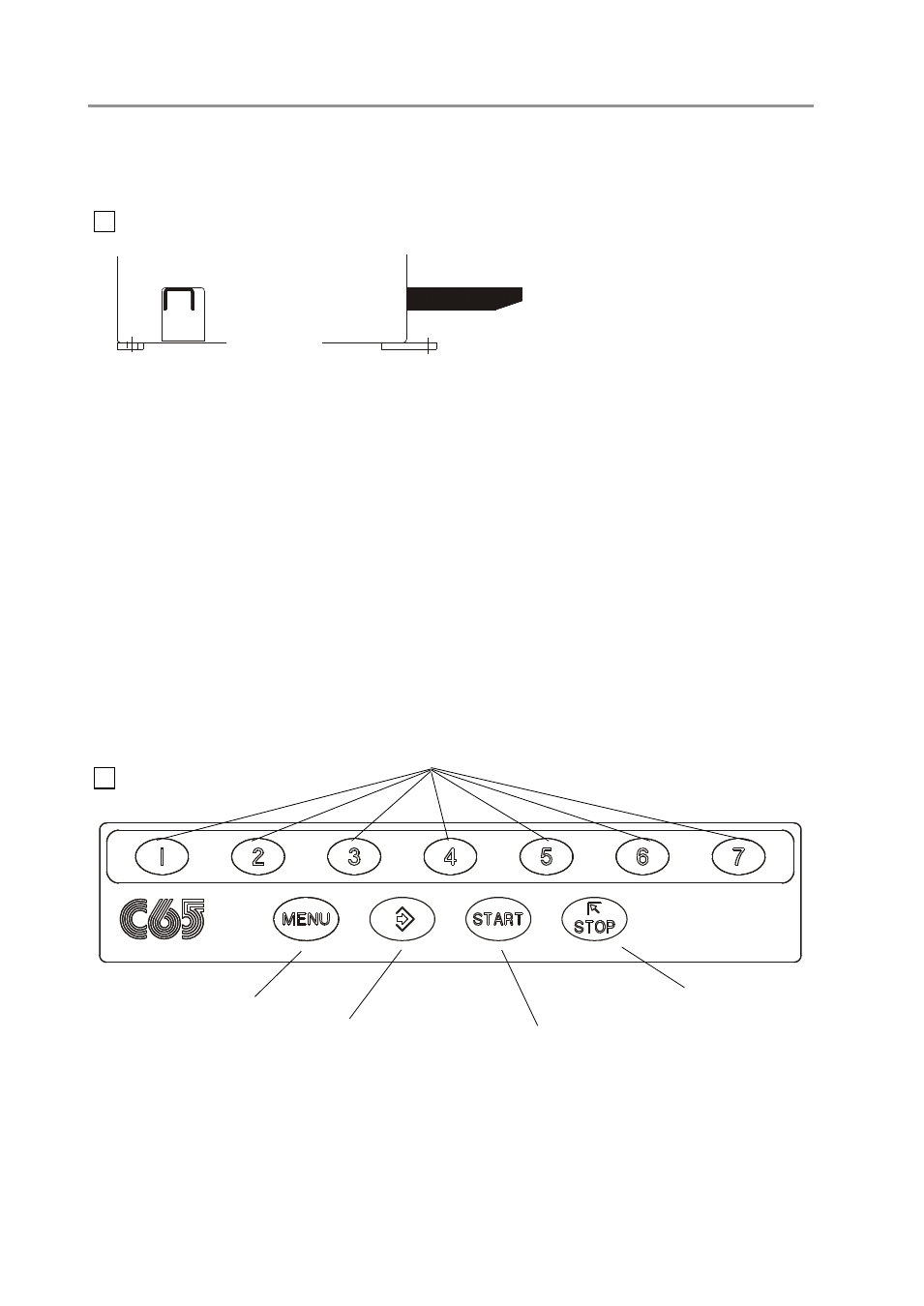

4.5 - Keyboard

N.B.

- Press the buttons with the fingers only: never use the counterweight pincers or other pointed objects.

- When the beep signal is enabled (see section

ACUSTIC SIGNAL), pressing of any push button is

accompanied by a “beep”.

FUNCTION KEYS: they immediately select corresponding function

Selection of special functions

Confirm

Starts measuring cycle

Stops measuring cycle
