- CAUTION -

7 - Special calibrations and functions

(

see

Access diagram)

In order to gain access to the “Reserved Calibrations and functions” it is necessary to enter a password.
Any incorrect operation within the functions described below could impair the operation of the wheel balancing
machine. Unauthorized use will cause cancellation of the warranty on the machine.

7.1 - Enabling of width measurement (optional)

This function enables/disables automatic width measurement with SONAR or contact device: select “OFF” under
normal conditions and “SONAR” if the machine has provision for automatic width measurement.

7.2 - Presetting the customer and user name

The machine can be customized by presetting:
a) The name appearing on the Initial screen (screen-save).
b) The name of 4 different machine users ( USER NAME).
An “ideal” keyboard appears on the monitor with the set of characters available for composition of the wordings.
The Customer’s name consists of three lines, each max. 30 characters.
The USER NAME consists of a wording max. 15 characters.

7.3 - Enabling of eccentricity measurement (option)

Enables/disables measurement of the tyre eccentricity during an unbalance measurement spin.

7.4 - Calibrations

When

is pressed from the Special Functions menu, access is gained to the Calibration menu.

7.4.1- Gauge calibration

Select the gauge to be calibrated and follow the instructions appearing on the monitor.

N.B.:

- In the width SONAR calibration it is necessary to enter one dimension which can be measured as follows:

A -

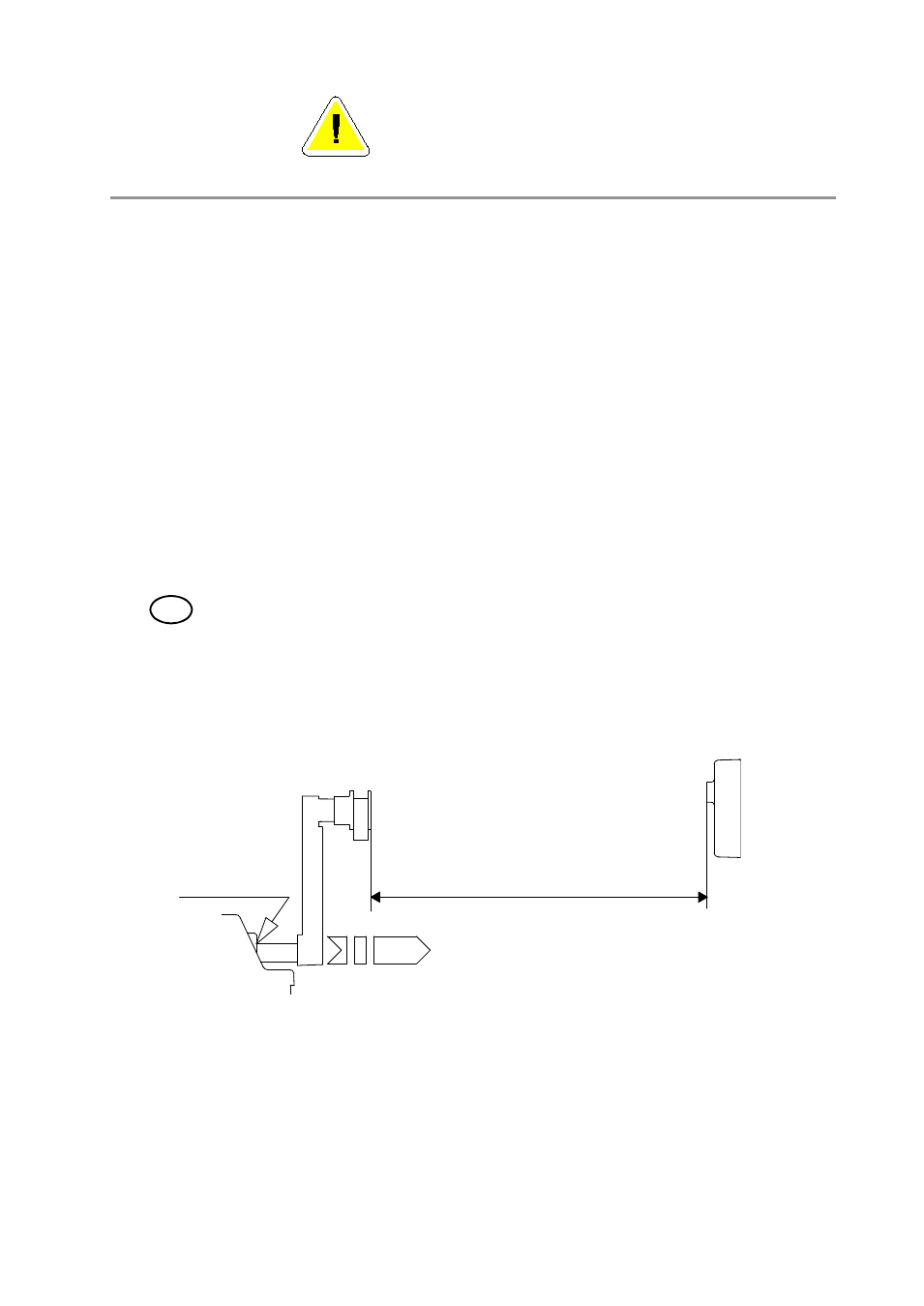

GAUGE “ZERO” DISTANCE

SONAR “ZERO” DISTANCE

7.4.2 - Wheel balancer calibration

For calibration of the machine, proceed as follows:
- Use a medium-sized wheel with steel rim. Example: 6” x 14” (± 1”)
- Preset the wheel dimensions with

GREAT CARE.

- Follow the instructions appearing on the monitor.

7.4.3 - Ambient temperature

Ambient temperature is important for correct use of the sonars. Set the average temperature of the area where the
wheel balancer is installed.

gauge

DISTANCE
