8
Use and maintenance manual Rev. 04-2011
ENGLISH

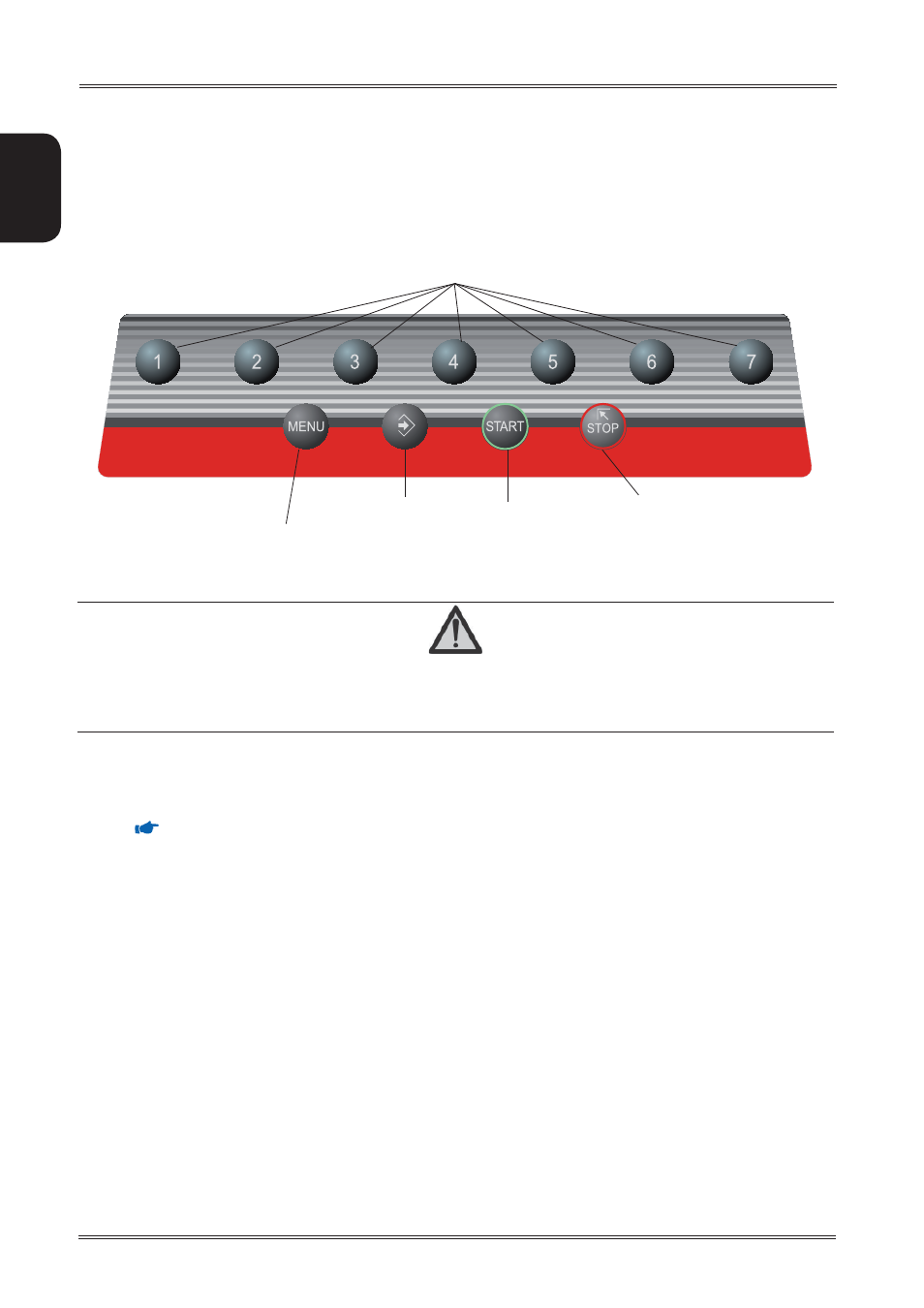

Control panel
CAUTION
P RESS THE BUTTONS WITH YOUR FINGERS .
N EVER USE THE COUNTERWEIGHT GRIPPERS OR OTHER POINTED OBJECTS !
T HE TFT MONITOR IS NOT A TOUCH SCREEN TYPE .
4.1 AUTOMATIC DISTANCE AND DIAMETER GAUGE
This gauge allows measurement of the distance of the wheel from the machine and the wheel diameter at the point of appli-
cation of the counterweight. It also allows correct positioning of the counterweights on the inside rim by using the specifi c
function (
INDICATION OF EXACT CORRECTION WEIGHT POSITION ) which allows reading, on the monitor, the position
used for the measurement within the rim (for calibration, see the corresponding section).
4. Control panel and components
FUNCTION KEYS: they directly select the function on screen
Starts measuring
cycle
Selection of special
function
Confi rm
Stops machine
cycle
