For use in plywood we recommend a two flute, carbide tipped bit. This leaves a clean
cut and offers economically longer bit life.

The pilot hole is made with a
9
/
64
” drill bit, Part # B02964 , which comes with the machine.
Also available are a
7
/
64
” and
3
/
16
” size drill bit.

Feel free to contact your local Castle Dealer or our Parts Department TOLL FREE at
800-282-8338 for information and pricing on tooling and accessory products for your
TSM-35.

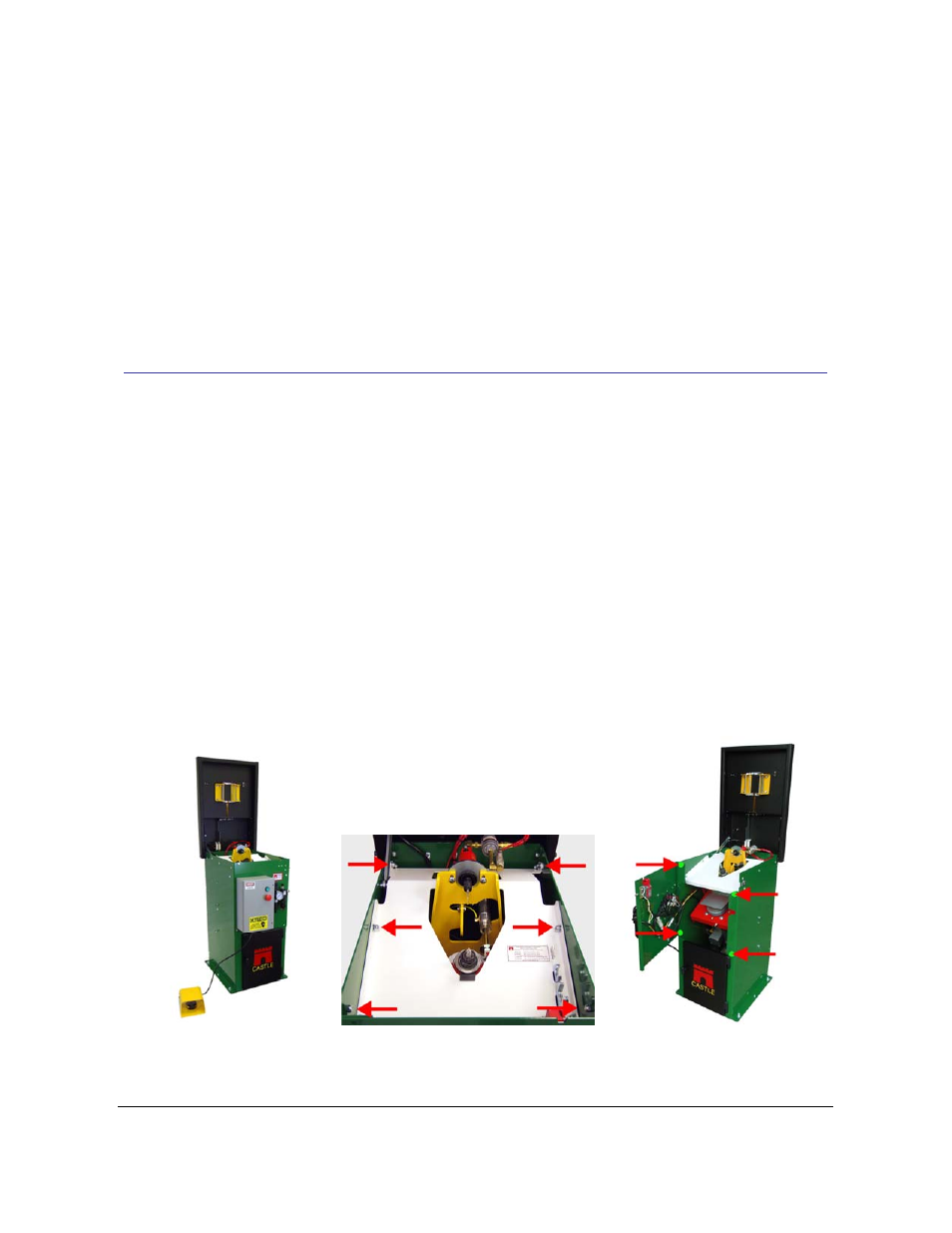

7.3 Swing Front Access: How to open your machine
Opening the front of your machine allows direct access to service areas for maintenance.
Please take the following steps to open your machine correctly.
1. Lockout power and disconnect air.
2. Open the top of your machine.
3. Loosen the six nuts on the sides of the white safety plate. (7/16 wrench)
4. Remove the door at the bottom of the machine by lifting up on hinges.
5. Remove the four bolts that secure the front panel.
6. Pull firmly from the right side of the door to swing the front panel open.
2 3 5
CLOSING the front panel: Ensure that all bolts are in place prior to tightening.
