CASTLE, INC TSM-35 OWNERS MANUAL V1.2 Page 27 of 33

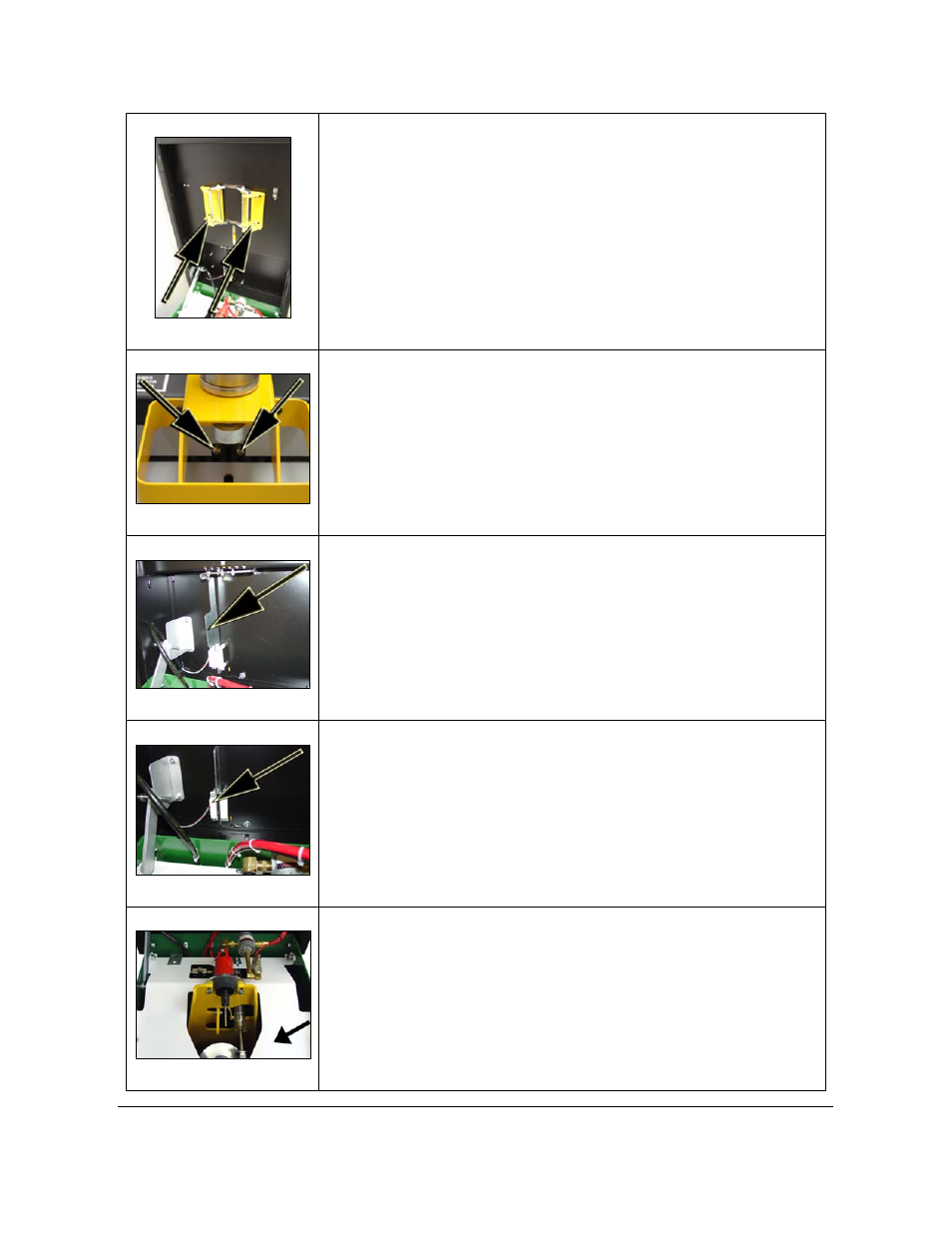

Indexing Brackets:
The Indexing Brackets are located on the underside of the Case
Top. The Indexing Brackets are used for quickly locating a pocket
from the edge of the material. This is ideal for indexing face frame
stock left and right for maximum productivity.
Safety Buttons:
Two small, silver/black button head screws project from the front of
the machine under the Clamp Guard. The Safety Buttons push the
Safety Blade, which then activates the Safety Switch, allowing the
machine to cycle.
Safety Blade:
The Safety Blade is an L-shaped, galvanized part mounted to the
underside of the Case Top. The Safety Blade activates the
magnetic Safety Switch, allowing the machine to cycle.
Safety Switch:
This magnetic proximity switch is mounted far back on the
underside of the Case Top. The Safety Switch is activated when
the Safety Buttons are depressed by a piece of stock.
Safety Pallet:
The Safety Pallet is the white sheet metal fixture under the Case
Top with a slight bend in the middle. The pallet is what holds the
top of the machine together and anchors the Drive Cylinders for the
Drill and Router Carriages.
