6 Definition and Description of Parts

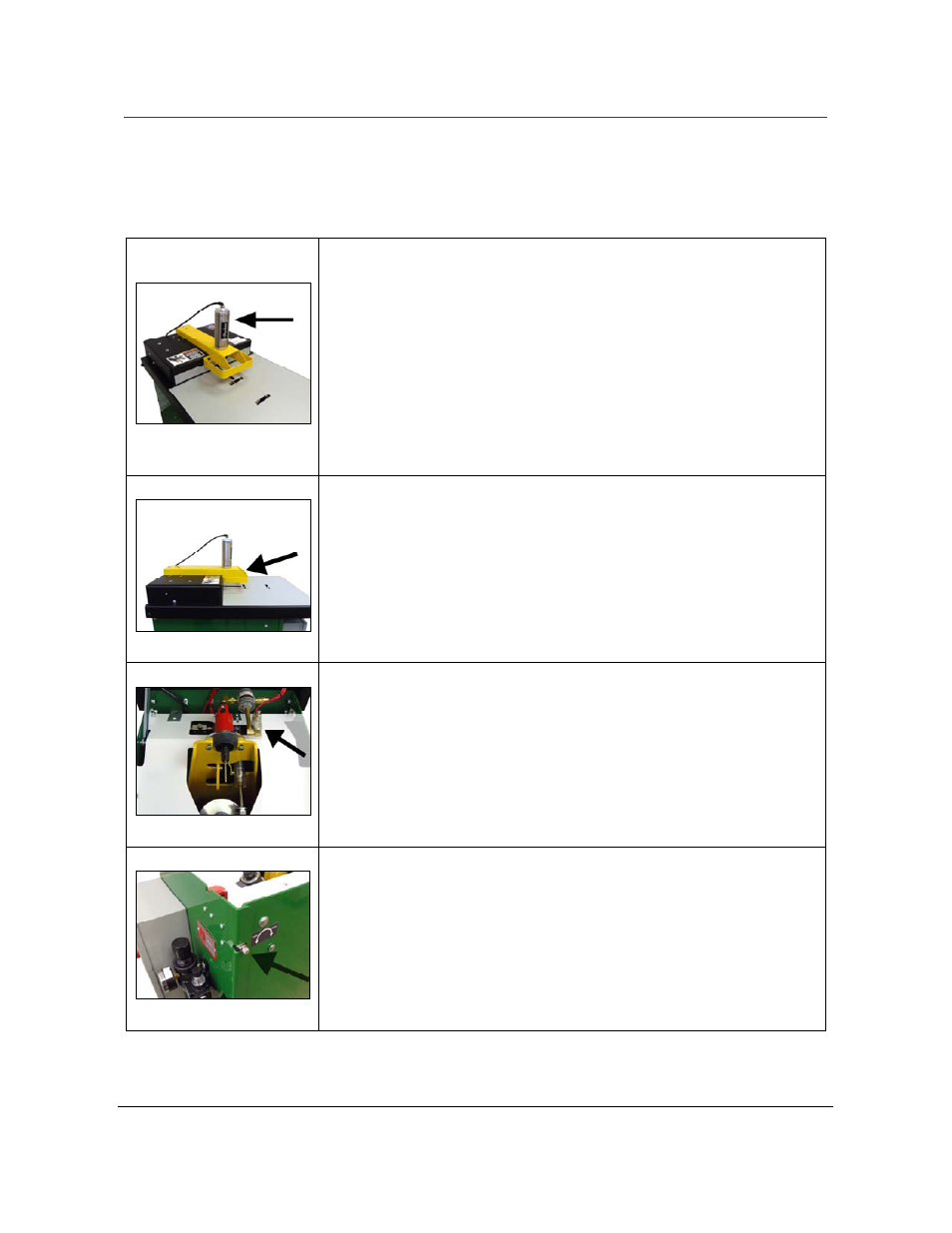

Clamp Cylinder:
The large cylinder on the top of the machine acts as a clamp to
hold the work safely in place during operation. This is a single
acting, spring return, pneumatic cylinder with a padded foot on the
end of the cylinder rod. The clamping force exerted is directly
proportional to the amount of air pressure measured at the
machine’s regulator. The Clamp Cylinder is secured by the Clamp
Guard.
Clamp Guard:
The yellow metal Clamp Guard on top of the machine serves to
secure the Clamp Cylinder and to safeguard the operator from the
clamping and pocket cutting operation.
Drill Delay Valve:
This is the flow control valve located under the Case Top and is
plumbed to the right of the Sioux air drill. This valve controls how
fast air is released from the pilot valve; the slower the air is
released, the longer the drill bit will spin after the drill has cycled.
Router Feed Speed:
Located on the top right corner of the machine below the Case
Top. The Router Feed Speed valve controls how fast the machine
routs a pocket.
