66 Appendices
PC Connection

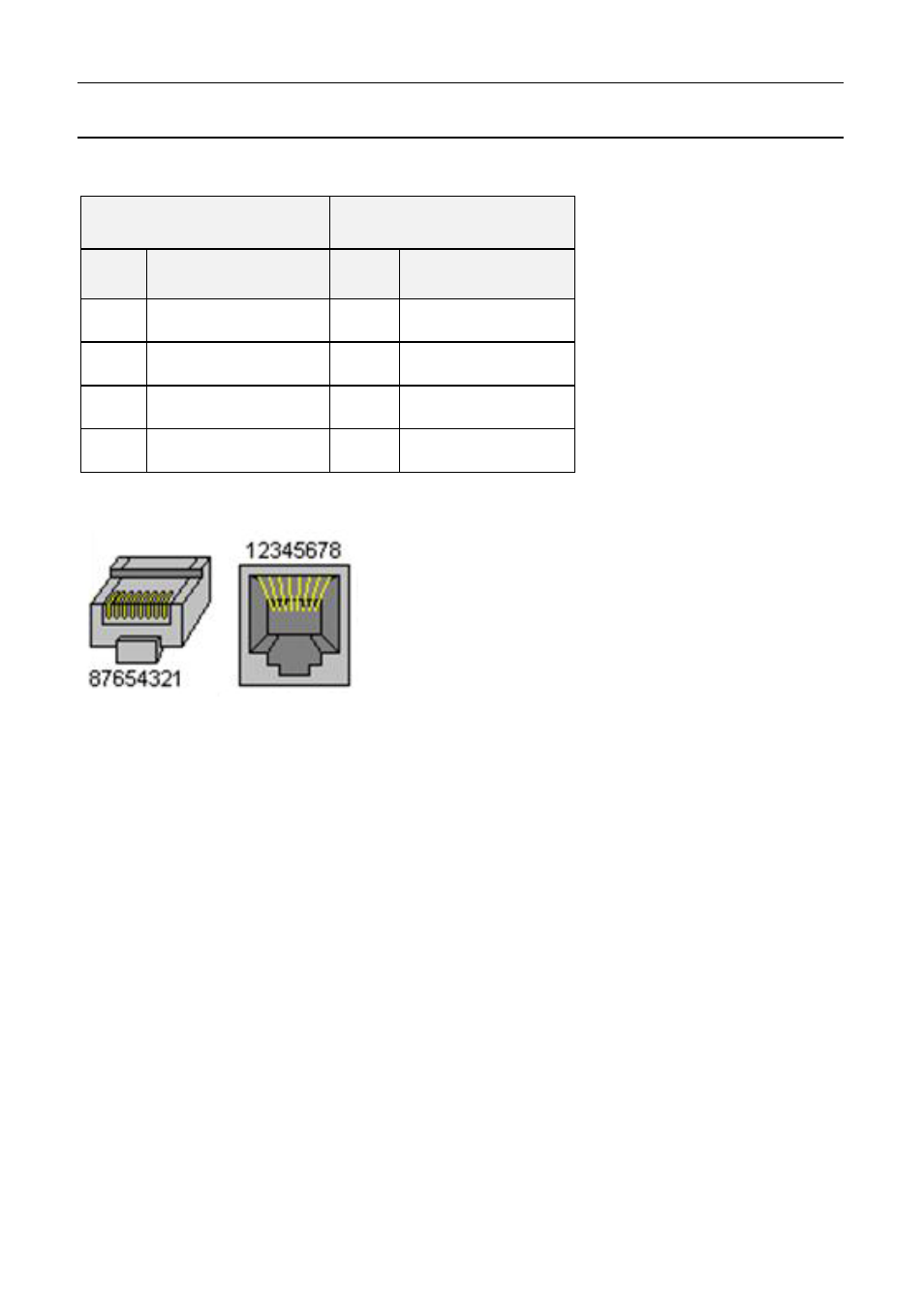

Ethernet Wiring Schematic:
CDL3
Ethernet Connector
Pin
Function
Pin
Function
11
Ethernet RX+
1
Ethernet TX+
10
Ethernet RX–
2
Ethernet TX–
2
Ethernet TX+
3
Ethernet RX+
1
Ethernet TX–
6
Ethernet RX–
Pin numbering
Plug Socket
Wire
CAT5 UTP Ethernet cable
Cable
An Ethernet RJ45 socket, connecting to a standard Ethernet cable, is
provided on:
• #62202 CDL3 loom
• #61131 Ethernet cable, unterminated, 2 metre
