BARSKA Microscope - Manual (Page 3)

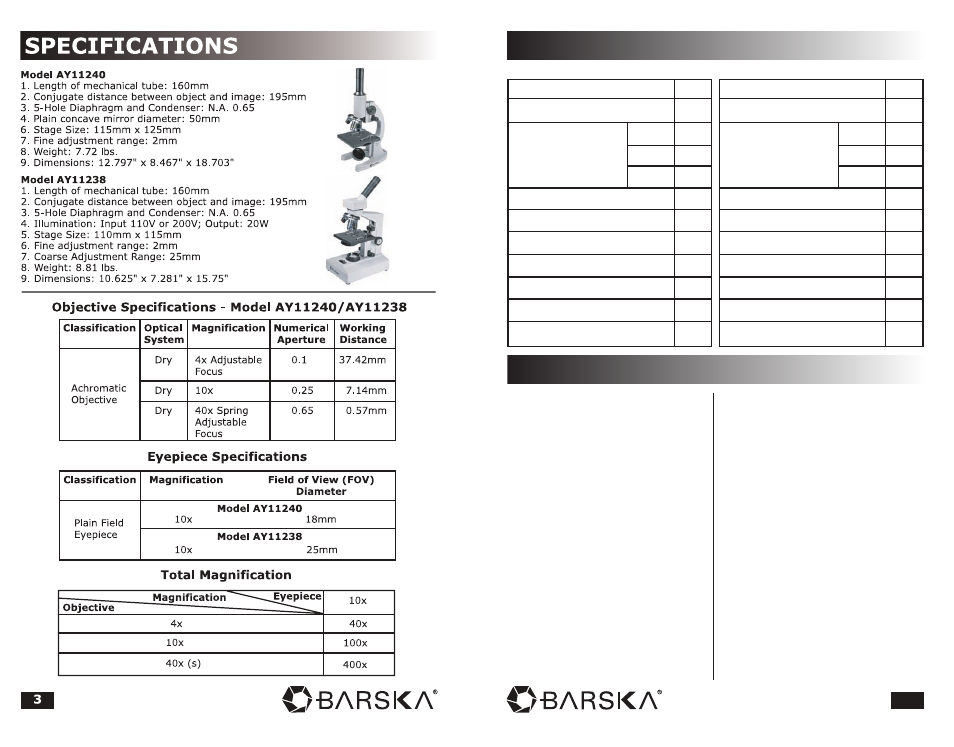

4
PARTS LIST
OPERATION
1. Remove components from package.
identify all parts before assembling.
2. Attach 4x, 10x and 40x objectives
to revolving turret.
3. Place the specimen on the stage and
secure with spring clips. NOTE: The
cover glass must face upward (the
thinner glass is the cover glass),
otherwise when the 40x objective is
used the specimen cannot be
observed. Observation is best when
the thickness of the cover glass is
0.1-1.1mm and the cover glass is
0.17mm.
4. Adjust the stand to an angle that
provides comfortable observation.
5. Rotate and adjust concave mirror to
light the field of view. NOTE: Do not
reflect the Sun with the mirror.
This can cause serious eye injury
or permanent eye damage.
6. Observe the specimen using the
lowest magnification objective first.
The 4x objective provides a larger
field of view to search specimen.
1. Remove components from package.
identify all parts before assembling.
2. Attach 4x, 10x and 40x objectives
to revolving turret. 3. Place the
specimen on the stage and
secure with spring clips. NOTE: The
cover glass must face upward (the
thinner glass is the cover glass),
otherwise when the 40x objective is
used the specimen cannot be
observed. Observation is best when
the thickness of the cover glass is
0.1-1.1mm and the cover glass is
0.17mm.
4. Plug power cord into an electrical
outlet. Turn microscope
lamp ON.
5. Observe the specimen using the
lowest magnification objective
first. The 4x objective provides a
larger field of view to search
specimen.
Name
Model AY11240
Model AY11240 Model AY11238
Model AY11238
Qty
Microscope Stand
Achromatic
Objective
4x
1
Plain Concave Mirror 1
Plastic Dust Cover 1
10x Wide Field Eyepiece 1
Lens Cleaning Tissue 1
Specification 1
Inspection Certificate 1
Packing List 1
1
10x 1
40x (s) 1
Name Qty
Microscope Stand
Achromatic
Objective
4x
1
10x Wide Field Eyepiece 1
Plastic Dust Cover 1
Spare Bulb 1
Lens Cleaning Tissue 1
Specification 1
Inspection Certificate 1
Packing List 1
1
10x 1
40x (s) 1
