ANCHOR MASTER
36 Power, 90080 Telescope

5

HOW TO ASSEMBLE YOUR SCOPE:

Before, you begin to assemble your scope, you will
need to have a Phillips-head screwdriver and a
Crescent wrench. *NOTE* Please be careful not to
scratch your scope.
1. Place the optical tube and arc mount on its side.
2. Attach the legs of the tripod at the base of the mount.
3. Carefully slide one of the leg attachments shaft through
the top of the attached leg through the holes of the
mount. Make sure that the support tray brackets
are facing up.
4. Gently stand the scope and tripod, slowly spread the
legs of the tripod.
5. With the shining side of the support tray facing up,
screw in its brackets.

Make sure to tighten all screws and nuts. Your scope is
now assembled and ready to be used.

HOW TO MOUNT THE FINDER SCOPE

1. Attach the 2 mounting rings to the optical tube with 4

mounting screws.
2. Center the fi nder scope within the mounting rings

using 6 mounting screws

HOW TO USE YOU SCOPE:

Start by loosening the lock and levers and gently guide
the scope to your desired position.
1. Once it’s at the position that you want, tighten the locks
and levers.
2. Point the objective lens to an object and look through
the eyepiece.
3. With slow and tiny motions, rotate the focus knob
slowly, until your view of the object is sharp and
in focus.

HOW TO TAKE CARE OF YOUR SCOPE:

1. When wiping the lenses, use a soft lens cloth.
2. To remove any remaining dirt or smudges, add
one or two drops of isopropyl alcohol to the cloth,
then wipe gently.
3. Store your scope in a moisture-free area.

Parts included in package:

Parts included in package:

Optical tube with mount attached

1 unit

Mahogany wood tripod legs

3 units

Acorn nuts

3 pcs

Support tray

1 unit

Washers and bolts

3 sets

Mounting Screws 10 pcs
Mounting Rings 2 pcs

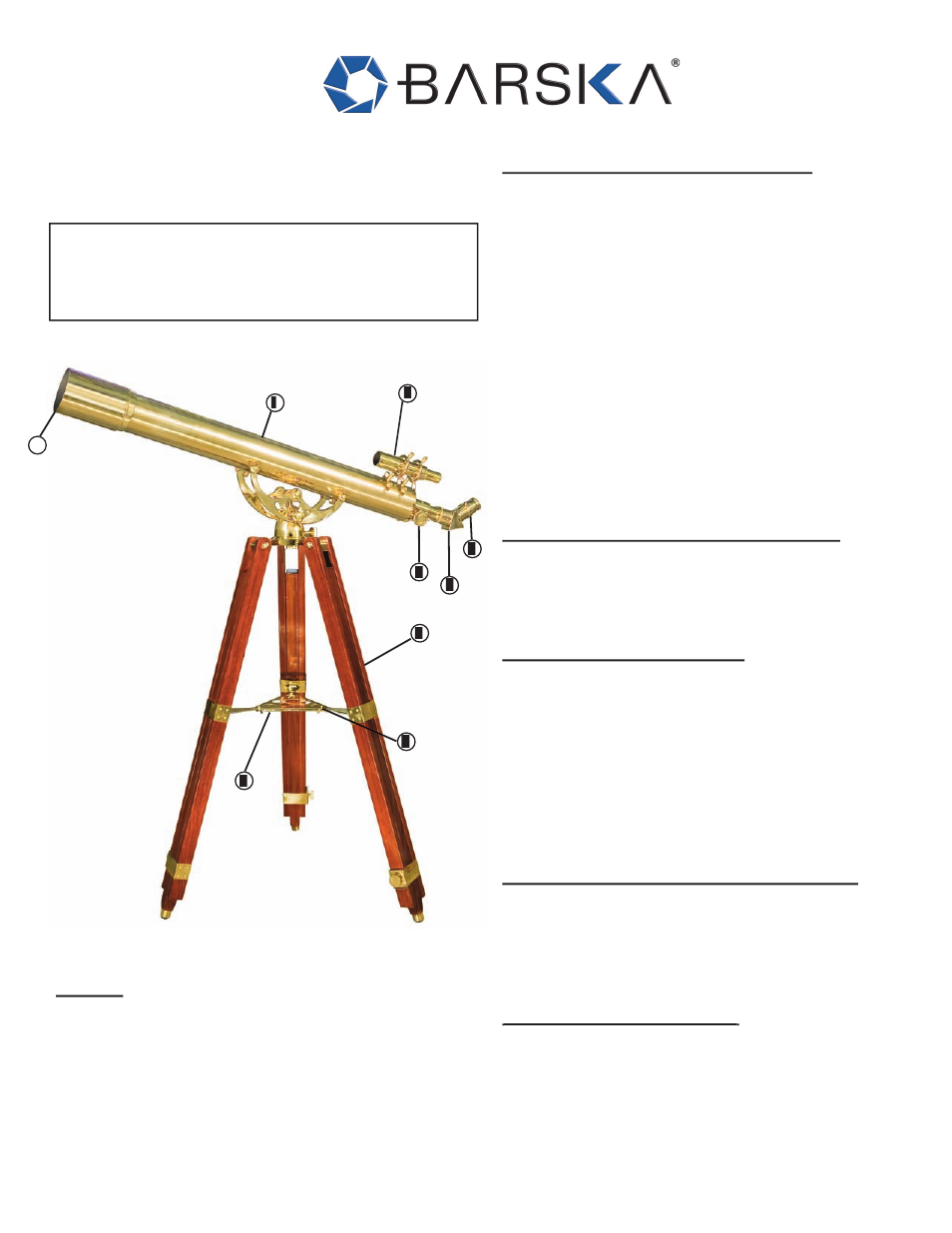

PARTS

1. Optical tube with arc mount attached
2. Mahogany wood tripod
3. Support tray
4. Lock and levers
5. Objective Lens
6. Eyepiece
7. Focus Knob
8. Finder Scope
9. Image diagonal

**IMPORTANT**
NEVER ATTEMPT TO CLEAN YOUR SCOPE INTERNALLY OR
TRY TO TAKE IT APART. DO NOT LOOK DIRECTLY AT THE
SUN WITH THE SCOPE AS IT WILL CAUSE DAMAGE TO
YOUR EYE.
