Bray 7000_8000 Series - Manual (Page 8)

Installation and Maintenance Manual
Series 7000 and 8000 Ball Valves
Date: August 2011 / Page 8 of 9
®
A Subsidiary of BRAY INTERNATIONAL, Inc.
FLOW-TEK, Inc. Tel: 832.912.2300 © 2011 Flow-Tek, Inc.
8323 N. Eldridge Pkwy #100 Fax: 832.912.2301
Houston, Texas 77041 www.flow-tek.com
6
6
2
1
11
12
13
10
5
27
25B
25A
3
2
9
4A
14
11
15
4B
4A
4B
9
16
17
20
21
22
30

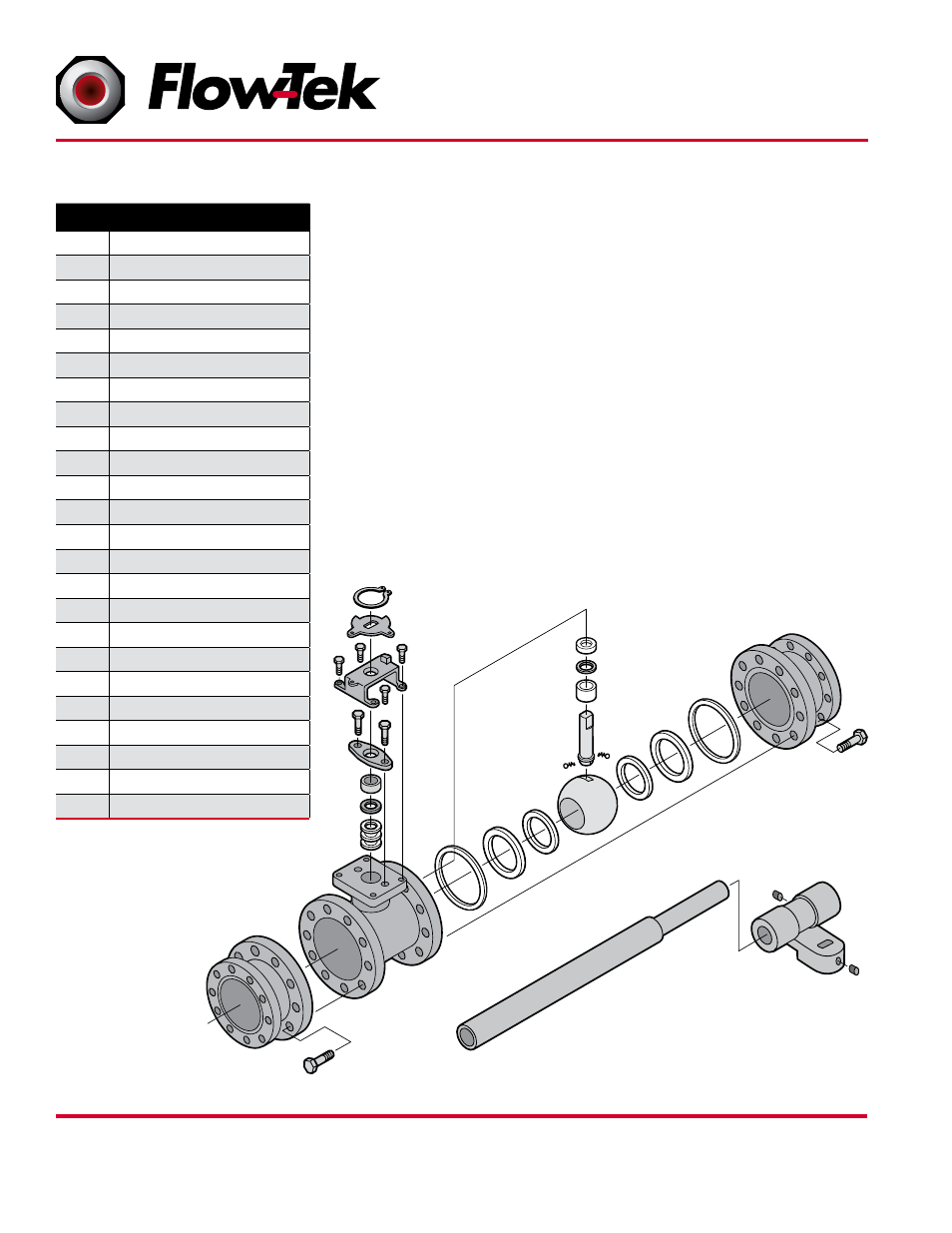

COMPONENTS
Item Name
1 BODY
2 END CAP
3 BALL
4A SEAT
4B SEAT SUPPORT
5 STEM
6* BODY GASKET
9 BODY SCREW
10 ANT-STATIC
11A* WASHER PROTECTOR
11B* PACKING PROTECTOR
12 THRUST WASHER
13 BEARING SLEEVE *
14* STEM PACKING
15 PACKING GLAND SLEEVE
16 PACKING GLAND
17 GLAND BOLTS
20 HOUSING
21 HOUSING SCREWS
22
TRAVEL STOP
25A LEVER
25B HANDLE JUCTION HEAD
27 HANDLE BOLT
30 SNAP RING
