Installation and Maintenance Manual
Series 7000 and 8000 Ball Valves
Date: August 2011 / Page 7 of 9
®
A Subsidiary of BRAY INTERNATIONAL, Inc.
FLOW-TEK, Inc. Tel: 832.912.2300 © 2011 Flow-Tek, Inc.
8323 N. Eldridge Pkwy #100 Fax: 832.912.2301
Houston, Texas 77041 www.flow-tek.com

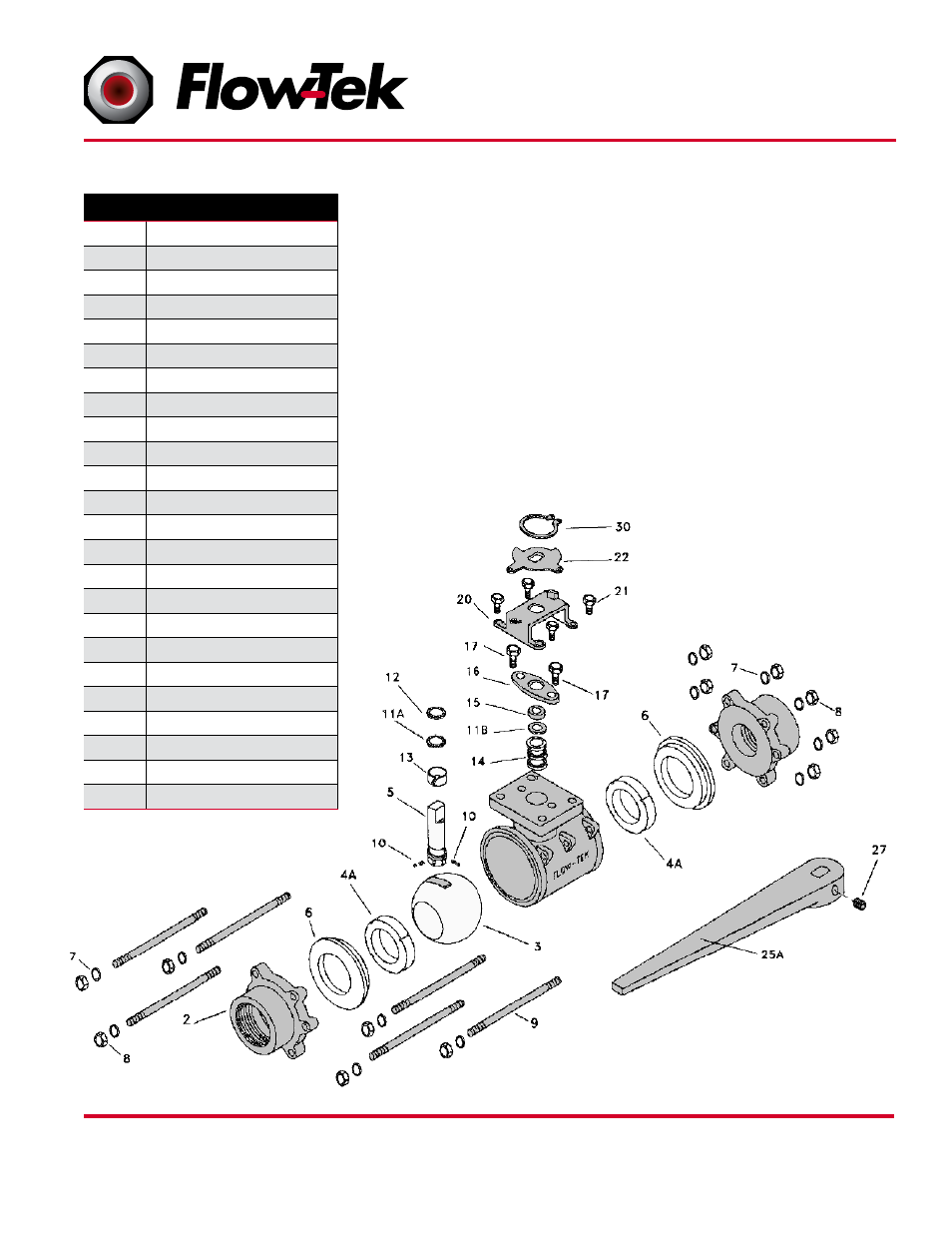

COMPONENTS
Item Name
1 Body
2 END CAP
3 BALL
4 SEAT
5 STEM
6* BODY GASKET
7 LOCKWASHER
8 NUT
9 BODY SCREW
10 ANT-STATIC
11A* WASHER PROTECTOR
11B* PACKING PROTECTOR
12 THRUST WASHER
13 BEARING SLEEVE
14* STEM PACKING
15 PACKING GLAND SLEEVE
16 PACKING GLAND
17 GLAND BOLT
20 STOP HOUSING
21 HOUSING BOLT
22 TRAVEL STOP
25A LEVER
27 HANDLE BOLT
30 SNAP RING
