Installation and Maintenance Manual
Series 7000 and 8000 Ball Valves
Date: August 2011 / Page 6 of 9
®
A Subsidiary of BRAY INTERNATIONAL, Inc.
FLOW-TEK, Inc. Tel: 832.912.2300 © 2011 Flow-Tek, Inc.
8323 N. Eldridge Pkwy #100 Fax: 832.912.2301
Houston, Texas 77041 www.flow-tek.com
2
7
8
14
1
11
12
10
5
11
15
18
19
26
26
25
28
23
24
29
3
2
9
6
4
4
6

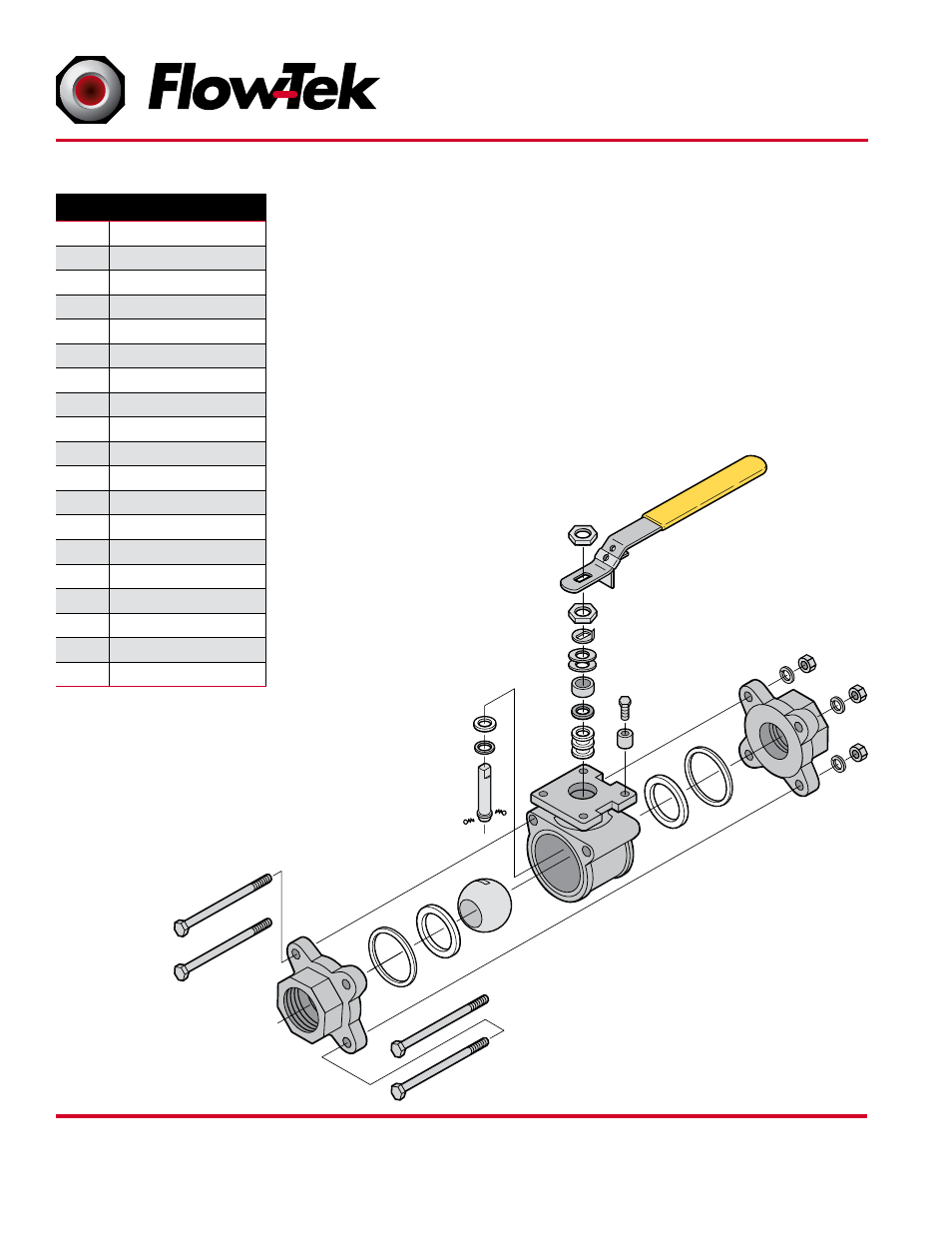

COMPONENTS
Item Name
1 Body
2 End Cap
3 Ball
4 Seat
5 Stem
6 Body Seal
7 Washer
8 Body Nut
9 Body Bolt / Stud
12 Thrust Washer
14 Stem Packing
15 Gland Nut
19 Handle Washer
23 Stop Set Sleeve
24 Stop Bolt
25 Handle
26 Handle Nut
28 Handle Sleeve
29 Locking Device
