8. Opening the switch
compartment To be able to carry out the following settings (sections 9. to 15.), the switch
compartment must be opened and, if installed, the indicator disc must be removed.
These settings are only valid for “clockwise closing”, i.e. driven shaft turns
clockwise to close the valve.
Work on the electrical system or equipment must only be carried
out by a skilled electrician themselves or by specially instructed
personnel under the control and supervision of such an electrician
and in accordance with the applicable electrical engineering rules.

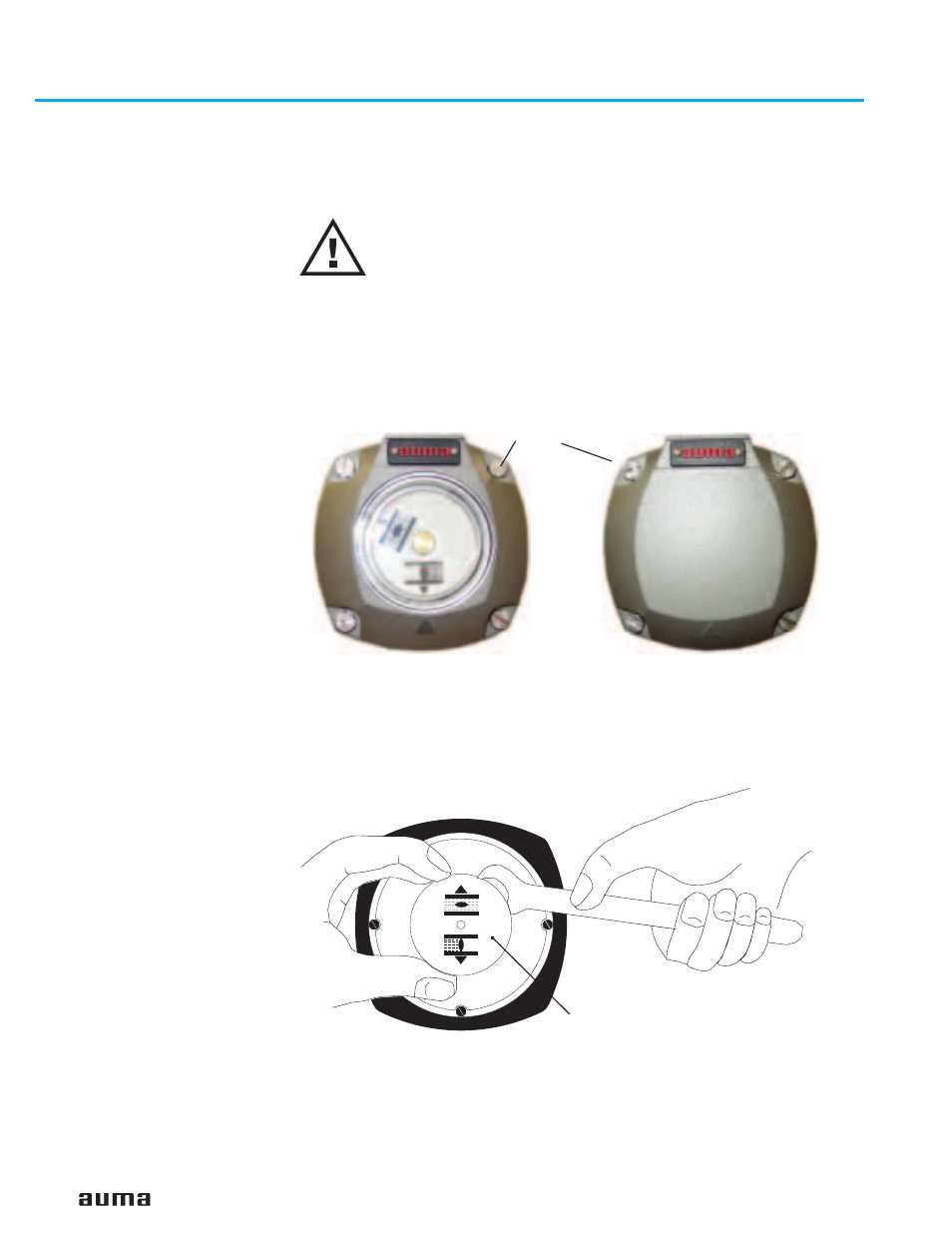

8.1 Removing the switch
compartment cover
.
Loosen 4 bolts and take off the cover at the switch compartment
(figures H) .
8.2 Pulling off the indicator disc (option) .
If installed, pull off indicator disc (figure J). Open end wrench
may be used as lever.
14
Multi-turn actuators SA 07.1 – SA 48.1 / SAR 07.1 – SAR 30.1
AUMA NORM
Operation instructions
Fig. H-2: Cover without indicator glass
DSR
WDR
Figure J: Pulling off the indicator disc
Indicator disc
Fig. H-1: Cover with indicator glass
Bolts
