Setting the limit switching, 1 setting the end position closed (black section), 2 setting the end position open (white section) – AUMA Electric multi-turn actuators SA 07.1 - 48.1_SAR 07.1 - 30.1 NORM User Manual

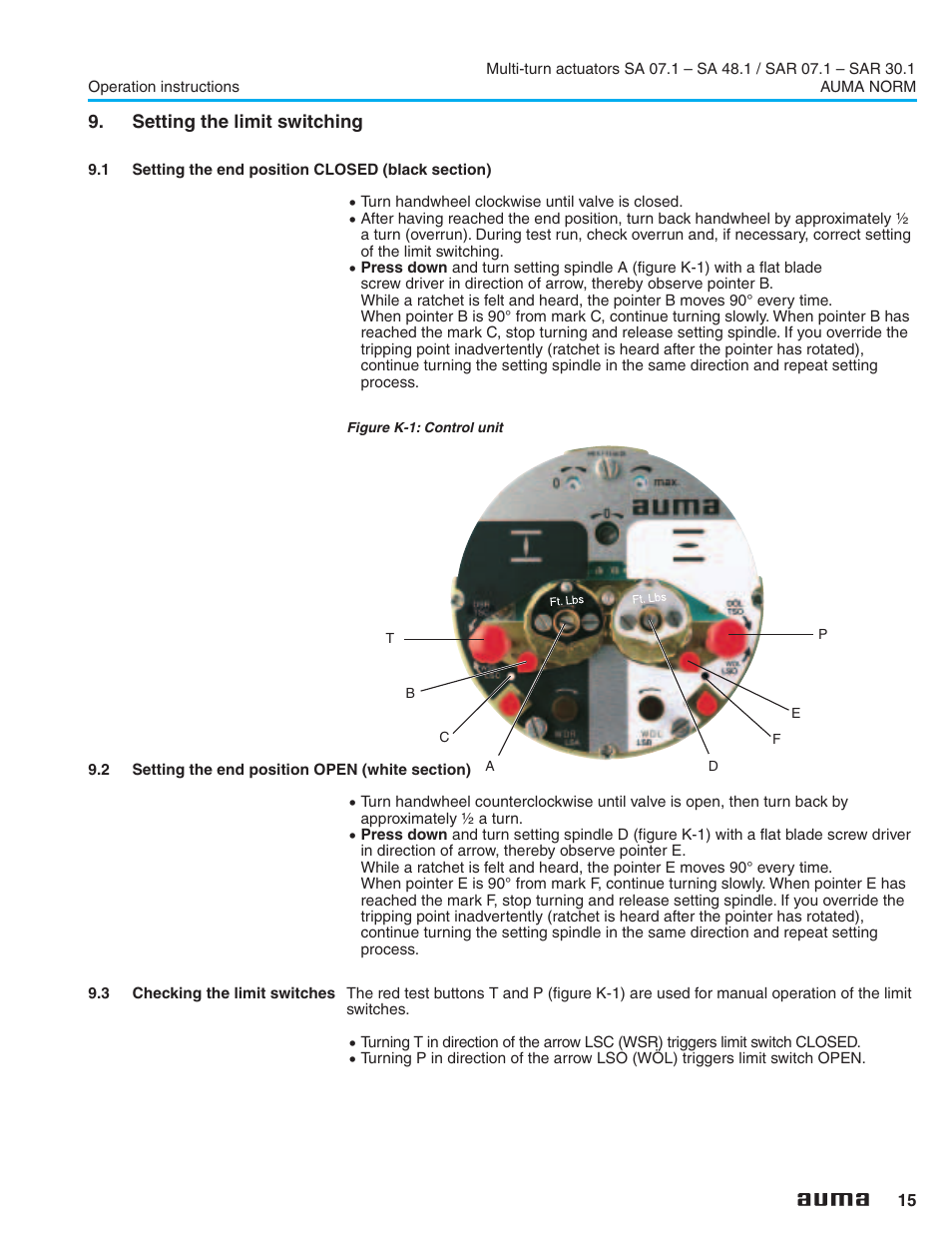

Page 15: 3 checking the limit switches, Limit switching 15,16, Setting the end position closed (black section), Setting the end position open (white section), Checking the limit switches

Setting the limit switching, 1 setting the end position closed (black section), 2 setting the end position open (white section) | 3 checking the limit switches, Limit switching 15,16, Setting the end position closed (black section), Setting the end position open (white section), Checking the limit switches | AUMA Electric multi-turn actuators SA 07.1 - 48.1_SAR 07.1 - 30.1 NORM User Manual | Page 15 / 32 Setting the limit switching, 1 setting the end position closed (black section), 2 setting the end position open (white section) | 3 checking the limit switches, Limit switching 15,16, Setting the end position closed (black section), Setting the end position open (white section), Checking the limit switches | AUMA Electric multi-turn actuators SA 07.1 - 48.1_SAR 07.1 - 30.1 NORM User Manual | Page 15 / 32
