Signal quality, speed and flexibility – these are the crite-
ria by which signal generators are measured today. The

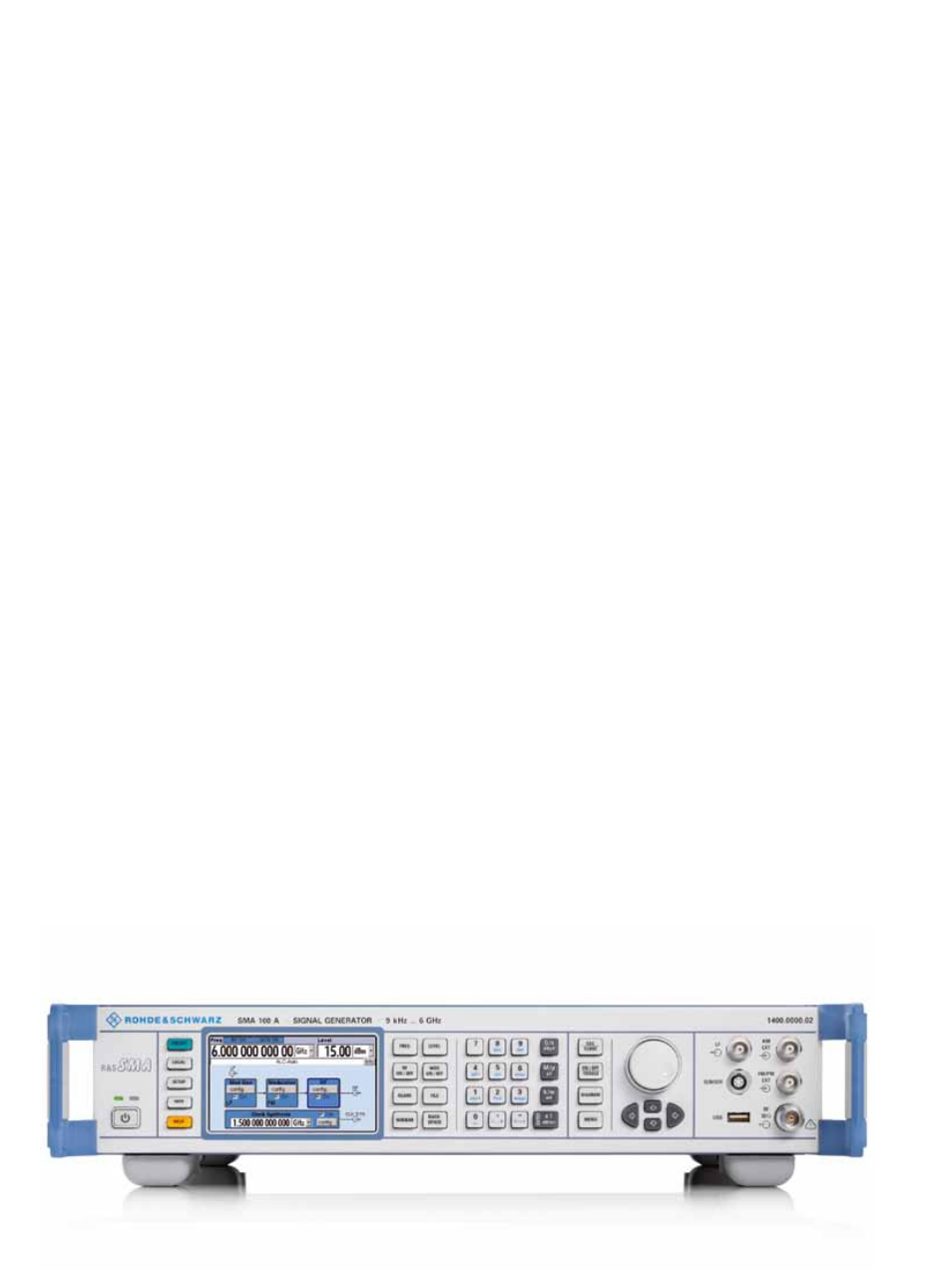

R&S®SMA100A perfectly meets these criteria, and thus is
a premium-class analog generator that sets new standards
due to its outstanding characteristics.
The R&S®SMA100A combines superior signal quality with
very high setting speed, which makes it ideal for any task.
Whether in development, production, service or mainte-
nance, the R&S®SMA100A does an excellent job.
In the frequency range from 9 kHz to 6 GHz, it can gen-
erate CW signals as well as all common types of analog
modulation (AM, FM, φM, pulse modulation). Excellent
specifications and a wide range of modulation signals –
these are the characteristic features of the R&S®SMA100A.
In addition, a low- jitter clock synthesizer option supplies
differential clock signals of up to 1.5 GHz independently of
the RF frequency. This makes the R&S®SMA100A suitable
for a variety of applications – from use in phase noise test
systems through to tests on mixed-signal ICs.
The R&S®SMA100A signal generator also offers a modern
graphical user interface for fast and intuitive operation.
The R&S®NRP-Zxx power sensors can be connected to
the R&S®SMA100A. The user can therefore perform very
precise power measurements directly with the signal
generator.
