320AMX-320AMXT
© 2013 Pacific Power Source, Inc. Subject to change without notice. #DS320AMX0713
17692 Fitch, Irvine, CA 92614 USA
Phone: +1 949.251.1800
Fax: +1 949.756.0756
Toll Free: 800.854.2433
E-mail: [email protected]
www.pacificpower.com

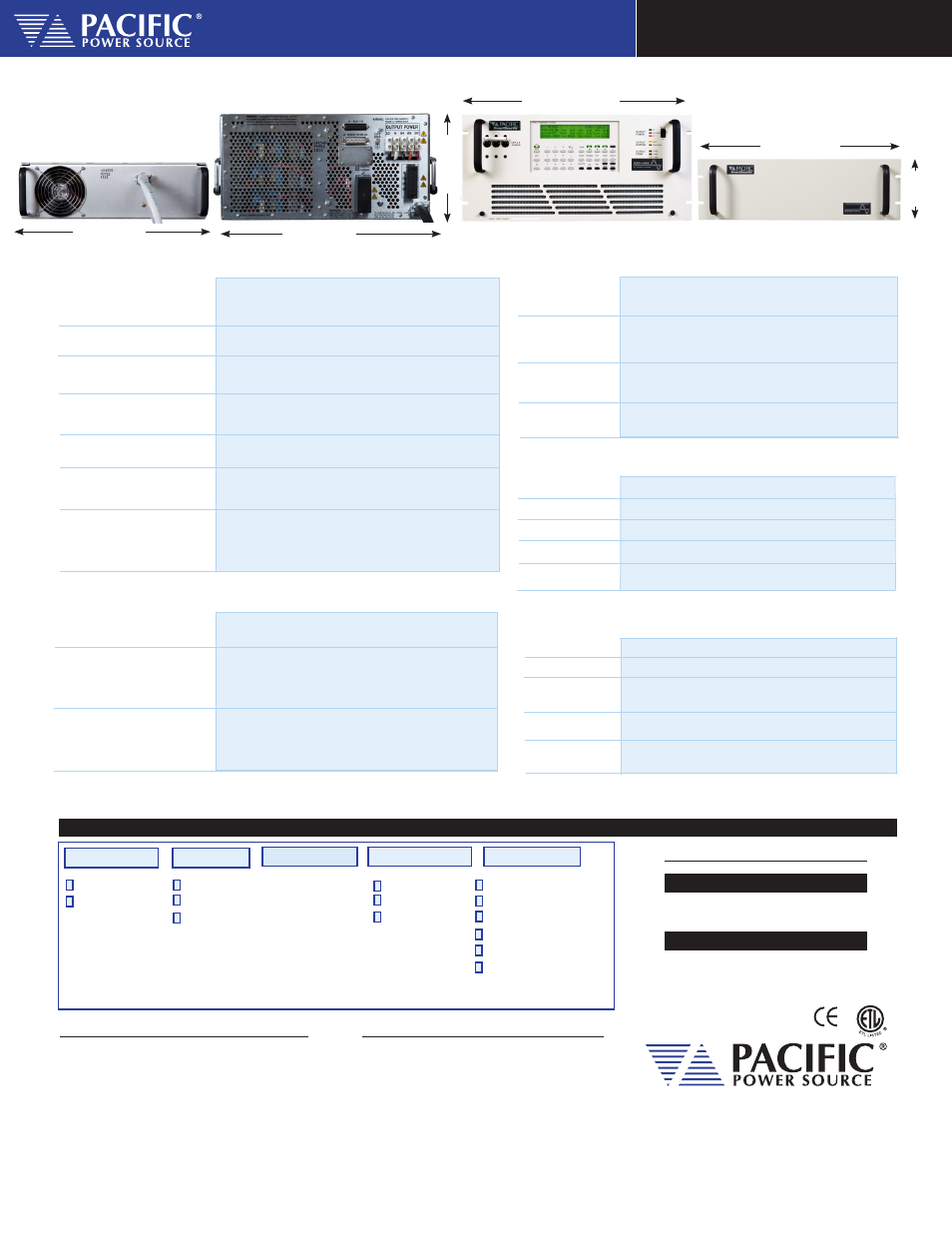

320AMXT-UPC3 Power Source with optional external high range transformer module.
19" (483mm)
5U
(8.75",
222mm)
19" (483mm)
3U
(5.25",
133mm)
Ordering Information
Available Models
With Manual Controller
320AMX-UPC3M
320AMXT-UPC3M
With Programmable Controller
320AMX-UPC3
320AMXT-UPC3
320AMX-UPC32 320AMXT-UPC32
General/Environmental
Mechanical Specifications
Hardware Options
Software/Firmware Options
Protection and Safety
Order Example
320AMXT-UPC32, T= 2.0:1, V
IN
: 220/380VAC
•
6kVA, 3-Phase, AC Power Source with optional
transformer assembly and UPC-32 programmable
controller.
•
Standard GPIB Interface
•
2.0:1 Transformer Ratio
•
220/380VAC, 3 Phase Input Voltage
Typical Delivery Items
•
AC Power Source
•
English Manuals (AC Source and Controller)
•
UPC Studio Software - (Download)
•
UPC Interactive LabVIEW
TM
Libraries
(Download)
•
Compliance Certificate with Test data
•
CE Conformity Document (CE Models)
Model
Controller
Options
Input Voltage (V
IN
)
T-Ratio (320AMXT Only)
320AMX
320AMXT
UPC-3M
UPC-3
UPC-32
See List Above
208 VACΔ ± 10%, 47-63Hz
220VACΔ ± 10%, 47-63Hz
240VACΔ ± 10%, 47-63Hz
220/380VACΔ ±10%, 47-63Hz
240/416 VACΔ ±10%, 47-63Hz
Ratio 1.5:1
Ratio 2.0:1
Ratio 2.5:1
277/480 VACΔ ±10%,47- 63Hz
/Prog-Z
/HAS Harmonic Analysis and Synthesis
Programmable Output Impedance
/IR In-Rush Meter. Capture and view peak in-rush current
values via front panel or remote interface (UPC-3 only).
Test MGR UPC Test Manager License: Create, edit, and execute Test
sequences and reports. Ordered as separate line Item
Test SEQ Avionics test sequences; DO-160, ABD-0100, ABD-0100 (A350),
Ordered as separate line item, Requires 'Test' Manager License.
16.75" (426mm)
17" (432mm)
320AMXT Power Source with optional
external transformer module
/M99413
/MXXXXX
Safety Interlock Normally Closed Contacts
Other factory specified modification
/M7073 Safety Interlock Normally Open Contacts
/G
GPIB Interface, IEEE-488.2. (Standard on UPC-32)
/S
RS232 Interface. 38.4kbps, (Standard on UPC-3)
Hardware
Programmable Current Limit
Programmable Current Protect
Over-current, short circuit, over- temperature
Allows the power source to operate in "constant voltage"
mode, interrupting output when specified current protect
limit is exceeded.
A single RMS programmed, average responding, value is
provided for all phases. Limits current by reducing output
voltage.
Temperature
Humidity
Cooling
Altitude
Heat Dissipation
Audible Noise
Agency Approvals
0 - 95%, Non-condensing
Front and side forced air intake (300 CFM) with rear exhaust.
Operating: 6,500 Ft (1,981m)
Storage: 40,000 Ft (12,192 m)
2.2kBTU/ hr (Full kW Load)
65 dba Max @ 1 Meter
Safety UL 61010 -1
EN 61010 -1
EMC EN 61326 -1
Operating: 0° to 55° C
Storage: -10 ° to 70° C
Height
Depth
Weight
Mounting
Standard 19" rack (483mm). Cabinet options available.
320AMX: 5U (8.75", 222mm)
Transformer Module: 3U (5.25", 133mm)
320AMX: 23.12" (587mm)
Transformer Module: 3U (5.25", 133mm)
(Approx. from front
panel to the rear of chassis.)
320AMX: 125 lbs (56.8kg)
Transformer Module: 125 lbs (56.8kg)
