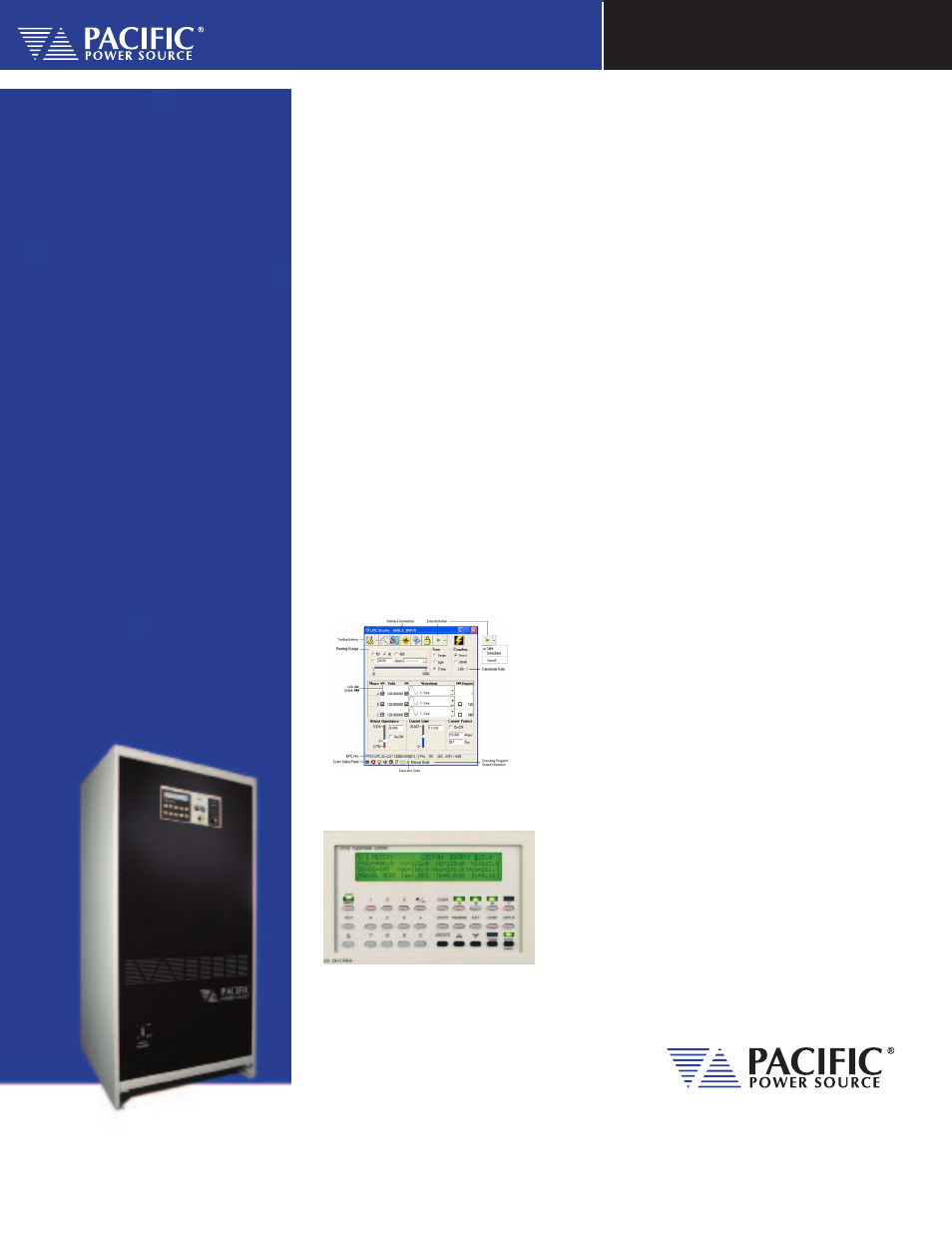

3060-MS
SCU-UPC32 Programmable Controller
The UPC controller is a 3-Phase AC arbitrary waveform
generator and precision AC metering system. Each
waveform stored in the UPC is encoded with 12-bit
amplitude and 10-bit time resolution for each cycle. The
waveform for each phase may be independently selected
and varied in amplitude and phase angle with respect to
phase A. The UPC output metering samples the output
volts and amps at 512 samples per measurement using a
12-bit A/D converter. This technique provides exceptional metering accuracy and resolution (20
bits), and delivers a high-fidelity waveform back to a host computer for analysis. The UPC includes
a remote GPIB interface compatible with IEEE488.2 and SCPI.
UPC Features
• Simple and Comprehensive programming
• Execute and Monitor the output values using the internal power
analyser
• Create arbitrary waveforms, import waveforms captured on
external instruments, freehand draw, enter harmonic and phase
angle content, create ringwaves, random noise, clipping and other
custom waveshapes.
UPC Manager Software Suite
Master the Power of the Wave!
UPC Manager Software gives you the tools necessary to quickly and easily operate your AC
Power Source. With our complete, graphical interface, control all areas of your AC Power
Source testing with simple presets, user prompts, test sequences, test plans and custom
reports.
© 2012 Pacific Power Source, Inc. Specifications subject to change without notice.
As a privately held, leading
manufacturer of high-quality AC Power
Conversion Equipment, Pacific Power
Source, Inc. offers standard catalog
products that range in power from 500
VA to >625 kVA. Low-power products
include frequency converters and
Programmable AC Power Sources. High-
power systems include programmable
power test equipment, frequency
converters and uninterruptible AC
Power Sources.
Founded in 1971, the Irvine, California,
company was an early pioneer in the
development of linear solid-state power
conversion for use in high-reliability
applications. The company now
manufactures both advanced linear and
broadband switching types of AC Power
Sources.
The Leader in AC Power Technology
17692 Fitch, Irvine, CA 92614 USA
Phone: +1 949.251.1800
Fax: +1 949.756.0756
Toll Free: 800.854.2433
E-mail: [email protected]
www.pacificpower.com
Page 4 of 4 DS#43060MS042013
UMS Option
MS Series Battery Support Systems
With the addition of the UMS Battery Backup option, the 3060-MS can be converted to
an uninterruptable Power Source (UPS). The UMS battery support system for a single
cabinet UMS installation (62.5 kVA, 50 kW) consists of 30 sealed, maintenance free, im-
mobilized electrolyte batteries installed in a Zone 4 cabinet. The UMS system DC voltage
regulator provides for automatic charging of the battery system to maintain the proper
float voltage.
This feature of the UMS system provides the ability to perform a battery test on com-
mand from the front panel or RS-232 serial port. Test results are displayed on the front
panel and are available over the serial port as a part of the system diagnostics. A battery
failure during the test will not cause the system to drop the load or distort the output
waveform.
On-Line, No-Risk Battery Test
A battery disconnect is located in the center of the battery cabinet front door.
Battery support time at full load (50 kW) is approximately 15 minutes. The waveform
quality at the end of the battery support time meets the requirements of MIL-STD 1399,
section 300A, Types I, II and III power forms.
