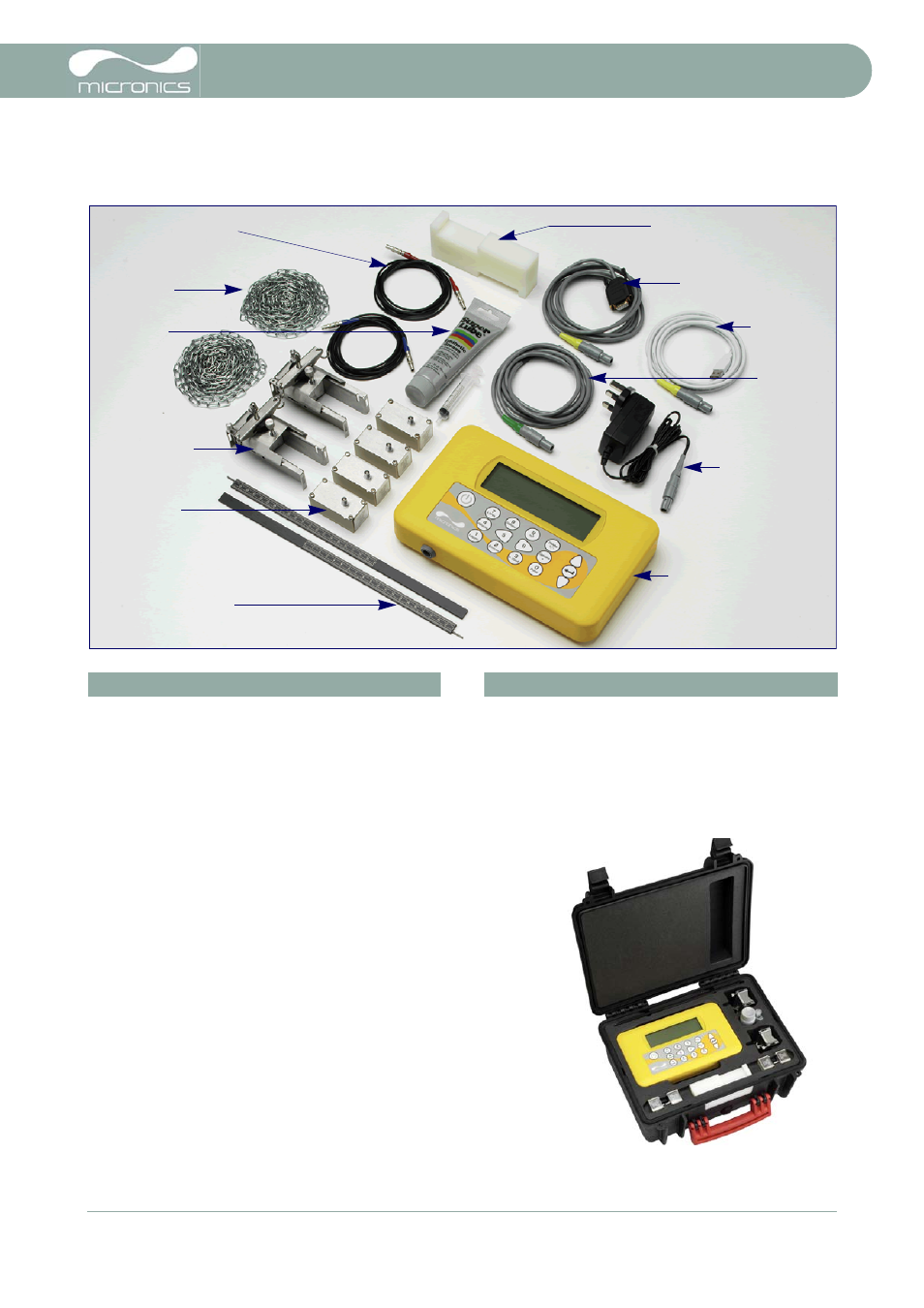

PF330 System components
Standard equipment Optional equipment
• Portaflow 330 instrument with backlit graphic display.
• Power supply - with UK, US, European adapters
110/240VAC
• Transducer cables (x2) 2 metres long
• Transducer set 'A' (Transducers x2)
• Transducer set 'B' (Transducers x2)
• Set of guide rails for use with ‘A’ or ‘B’ transducers
• Ruled separation bar (2-piece)
• 4-20mA/Pulse output cable
• USB cable and RS232-C cable
• 2 lengths of chain each at 3.3 metres long
• Test block
• Ultrasonic couplant and syringe applicator
• Manual (on CD)
• Transducer set 'D' – used for monitoring pipes of
1500mm to 5000mm diameter, over a temperature
range -20°C to +80°C. Kit is supplied in a separate
case and includes the sensors together with ratchet
straps and guide rails for attaching to the pipe
• Magnetic guide rail
• IP67 connectors in carrying case
4-20mA/
Test block
RS232 Cable
USB Cable
Power supply
Pulse output
cable
Transducer cables (x2)
Chains (x2)
Guide rails (x2)
Transducers
(Sensors) (Ax2, Bx2)
Ultrasonic
Ruled separation bar
Portaflow 330 instrument
couplant
(Batt. Charger)
(194-0049 Red)
(194-0050 Blue)
(221-0120)
(292-0008)
(230-0008 Type A x2)
(230-0006 Type B x2)
(221-0122)
(230-0013)
(780-0004)
(780-0001)
(194-0001)
(194-0003)
(194-0002)
(230-0007)
The Portaflow 330 Standard equipment is supplied
in a rugged IP67 carrying case fitted with a foam
insert to give added protection for transportation.
