Electrostatic Discharge Simulator
7

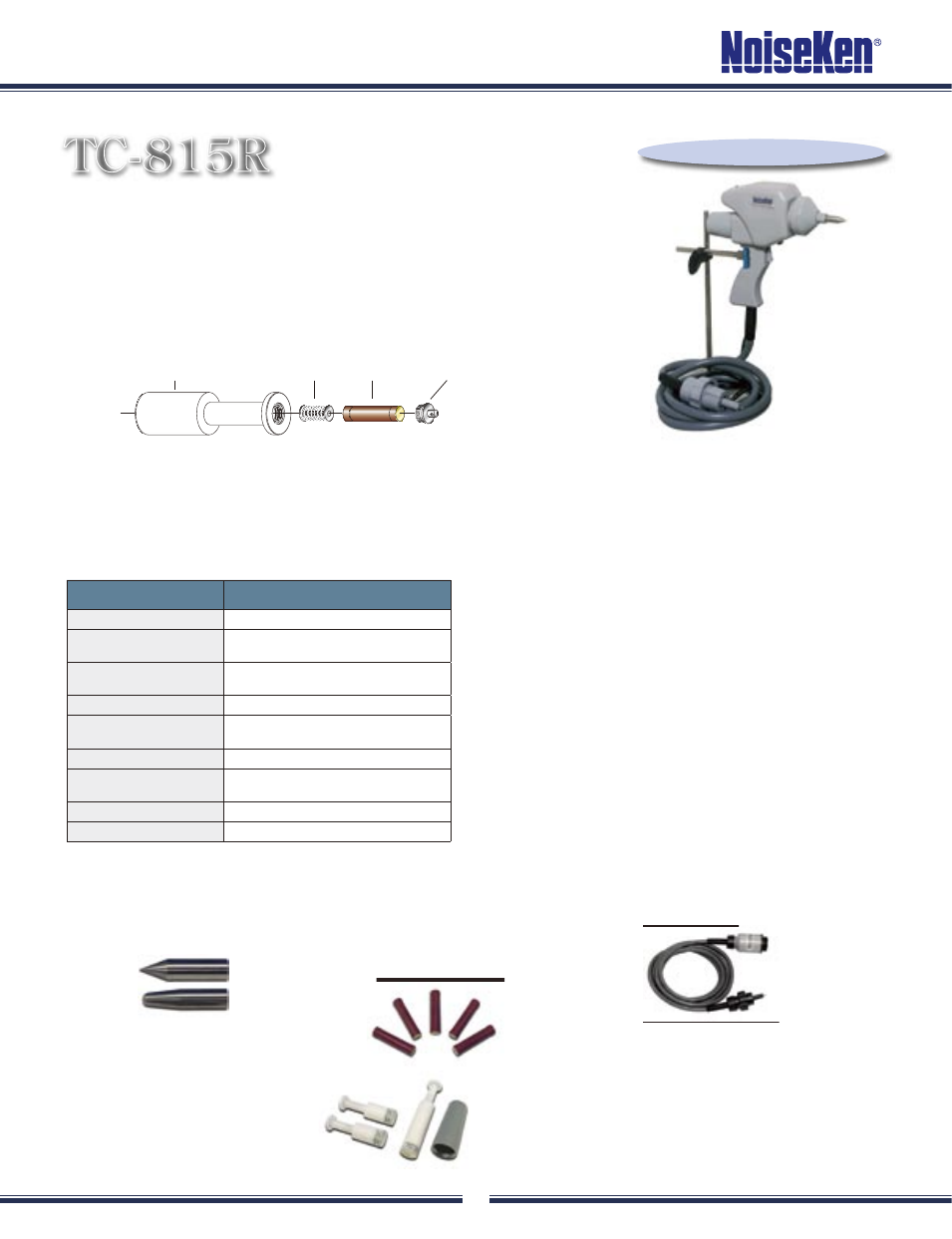

Discharge Gun
TC-815R
A lightweight and versatile discharge gun standard-supplied with the
both ESS series models.
(Gun stand in the photo is an optional accessory.)
■ FEATURES
● 200ps Fast Rise Time Adapter optionally available.
● Easily changeable Capacitor and Resistor units: A discharge resistor
is placed in the capacitor unit and the resulting CR network can be
fi tted into the gun. This method ensures any desired combination of
a capacitor and resistor.
Capacitor unit Spring Discharge resistor Electrode
For the waveform integrity, the standard 150pF capacitor unit has a fi xed
combination with 330 ohm resistor only.
■ SPECIFICATIONS
Parameters TC-815R specifi cations
Output voltage 0.20 ~ 30.0kV
Discharge waveform
parameters
Compliant with EN/IEC61000-4-2
Standard energy storage
capacitor
150pF ±10%
Standard discharge resistor 330Ω±10%
Charging resistor
43MΩ
(53MΩfor combination with ESS main unit)
Cable length 2 m
Dimensions
(W)75 × (H)220 × (D)210 mm
(Discharge tip excluded)
Discharge mode Air discharge and contact discharge
Weight Approx. 1.4 kg
For automotive electronics ESD test to ISO 10605, a dedicated
discharge gun package including the relevant two CR networks is
also available.
■ STANDARD ACCESSORIES
● 150pF Capacitor unit
(with a 330 ohm resistor built-in)
● Discharge tip
Model: 12-00001A (Conical)
Model: 12-00002A (Round)
● Instruction manual
■ OPTIONAL ACCESSORIES *) Standard accessories for TC-815R
● Discharge tip
Model: 12-00001A (Conical)*
Model: 12-00002A (Round)*
● Discharge resistor
(100,150,200,250,300,330,400,
500,1k,1.5k,2k,5k,10kΩ)
Model: H-100,150,200,250,300,330,
400,500,1K,1.5K,2K,5K,10K
● Extension cable
Model:05-00047A
2m length of TC-815R gun cable
can be extended to 5m.
● Capacitor unit
(100,150,200,250,300pF)
(330, 400, 500pF)
Model: 06-00013A ~ 00017A
06-00032A/00018A/00019A
Conforming to IEC61000-4-2
