Electrostatic Discharge Simulator
2
Computer-Controlled ESD Simulator
ESS-2000
&
TC-815R

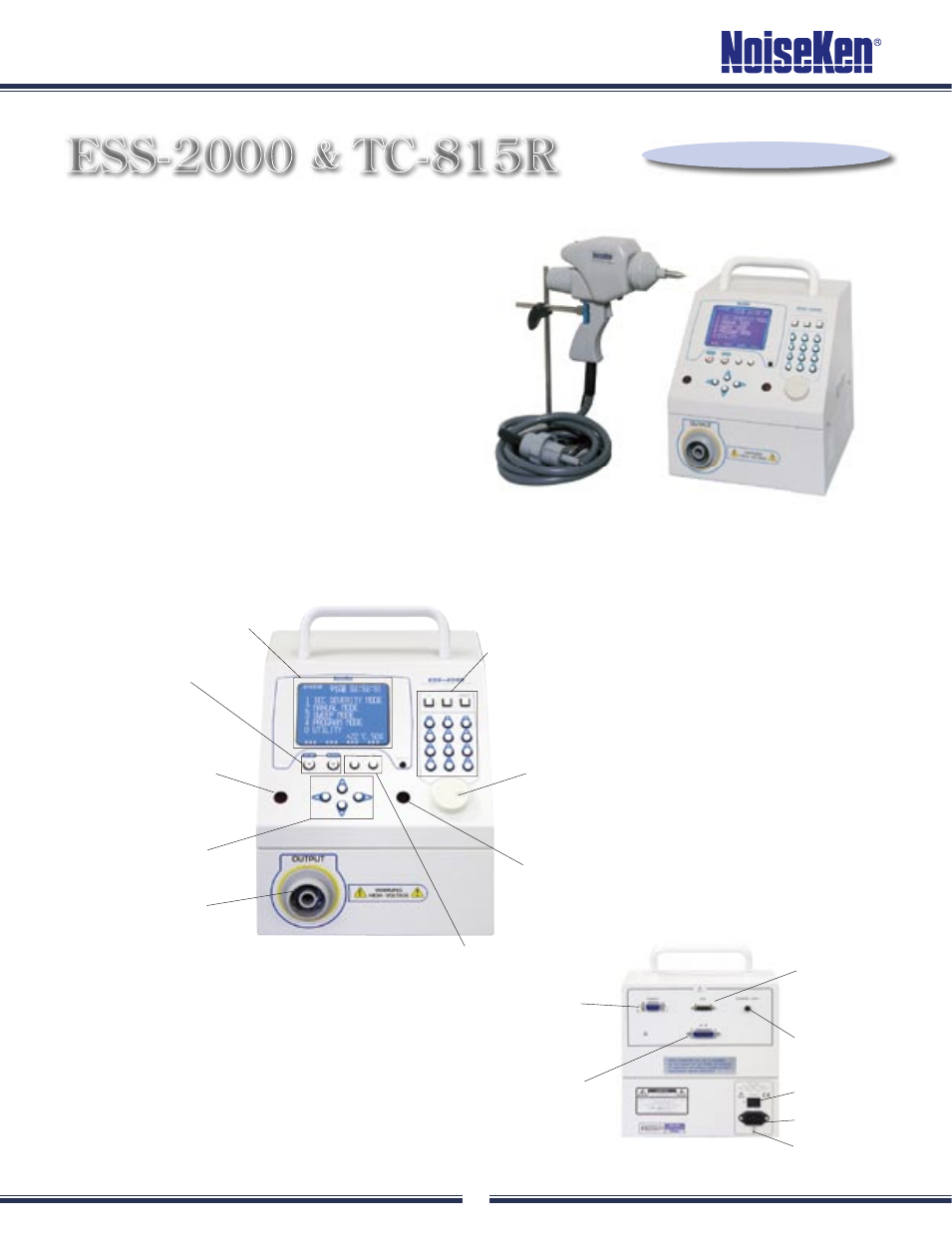

■ FEATURES
● Fully programmable menu-driven simulator providing
four operation modes: IEC severity, Manual, Sweep, and
Program
● A new level of ease of use and safety with the user
interface consisting of a 5-inch LCD, ten-key buttons,
rotary knob and others
● Unique shape for operator's easy access to the control
and displays even when the unit is put on the fl oor level
(ground plane)
● GP-IB interface
● A wide variety of the dedicated options
(Gun stand in the photo is an optional accessory.)
■ CONTROLS, INDICATORS AND TERMINALS
Large LCD: Makes testing faster,
easier and more reliable
Start/Stop buttons
Cursor buttons
Infra-red reception
for Remote Controller and
Tem./Humidity Sensor
High Voltage Connector:
Used to connect discharge gun
Controls: Intuitive set-up can be done
Rotary Control
Warning Lamp:
Blinks when the HV circuitry is on.
Function keys
Printer terminal
GP-IB interface
AUX terminal
Warning Lamp
terminal
Power switch
AC Inlet
Earth terminal
TC-815R ESS-2000
Conforming to IEC61000-4-2
