Big Functionality in a Small package
For high volume production environments where floor and test rack space
are at a premium, the Model 2306 packs two power supplies into one
half-rack enclosure. In addition to power control, both the Model 2302
and 2306 provide extensive measurement capabilities in the same half-
rack case. The front panel of each unit displays the user’s choice of either
the output voltage and output current, the average, peak, and baseline
pulse current levels, long integration currents, or DC DVM meas urements.
A minimum of front panel buttons ensures that operation is simple and
straight-forward.
For additional control requirements, the Models 2302 and 2306 each have
four digital relay control outputs and a 5V DC output to power a relay coil.
GENERaL
IsolatIon (low–earth): 22V DC max. For Models 2306 and 2306-PJ, do not exceed 60V DC
between any two terminals of either connector.
ProgrammIng: IEEE-488.2 (SCPI).
User-DeFInable Power-UP states: 5 (4 for Model 2306-PJ).
rear Panel ConneCtors: Two (one for Model 2302) 8-position quick disconnect termi-
nal block for output (4), sense (2), and DVM (2).
temPeratUre CoeFFICIent (outside 23°C ±5°C): Derate accuracy specification by (0.1 ×
specification)/°C.
oPeratIng temPeratUre: 0° to 50°C (Derate to 70%). 0° to 35°C (Full power).
storage temPeratUre: –20° to 70°C.
HUmIDIty: <80% @ 35°C non-condensing.
DIsPlay tyPe: 2-line
× 16-character VFD.
remote DIsPlay/KeyPaD oPtIon: Disables standard front panel.
DImensIons: 89mm high
× 213mm wide × 411mm deep (3 1 ⁄ 2 in × 8 3 ⁄ 8 in × 16 3 ⁄ 16 in).
net weIgHt: 3.2kg (7.1 lbs).
sHIPPIng weIgHt: 5.4kg (12 lbs).
InPUt Power: 100–120V AC/220–240V AC, 50 or 60Hz (auto detected at power-up).
Power ConsUmPtIon: 150VA max.
emC: 2302, 2306: Conforms with European Union Directive 89/336/EEC, EN 55011, EN
50082-1, EN 61000-3-2 and 61000-3-3, FCC part 15 class B. 2306-PJ: Conforms with
European Union Directive 89/336/EEC.
saFety: 2302, 2306: Conforms with European Union Directive 73/23/EEC, EN 61010-1.
2306-PJ: Conforms with European Union Directive 73/23/EEC.

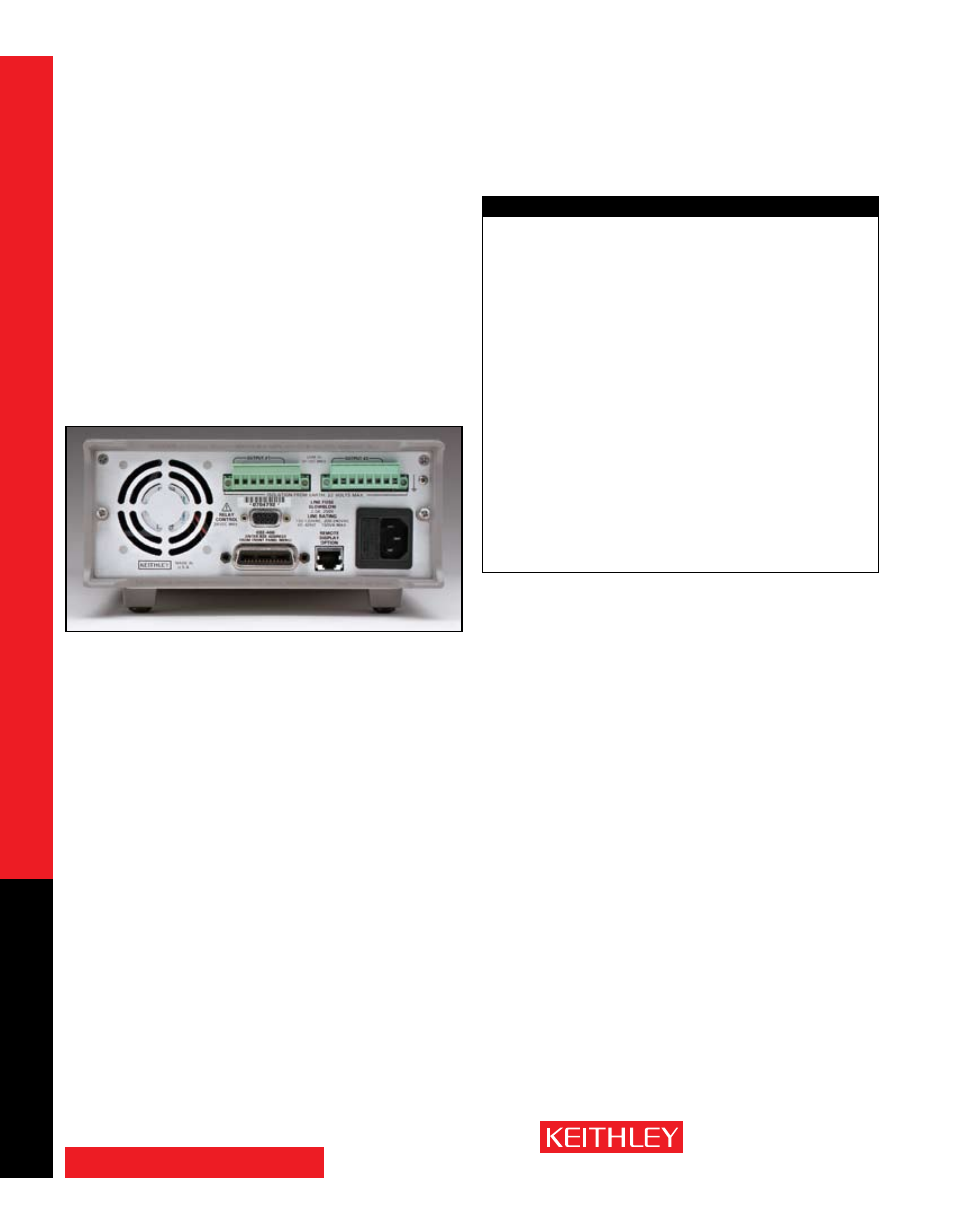

Figure 7. Model 2306 Rear panel showing 8-position power output
connectors, RJ-45 remote display connector, dB-9 relay output con-
nector, IEEE-488 connector, and power input socket.
2302
2306, 2306-pJ
Battery Simulator
Battery/Charger Simulators
