TECHNOLOGIES

PHENIX

Partial Discharge free

coupling capacitors

Model CC25-1, 25 kV 1 nF, 50-400 Hz

with base

Model CC50-1, 50 kV 1 nF, 50-400 Hz

with base

Model CC100-1, 100 kV 1 nF, 50-400 Hz

with base

Model CC200-1, 200 kV 1 nF, 50-60 Hz

with base and casters

Model CC300-1, 300 kV, 1 nF, 50-60 Hz

with base and casters

Model CC400-1, 400 kV, 1 nF, 50-60 Hz

with base and casters

Model CC500-1, 500 kV, 1 nF, 50-60 Hz

with base and casters

Model CC600-1, 600 kV, 1 nF, 50-60 Hz

with base and casters

Partial Discharge free injection capacitors

Model IC100-0.1, 100 kV, 100 pF, 50-400 Hz with base

Model IC200-0.1, 200 kV, 100 pF, 50-60 Hz with base and casters

Model IC300-0.1, 300 kV, 100 pF, 50-60 Hz with base and casters

Model IC400-0.1, 400 kV, 100 pF, 50-60 Hz with base and casters

Model IC500-0.1, 500 kV, 100 pF, 50-60 Hz with base and casters

note:

•

Injection capacitors require CAL1C PD Calibrator

•

Multiple channel PD systems require multiple capacitors

•

400 Hz operation available only up to 200 kV on both Coupling and

Injection Capacitors

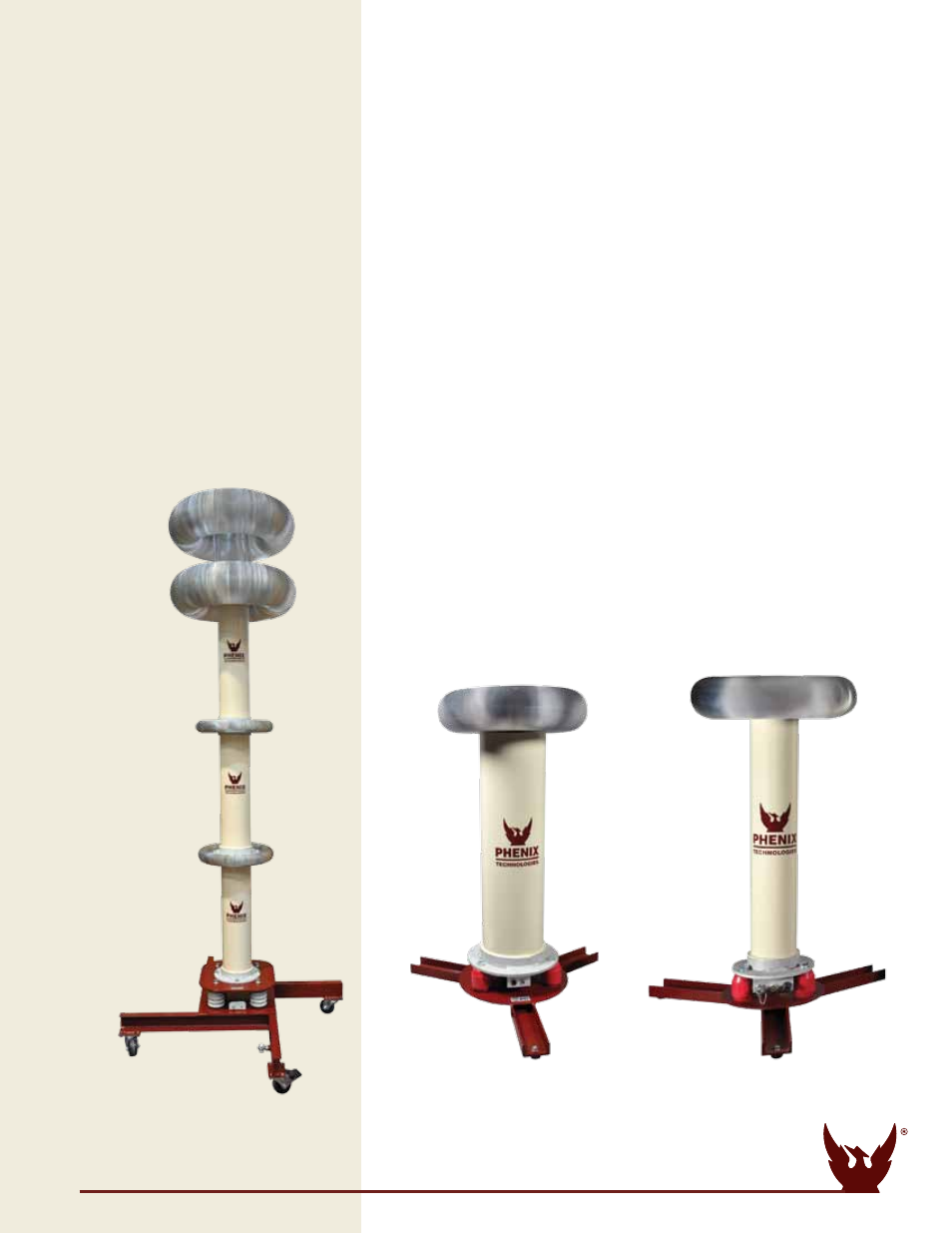

Model cc300-1

Model cc100-1

Model ic100-0.1
