www.phenixtech.com
features
TECHNOLOGIES
PHENIX
R
The PD2U offers convenient on-site testing
of electrical equipment. The basic unit can
be equipped with various options to suit
special measurement requirements.
This unit can be used with a full range of
preamplifiers covering the IEC60270
standard and ultrasonic frequencies up
to the UHF range (20 kHz-2 GHz).
Cable PD location (Option). Equipped with
a DSO board, the PD2U can be used to
locate partial discharge defects in power
cable. Using time domain reflectometry,
in which the PD and its “echoes” travel the
length of the cable under test, the PD2U
provides the proportional distance of the
PD fault along the cable. The additional
DSO board samples the PD signal at 100M
sample rate.
MUX4 (Option). 4-channel multiplexer for
testing three-phase equipment such as
power transformers. For each channel the
unit maintains an individual set-up and
calibration.

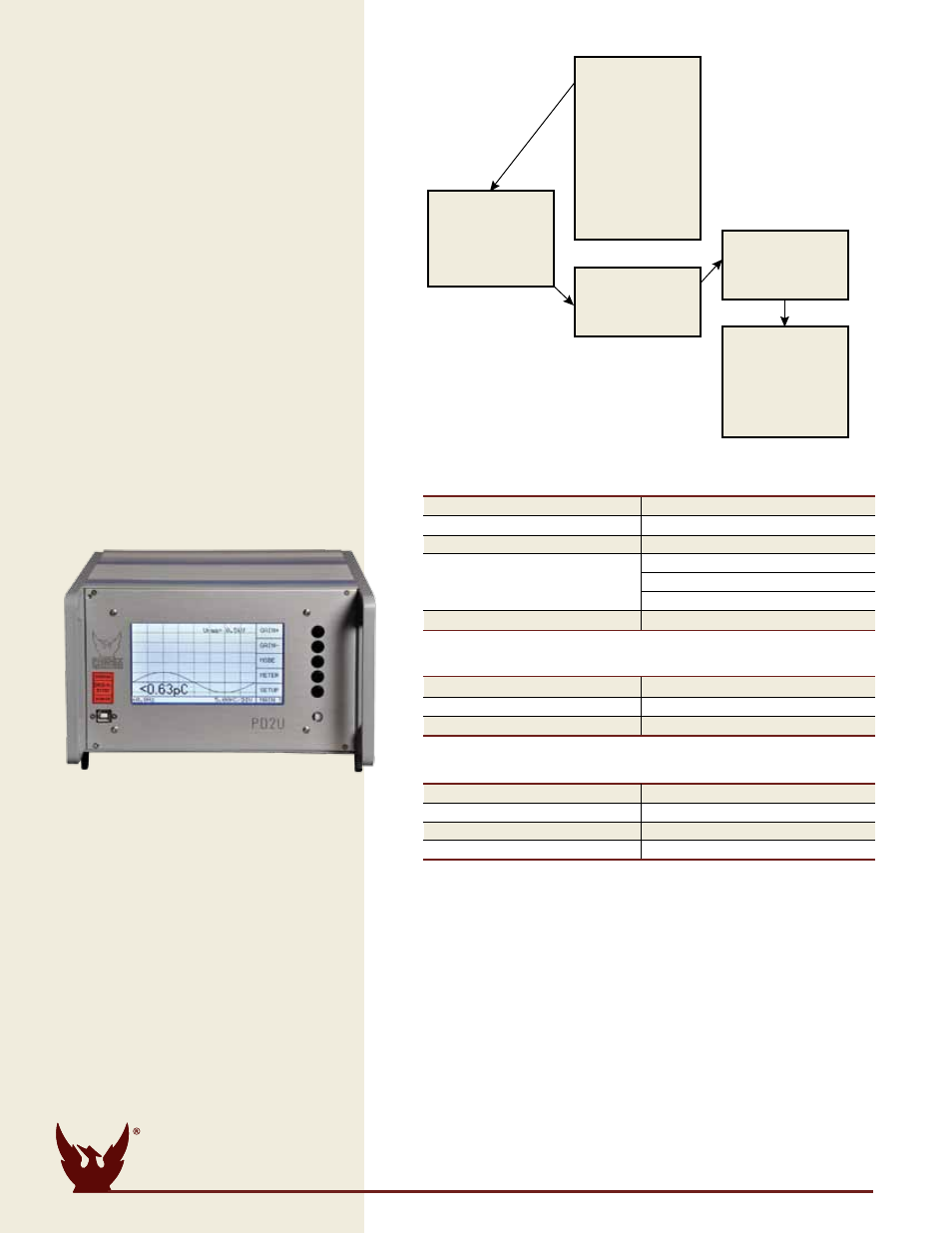

test object
Bushing
cable
switchgear
capacitor
gis
transformer
Motor
generator
other
Preamplifier
rPa1
coupling unit
coupling capacitor
+
Quadrupole
Database
software evaluation
Data files
Ms excel
other
PD Detector
PD2u
DescriPtion
Desktop acquisition and Display
unit (single channel)
• Voltage measurement
• Backlit LCD 240 x 128 dots
• Scope and meter display
• Auto-range function
• Automatic storage of current settings
• Internal (line 50/60 Hz) and external
synchronization (15-510 Hz)
• Universal serial interface
(USB, up to 921 kB)
acquisition unit
Input 100-240 VAC, 50/60 Hz
Power 25 VA
Temperature Range 10°C – 45°C
Dimensions 9 ³/8” (236 mm) W
11½” (295 mm) D
5¼” (133 mm) H
Weight 7 lbs. (3 kgs)
reference Voltage input (Bnc)
Input Impedance 1 MΩ / 200 pf
Input Voltage Max. 120 V (rms)
Frequency 20-510 Hz
Partial Discharge signals
Coupling AC
Input Impedance 50 Ω (without RPA)
Low Frequency Cutoff 40, 80, or 100 kHz
High Frequency Cutoff 250, 600, or 800 kHz
sPecifications
enVironMental conDitions
• 10-40°C, indoor/outdoor in fair weather
• Humidity <95% non-condensing
• Altitude <3000 ft (1000 meters)
