oPtions
triggered noise cancellation
gate Software controlled gating
from a signal connected to
an auxiliary input. Gating
threshold may be set
manually or automatically.
Includes the built-in loga-
rithmic preamplifier RPA6.

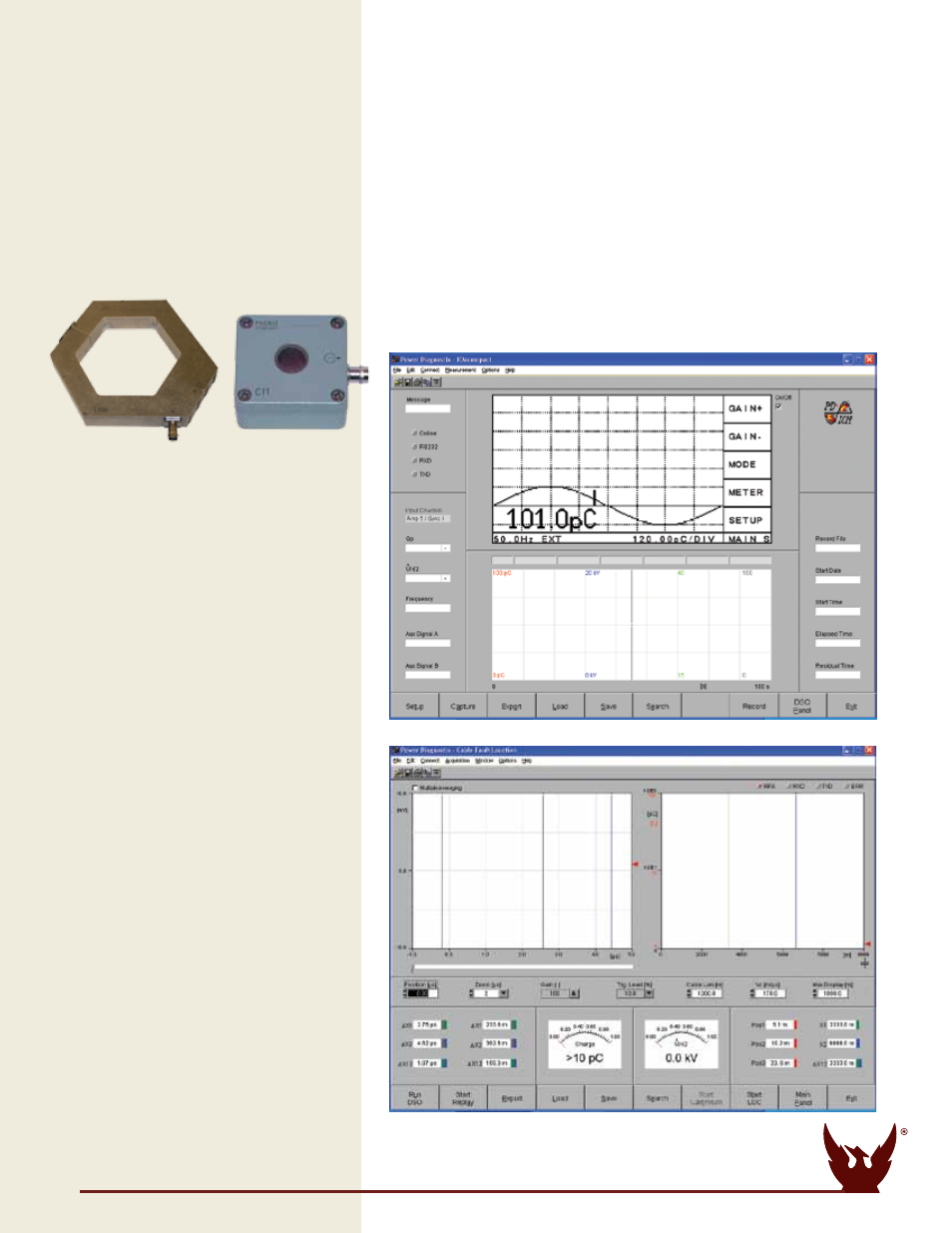

When a current transformer is used
instead of a quadrupole, the current
transformer can be placed around a
coupling capacitor terminal or around
a part of the test object itself. A current
transformer has the advantage of
providing galvanic isolation between
the PD detector and the high voltage
circuit. Current transformers are offered
as separate modules or integrated with
a coupling capacitor into a single unit.
rack Mounting Kit
• 19”, 3RU standard rack mount
for PD2U acquisition unit
Dso, cable PD fault location
• Digital Signal Processor
• Built-in digital scope (100M sample)
• DSO (TDR) Display
MuX4: 4 channel
Measurement upgrade
A built in multiplexer with four inputs for
PD measurement and four inputs for
voltage measurement. Firmware offers
four individual setups and calibration
factors. Additional line of pushbuttons
for direct channel selection. Includes
the following components:
• Voltage Measurement
• [3] additional sets of Connecting
Leads
• [3] additional Quadrupoles
• [3] additional Pre-Amplifiers
standard control software
Software to remote control the PD2U and for data acquisition
• 3-D Phase Resolved PD Pattern Acquisition
• ActiveX Driver License
• Supports fast USB communication
enhanced cable location software
Software to remotely control the PD2U with the PD fault location option.
Offers automatic scanning, viewing, editing, re-playing, and printing of
partial discharge signals. Zoom and cursor functions offer precise location
results. Includes the standard control software.
