11
ANT-5 SDH ACCESS TESTER
IMA Monitor
BN4563/93.64
For monitoring IMA link with up to 32 channels
Evaluates and displays ICP cell information.
IMA summary:-
IMA Version
IMA ID
Group State
Group Symmetry
Frame Length
Number of state changes
Number of active links
CRC Error count
IMA Link Status
Displays all channels in the link with the associated status
message.
SDH AU-3/SONET VT Mapping
BN4565/93.53
The AU-3 mapping function enables testing of DS-1, E1, E3
and DS3 tributaries mapped into the STM-1 signal via VC-3/AU-3.
VC-11/TU-11
1544 Kbps in STM-1 via TU-11, AU-3
VC-11/TU-12 1544 Kbps in STM-1 via TU-12, AU-3
VC-12 2048 Kbps in STM-1 via TU-12, AU-3
VC-3 34368 Kbps in STM-1 via VC-3, AU-3
44736 Kbps in STM-1 via VC-3, AU-3
The VT mapping function enables testing of DS-1 and E1 trib-
utaries mapped into an STS-1 SPE via VT-1.5 and VT-2 SPEs
(requires option BN4565/93.62 SONET STS-1/STS-3c/OC-12c
mapping).
ATM
BN4565/93.54
For testing of ATM services carried over PDH, SDH, and SONET.
– Tests ATM over DS1, E1, E3, DS3, E4,VC-4/
OC-12 and VC-4c/OC-12c, STS-1 SPE
– Supports ATM traffic selection with time slot 16
in PCM31/PCM31c mode
– CBR and VBR traffic generation
– Full cell header editing
– Cell BER tests
– O.191 QoS measurements
– ATM link and channel statistics
– OAM cell generation and analysis for VC/VP AIS
and RDI
– ATM Channel Explorer
PDH Mux/Demux
BN4565/93.58
For testing of legacy PDH/T-carrier systems. Generates struc-
tured signals from nx64 Kbps to 140 Mbps.
PDH
Output signal hierarchy 2, 34, 140 Mbps
Structure depth nx64 Kbps, 2, 8, 34 Mbps
E1 Sa bit Tx generation and Rx display
T-carrier
Output signal hierarchy 1.5, 45 Mbps
Structure depth nx64 Kbps, 1.5, 45 Mbps
(M13 framing)
Concatenated Mappings
BN4565/93.59
Enables measurements of contiguous concatenated signals
(STM-4c/-16c)
– VC-4-4c (requires optical interfaces STM-4 or higher)
– VC-4-16c (requires optical interface STM-16)
– STS-12c (requires optical interfaces STM-4 or higher and
SONET option)
– STS-48c (requires optical interface STM-16 and SONET
option)
SONET STS-1/STS-3c/OC-12c(3) Mapping
BN4565/93.62
Enables the generation and receiving of STS-3/OC-3 and OC-12
signals.Transmitter and receiver specifications as defined.Signal
structures and measurements as defined for SDH above.
The following mapping is provided:
– 599040 Kbps via STS-12c SPE
– E4 via STS-3c SPE
– DS3/E3 via STS-1 SPE
Remote GUI/Operation
BN4565/93.60
Enables the remote operation of the ANT-5 via V.24 or
Ethernet from a software emulation of the instrument running
on a Windows PC as a remote GUI.
The Remote Operations Client (ROC) supports the
following languages, which are user selectable via
the main menu:
English, German, French, Italian, Spanish,
Portuguese, and Chinese
Options

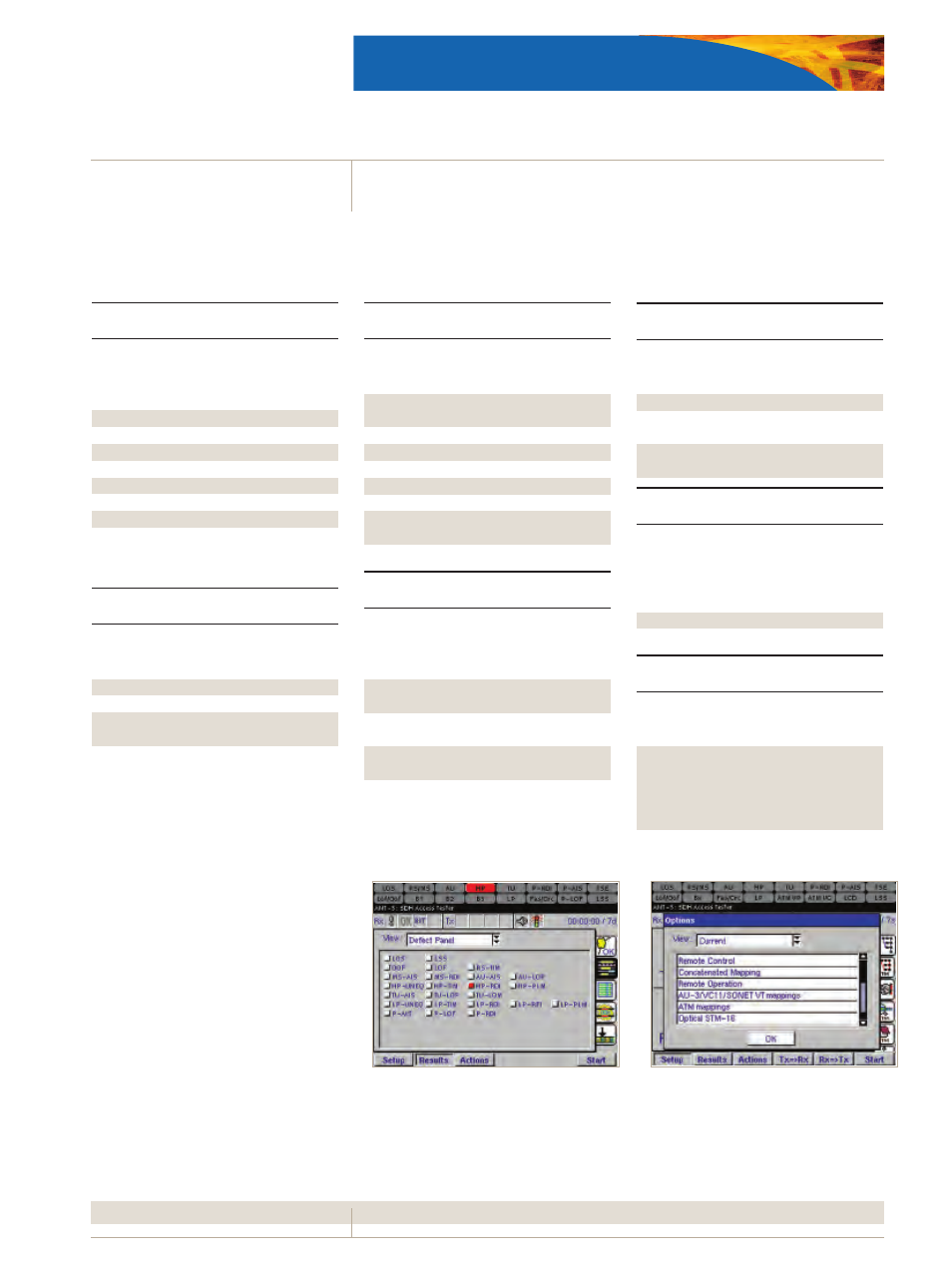

Figure 14: Defect panel view Figure 15: Review current options or install new options
