6
Two independent channels available
as baseband or IF outputs:
• CH1: Single-ended and differential
• CH2: Single-ended and differential
Channels
500 MHz per channel
(1 GHz I/Q bandwidth)
15 bits (1/32,768 levels)
• Harmonic distortion:
≤ -65 dBc for each channel DC to
500 MHz
• Non-harmonic spurious:
≤ -75 dBc for each channel 1 kHz to
500 MHz
• Noise floor:
≤ -150 dBc/Hz across the channel
bandwidth
Modulation bandwidth
Resolution
Output spectral purity
(CH1 and CH2)
Key characteristics

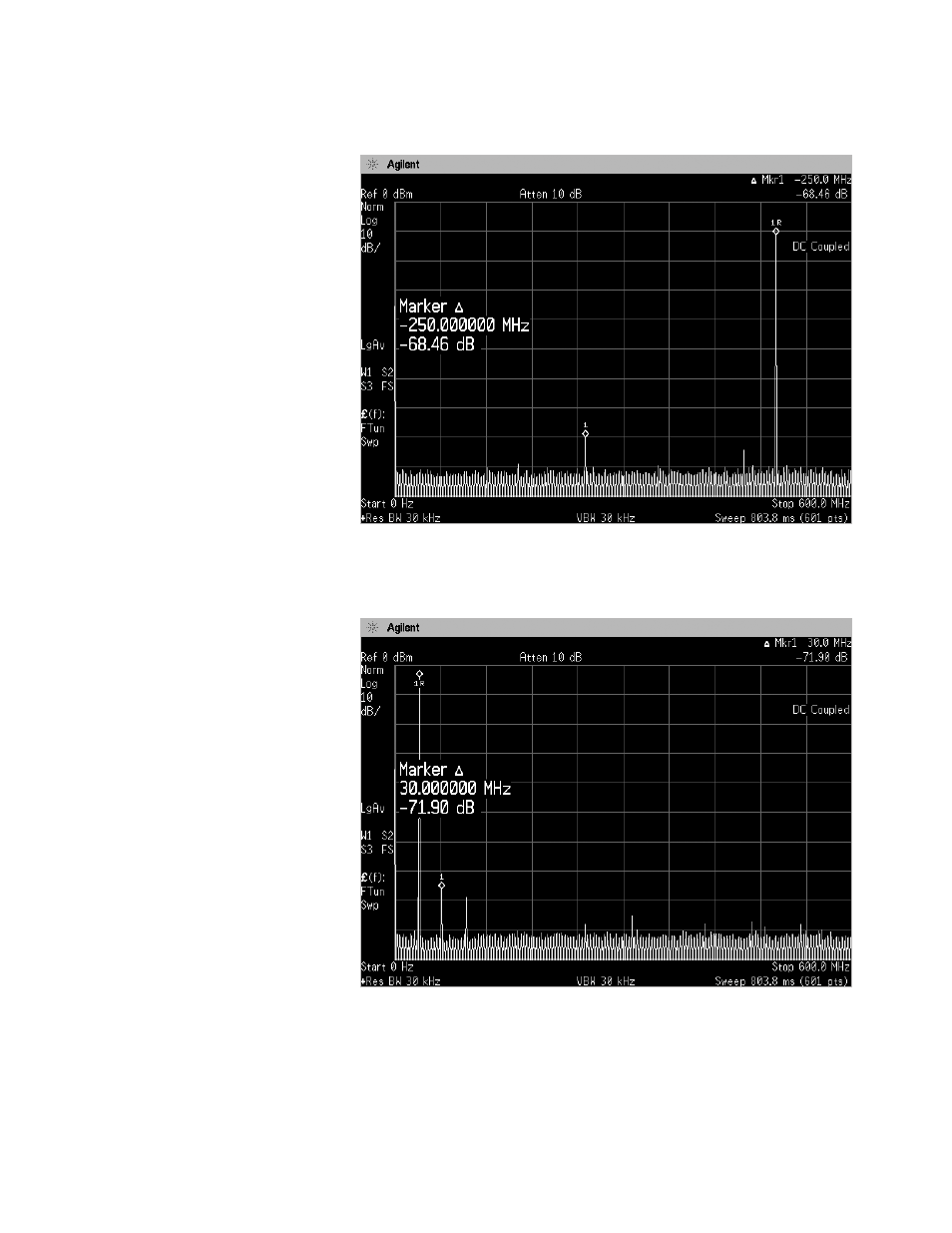

Figure 9. Excellent harmonic and spurious performance are available across the full
bandwidth of each channel.
Figure 10. Spurious performance outstanding at low signal frequencies.
