Protection

Over Load

Constant Current or Constant
Voltage mode

Over Temperature

Automatic shutdown

Regulatory

IEC1010, CSA22.2 No. 231,
EN50081-2, EN50082-2 CE
EMC and Safety Mark
requirements

RFI Suppression

CISPR 11, Group1 , Class A

Rear Panel Connectors

AC Input terminal block with cover

AC output terminal block with

cover

IEEE-488 (GPIB) connector

9 pin D-Shell RS232C connector*

Remote voltage sense terminal

block

System Interface Connector

(*RS232 DB9 to DB9 cable supplied)

Physical

Dimensions per 5001

iX unit

Height :

7” (178 mm)

Width :

19” (483 mm)

Depth :

24” (610 mm)

(Depth includes rear panel connectors)

Weight per 5001

iX chassis

61 lbs / 28 Kg net
80 lbs / 36 Kg shipping

Vibration and Shock

Designed to meet NSTA project
1A transportation levels

Air Intake/Exhaust

Forced air cooling, side air
intake, rear exhaust

Operating Humidity

0 to 95 % RAH, non
condensing.

Operating Temperature

0 to 40° C

Storage Temperature

-40 to +85° C

Ordering Information

Model

Line input

3001

iX

208 V

AC

L-L, 1ø

5001

iX

208 V

AC

L-L, 3ø

5001

iX -400

400 V

AC

L-L, 3ø

10001

iX

208 V

AC

L-L, 3ø

10001

iX -400

400 V

AC

L-L, 3ø

15001

iX

208 V

AC

L-L, 3ø

15001

iX -400

400 V

AC

L-L, 3ø

15003

iX

208 V

AC

L-L, 3ø

15003

iX -400

400 V

AC

L-L, 3ø

Supplied with

User manual

SCPI programming manual

Rack mount handles

Windows

®

Graphical User

Interface software

RS232C Serial cable

Options

-Mode-

iX

Switches between 1
and 3 phase modes,
for 15003

iX only.

-704

Mil Std 704D test
firmware

-160

RTCA/DO-160C test
firmware

-411

IEC 1000-4-11 test
firmware

-413

IEC 1000-4-13
Harmonics and
Interharmonics test

-EOS-1

IEC 1000-4-11
Electronic Output
Switch (1 phase)

-EOS-3

IEC 1000-4-11
Electronic Output
Switch (3 phase)

-LNS

Line Sync.
Synchronizes output
frequency to line
input frequency

-RMS

Rack mount slides

Customer Support

For technical support and

service, or to discuss your AC power
application needs, contact California
Instruments Corp. or your local
representative.

iX Series - Specifications

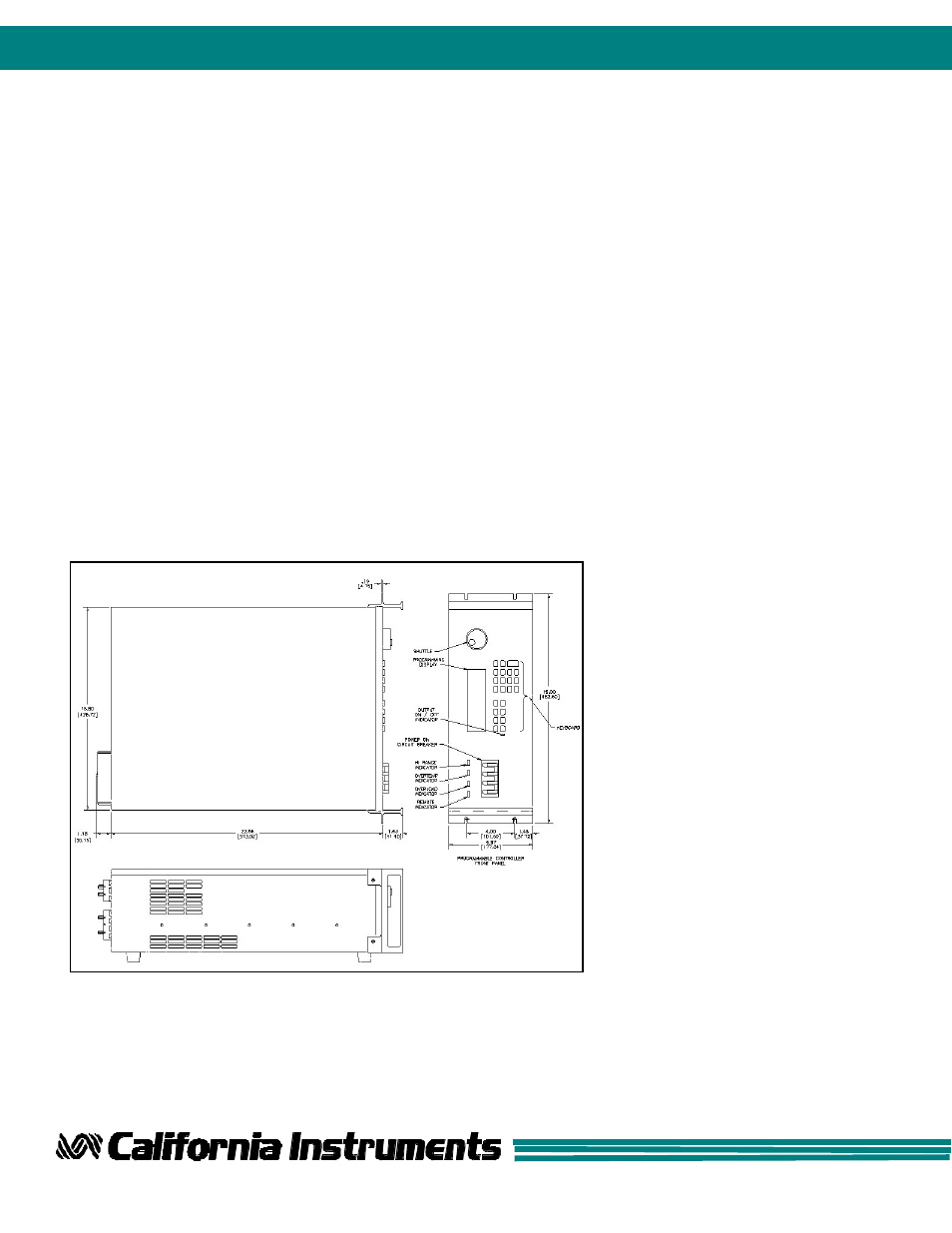

3001iX/5001iX Dimensions - single chassis
