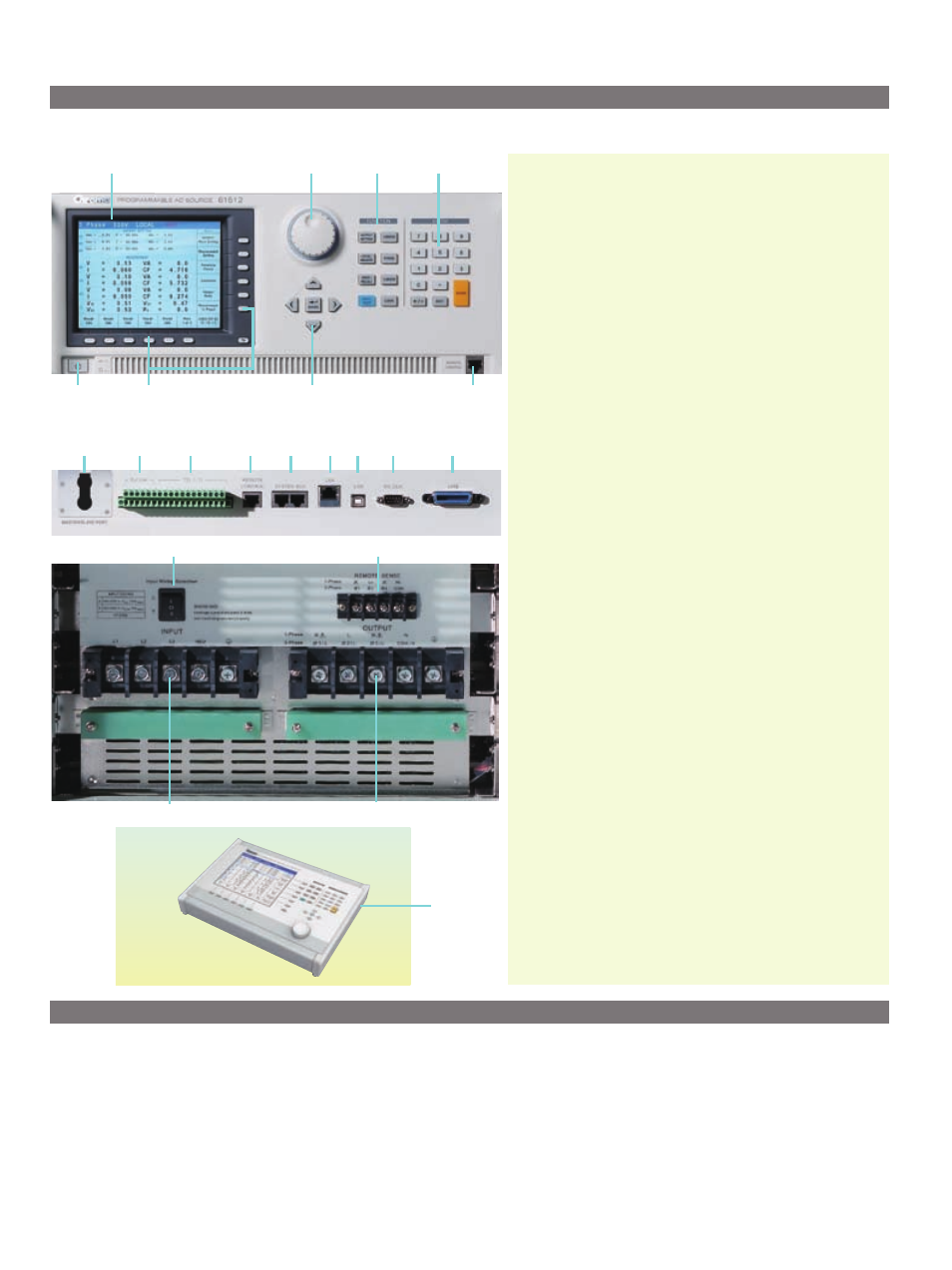

PANEL DESCRIPTION
1. LCD Display :
6.5 inches graphic LCD display for settings and
measurements read back
2. Rotary Knob
Use to adjust the voltage, frequency and parameters
setting
3. Function key
Hot keys for quick parameter setting
4. Numeric key
For data setting
5. Power Switch
6. Soft Keys
The soft-keys adjacent to the command block display on
the LCD that provides users a menu driven interface to
control the AC source operation
7. Cursor Key
For cursor movement
8. Remote Control Port
For optional remote controller
9. Master/Slave Port
For Master-Slave parallel operation
10. External V reference
External analog signal for voltage control
11. TTL I/O
Signals for system integration
12. Remote Control Port
For optional remote controller
13. System Bus
14. Ethernet Interface
15. USB Interface
16. RS-232 Interface
17. gPIB Interface
18. Input Power Selection Switch
Δ or Y 3-phase connection selection
19. Remote Sense
Use to compensate the line drop between
AC source and testing point
20. Input Terminal
21. Output Terminal
22. A615101
AC Source Remote Controller
1 2 3 4
5 6 7 8
FRONT PANEL OVERVIEW
ORDERING INFORMATION
61511: Programmable AC Source 0~300V, 15~1.5KHz/12KVA, 1ш/3ш
61512: Programmable AC Source 0~300V, 15~1.5KHz/18KVA, 1ш/3ш
61611: Programmable AC Source 0~300V, 15~1.5KHz/12KVA, 1ш/3ш
61612: Programmable AC Source 0~300V, 15~1.5KHz/18KVA, 1ш/3ш
A615007: Softpanel for 61500/61600 Series
*A615101: AC Source Remote Controller for 61511/61512/61611/61612
A615103: Parallable power stage unit 18KVA, 1ш/3ш
A615104: Input/Output terminals for parallel connecting (2 units)
A615105: Input/Output terminals for parallel connecting (3 units)
9 10 11 12 13 14 15 16 17
REAR PANEL OVERVIEW
18 19
20 21
22
A615101
Option for 277V
LN
/480V
LL
(5 Wires) AC input voltage are available with 61511/61512/61611/61612/A615103 models. Please contact with local sales
representative for ordering information.
* Call for availability
