To save the hassle with arranging the input and output wiring of multiple AC sources
connection in parallel operation. Users can select and Implement the Chroma input/output
terminal fixture (A615104/A615105) designed specifically to solve the wiring issue.
A615104: Input/Output terminal fixture for connecting 2 parallel AC source units.

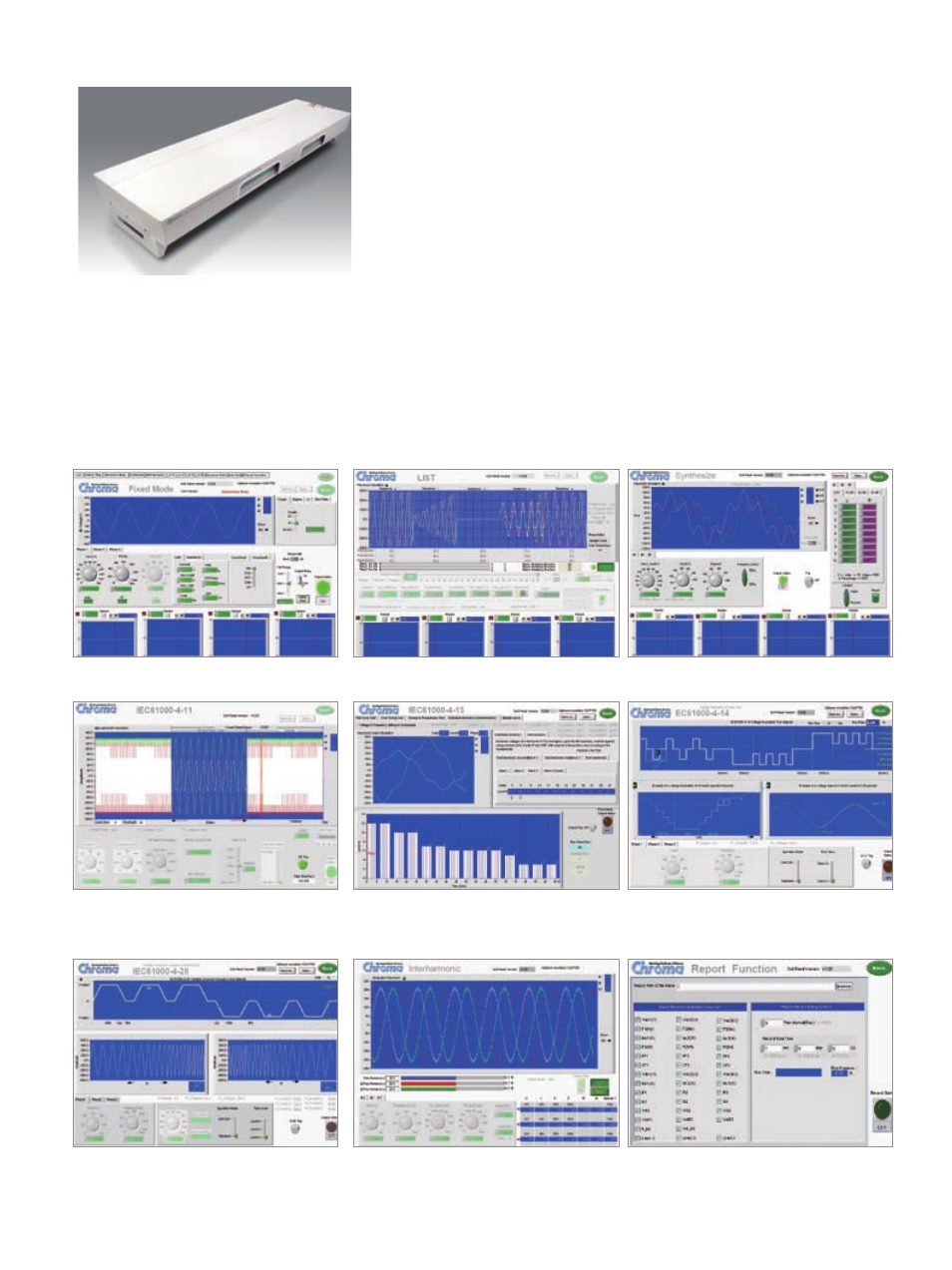

9. THE 61500/61600 SERIES SOFTPANEL*
Chroma Softpanel is a graphical user interface which provides extraordinary capability and convenience to user for delivering control to the
unit. The 61500/61600 series Softpanel is designed specifically for offering users to control the AC source by applying user friendly interface
configured in a graphical, instrument like settings. The self explanatory graphical interface makes the enabling of extensive functions of AC
source with just few clicks of button. Users are able to perform online and offline waveform editing with the implementation of Softpanel. The
Softpanel is also equipped with data recording function as multiple measurement data can be recorded simultaneously. One of the most
powerful features for Softpanel is the availability of test environment configured specifically for conducting IEC regulation test, such as IEC
61000-4-11, IEC61000-4-13, IEC61000-4-14 and IEC61000-4-28.
Main Operation Menu Transient Voltage Programming Distorted Waveform Editor
Voltage DIP,
Short Interruption,
Variation Regulation Test
Voltage Harmonic & Interharmonic Test Voltage Fluctuation Test
Frequency Variation Test Interharmonic Test Recording Function
* Softpanel support functions are actually depending on the AC Source model being implemented. For instance, Softpanel will not
provide support for LIST mode function if 61600 series AC Source is implemented.
