Operating Modes

BPS Series

AC Mode Output

Frequency

Range: 16.00-819.0 Hz, -LF Option: 16.00-500.0 Hz,
Resolution: 0.01 Hz: 16.00 - 81.91 Hz, 0.1 Hz: 82.0 Hz - 819.1 Hz

Phase Outputs

1 or 3 Neutral: Floating, Coupling: DC (except for -HV option) Please specify Single (-1) or Three Phase (-3) for BPS30 and BPS45
at time of order.

Total Power

BPS30-1/3; 30kVA, BPS45-1/3: 45kVA, BPS75-3: 75kVA, BPS90-3: 90kVA, BPS150-3:150kVA, BPS180-3, 180kVA

Load Power Factor

0 to unity at full output current

AC Mode Voltage

Voltage Ranges

Range

V Low

V High

Load Regulation

< 0.25 % FS to 100 Hz, < 0.5 % FS 100 Hz to 819 Hz

0-150 V

0-300 V

Line Regulation

< 0.1% FS for 10 % line change

External Sense

Voltage drop compensation (5% Full Scale)

Harmonic Distortion (Linear)

Less than 0.5% from 16 - 66 Hz, Less than 1% from 66 - 500 Hz, Less than 1.25% above 500 Hz

DC Offset

< 20 mV

Load Regulation

0.25% FS @ - 100 Hz, 0.5% FS > 100 Hz

External Amplitude Modulation

Depth: 0 - 10 %, Frequency: DC - 2 KHz

Voltage slew rate

200 µs for 10% to 90% of full scale change into resistive load, 0.5V / µSec

AC Mode Current

Output

Model

BPS30-1/3

BPS45-1/3

BPS75

BPS90

BPS150

BPS180

30 KVA

45 KVA

75 KVA

90 KVA

150 KVA

180 kVA

BPS30-1
V Lo:200 A
V Hi: 100A
Single phase

BPS30-3
V Lo: 66.7A
V Hi: 33.3A
per phase 3 phase

BPS45-1
V Lo:300 A
V Hi: 150A
Single phase

BPS45-3
V Lo: 100
V Hi: 50A
per phase 3 phase

BPS75
V Lo: 166A
V Hi: 83A per

phase

BPS90
V Lo:200A
V Hi: 100A per

phase

BPS150
V Lo:332A
V Hi: 166A per

phase

BPS180
V Lo:400A
V Hi: 200A per

phase

Note: Constant power mode provides increased current at reduced voltage. See chart below

Peak Repetitive AC Current

4.5 x RMS current for BPS30, 3.0 x RMS current for BPS45, 3.6 x RMS current for BPS75 and 3.0 x RMS current for BPS90.
BPS150 is 2x BPS75 and BPS180 is 2x BPS90

Programming Accuracy

Voltage (rms): ± 0.3 Vrms, Frequency: ± 0.01 % of programmed value, Current Limit: - 0 % to + 5 % of programmed value + 1A, Phase:
< 0.5° + 0.2°/ 100 Hz with balanced load

Programming Resolution

Voltage (rms): 100 mV, Frequency: 0.01 Hz from 16 - 81.91 Hz, 0.1 Hz from 82.0 - 819 Hz, Current Limit: 0.1 A, 3 phase mode,
1.0 A, 1 phase mode, Phase: 0.1°

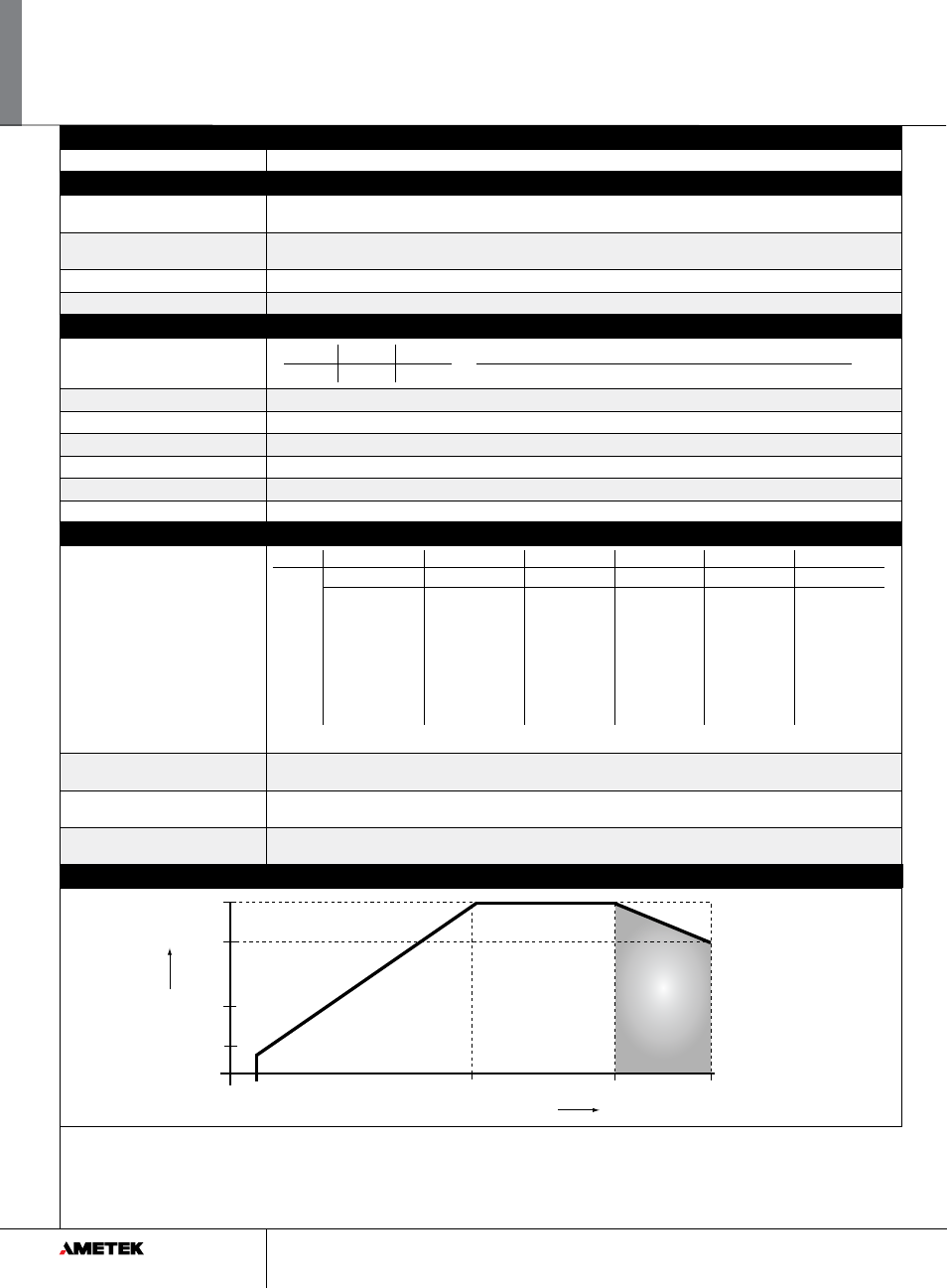

Constant Power AC Mode - Available Max. AC Current

Current

(RMS)

Voltage (RMS)

Full

Power

125%

100%

20%

50%

10%

80%

50%

100%

Note: Specifications are subject to change without notice. Specifications are warranted over an ambient temperature range of 25°± 5° C. Unless otherwise noted, specifications are per phase

for a sinewave with a resistive load and apply after a 30 minute warm-up period. For three phase configurations, all specifications are for L-N. Phase angle specifications are valid under
balanced load conditions only.
