Atec Chroma-63200 Series - Manual (Page 5)

Model 63201 63202 63203
Power*1 260W 2600W 260W 2600W 520W 5200W
Current 0-30A 0-300A 0-5A 0-50A 0-60A 0-600A
Voltage 1-80V 2.5-500V 1-80V
Min. Operating Voltage 1V@30A 1V@300A 2.5V@5A 2.5V@50A 1V@60A 1V@600A
Constant Current Mode
Range 0-30A 0-300A 0-5A 0-50A 0-60A 0-600A
Resolution 7.5mA 75mA 1.25mA 12.5mA 15mA 150mA
Accuracy 0.1%+0.1%F.S. 0.2%+0.1%F.S. 0.1%+0.1%F.S. 0.2%+0.1%F.S. 0.1%+0.1%F.S. 0.2%+0.1%F.S.
Constant Resistance Mode
Range 0.005-20ohm 0.25-1000ohm 0.25-1000ohm 10-40000ohm 0.0025-10ohm 0.125-500ohm
Resolution 12bits 12bits 12bits 12bits 12bits 12bits
Accuracy*2 0.6mho+0.35% 0.9mho+0.1% 0.012mho+0.35% 0.04mho+0.1% 1.2mho+0.35%*4 1.2mho+0.1%
Accuracy*3 (Vin>7V) 0.6mho+0.35% 0.012mho+0.35% 0.012mho+0.35% 112.5u mho+0.35% 1.2mho+0.35% 0.024mho+0.35%
Constant Voltage Mode
Range 1-16V 1-80V 2.5-125V 2.5-500V 1-16V 1-80V
Resolution 4mV 20mV 31mV 125mV 4mV 20mV
Accuracy 0.05%+0.1%F.S. 0.05%+0.1%F.S. 0.05%+0.1%F.S. 0.05%+0.1%F.S. 0.05%+0.1%F.S. 0.05%+0.1%F.S.
Constant Power Mode
Range 0.6-260W 6-2600W 0.625-260W 6.25-2600W 1.2-520W 12-5200W
Resolution 7.5mW 75mW 3.125mW 31.25mW 22.5mW 225mW
Accuracy 0.5%+0.5%F.S. 0.5%+0.5%F.S. 0.5%+0.5%F.S. 0.5%+0.5%F.S. 0.5%+0.5%F.S. 0.5%+0.5%F.S.
Dynamic Mode
Timing
T1&T2 0.025-10mS 1mS-30S 0.025-10mS 1mS-30S 0.025-10mS 1mS-30S
Resolution 1µS 1mS 1µS 1mS 1µS 1mS
Accuracy 1µS+100ppm 1mS+100ppm 1µS+100ppm 1mS+100ppm 1µS+100ppm 1mS+100ppm
Slew Arte 5mA-1.25A/µS 50mA-12.5A/µS 0.8mA-0.2A/µS 8mA-2A/µS 10mA-2.5A/µS 100mA-25A/µS
Resolution 5mA/µS 50mA/µS 0.8mA/µS 8mA/µS 10mA/µS 100mA/µS
Min. Rise Time 20 µS (typical) 24 µS (typical) 20 µS (typical)
Current
Range 0-30A 0-300A 0-5A 0-50A 0-60A 0-600A
Resolution 7.5mA 75mA 1.25mA 12.5mA 15mA 150mA
Accuracy 0.4%F.S. 0.4%F.S. 0.4%F.S.
Measurement
Voltage Read Back
Range 0-16V 0-80V 0-125V 0-500V 0-16V 0-80V
Resolution 15bits 15bits 15bits 15bits 15bits 15bits
Accuracy 0.05%+0.05%F.S. 0.05%+0.05%F.S. 0.05%+0.05%F.S.
Current Read Back
Range 0-30A 0-300A 0-5A 0-50A 0-60A 0-600A
Resolution 15bits 15bits 15bits 15bits 15bits 15bits
Accuracy 0.1%+0.1%F.S. 0.1%+0.1%F.S. 0.1%+0.1%F.S.
Power Read Back
Range 0-260W 0-2600W 0-260W 0-2600W 0-520W 0-5200W
Resolution 15bits 15bits 15bits 15bits 15bits 15bits
Accuracy 0.3%+0.3%F.S. 0.3%+0.3%F.S. 0.3%+0.3%F.S.
General
Short Circuit
Current 30A 300A 5A 50A 60A 600A
Size(mm) 440(W)x 177(H)x 644(D) 440(W)x 177(H)x 644(D) 440(W)x 353(H)x 644(D)
Weight 35kg 35kg 58kg
Safety & EMC CE CE CE

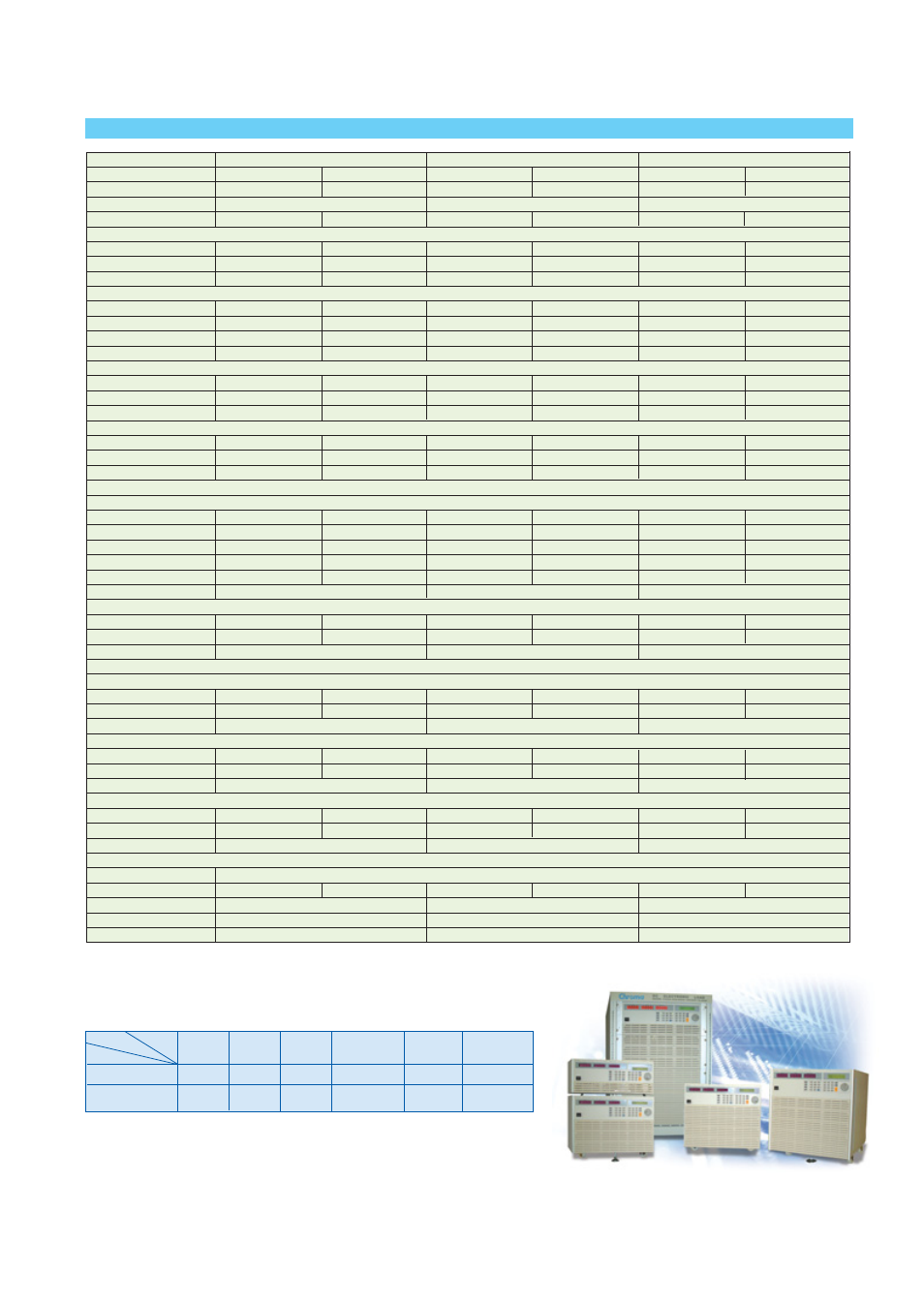

Selection Guide :
Model 63208 / 63209 / 63210
Model 63206 / 63207
Model 63203 / 63204
Model
63201 / 63202
Model 63205
SPECIFICATIONS
2600W 5200W 6500W 10400W 14500W 15600W
80V 63201 63203 63205 63206/63207 -- 63208/63209
500V 63202 63204 -- -- 63210 --
Power Model
Voltage
