AC Input: (AC input frequency 47 to 63 Hz)
Voltage 100 Vac 120 Vac 220 Vac 240 Vac
Current 4.4 A 3.8 A 2.2 A 2.0 A
Input Power 480 VA, 400 W at full load;
60 W at no load
GPIB Interface Capabilities SH1, AH1, T6,
L4, SR1, RL1, PP0, DC1, DT1, E1, and C0.
IEEE-488.2 and SCPI-compatible com-
mand set
Software Driver:
•IVI-COM
•VXIPlug&Play
Regulatory Compliance: Complies
with UL 3111-1, IEC 61010-1.
Size: 425.5 mm W x 88.1 mm H x
439 mm D (16.75 in x 3.5 in x 17.3 in)
Weight: Net, 14.2 kg (31.4 lb); shipping,
16.3 kg (36 lb)
Warranty Period: One year
Single-Output: 200 W GPIB
(Continued)
More detailed specifications at www.agilent.com/find/6640
High Performance DC Power Supplies speed and accuracy for test optimization
Ordering Information
Opt 100 87 to 106 Vac, 47 to 63 Hz
Opt 120 104 to 127 Vac, 47 to 63 Hz
Opt 220 191 to 233 Vac, 47 to 63 Hz
Opt 240 209 to 250 Vac, 47 to 63 Hz
* Opt 908 Rack-mount Kit (p/n 5063-9212)
* Opt 909 Rack-mount Kit w/ Handles
(p/n 5063-9219)
* Opt 1CP Rack-mount Kit with Handles,
p/n 5063-9219
Opt 0L1 Full documentation on
CD-ROM, and printed standard
documentation package
Opt 0L2 Extra copy of standard
printed documentation package
Opt 0B0 Full documentation on
CD-ROM only
Opt 0B3 Service Manual
* Support rails required
Accessories
p/n 1494-0060 Accessory Slide Kit
p/n 1252-3698 7-pin Analog Plug
p/n 1252-1488 4-pin Digital Plug
p/n 5080-2148 Serial Link Cable
2 m (6.6 ft)
E3663AC Support rails for Agilent
rack cabinets

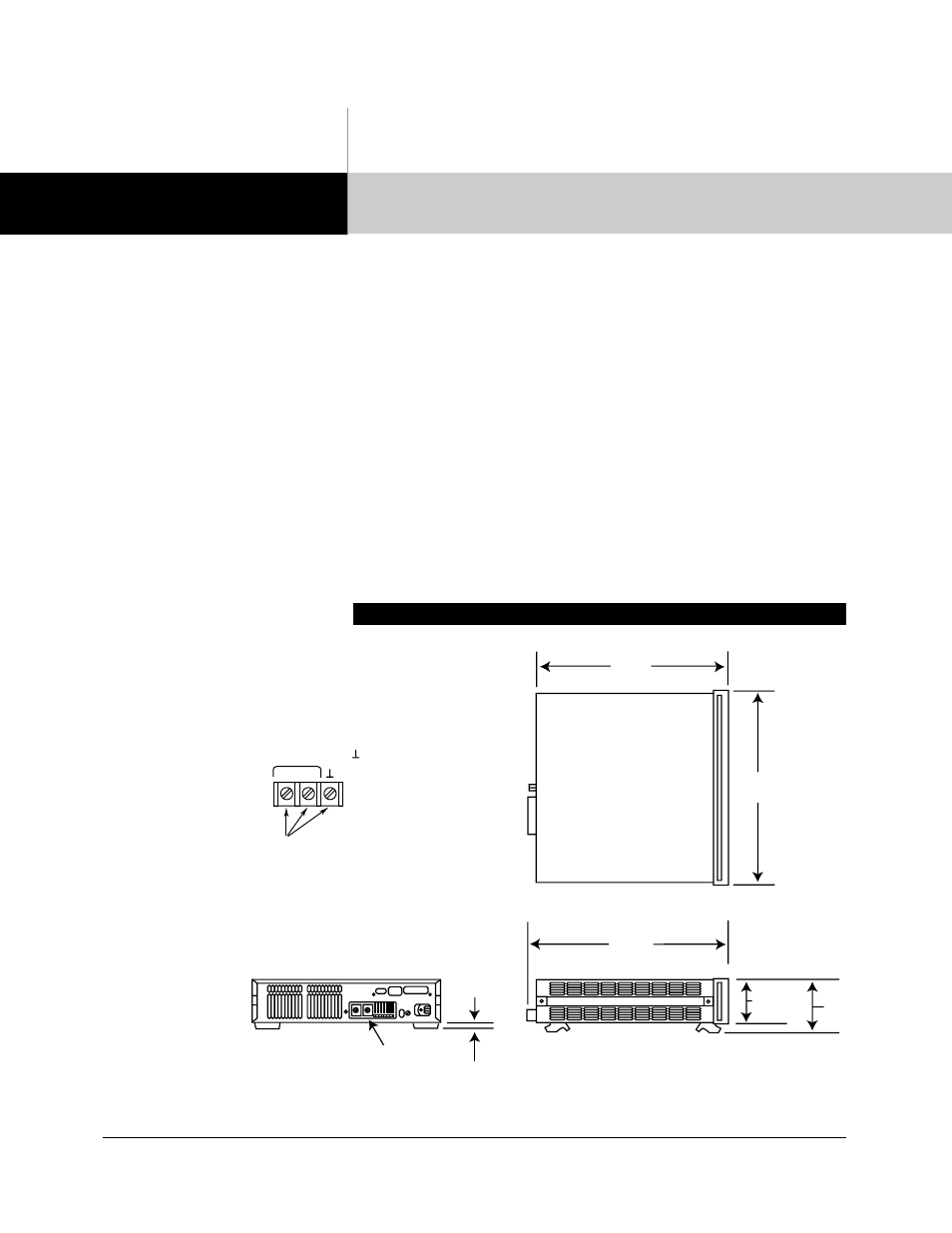

Agilent Models: 6641A, 6642A, 6643A, 6644A, 6645A
Top
Side Rear
Output
434.3mm
17.1"
425.5mm
16.75"
421.7mm
16.6"
88.1mm
3.5"
100mm
3.93"
12.7mm
0.5"
Terminal Screw Size: m4 x 0.7 x 8mm
A Thomas & Betts 22-18 ring
crimp-on will fit in this area
240 Vdc Max to
6 - 32 x 3/8 Screws
+
–
+ –
{ }
