18
Infiniium 90000A Series

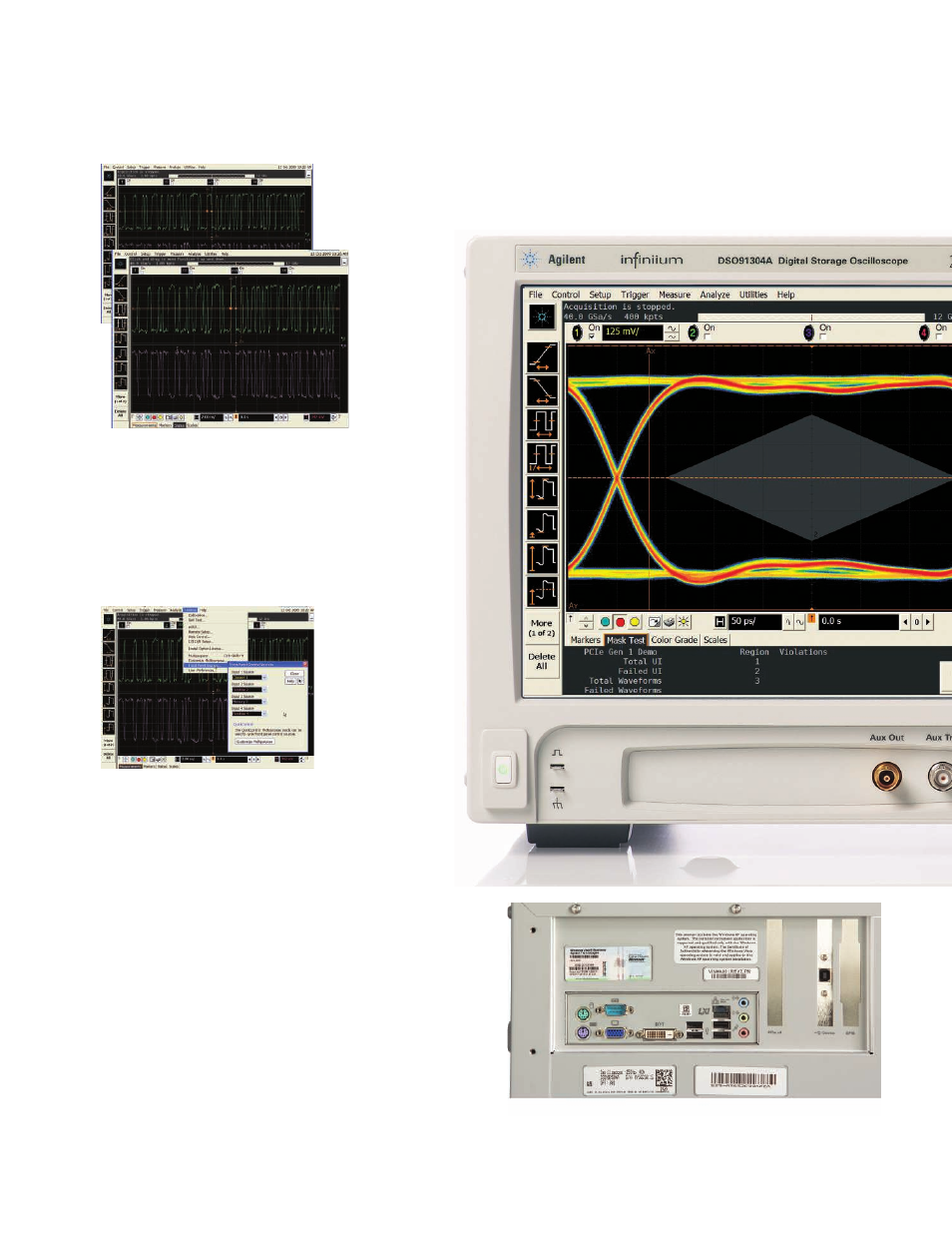

Starting with an 18-GHz, BNC-compatible connector , an ultra-low noise floor
front end design using Faraday cage technology ensures high signal integrity in
its signal path.
Click on the icon at the bottom left of
the Infiniium screen to minimize the
status and scales tab for full screen
viewing. Maximize your viewing needs.
Ever wanted to change the scale
or offset of a function or waveform
memory? If you have, you know that
it requires multiple menus and key
strokes. In Infiniium software version
2.01 and later, you can now map
functions and waveform memories
to the front panel controls of the
oscilloscope!
