8

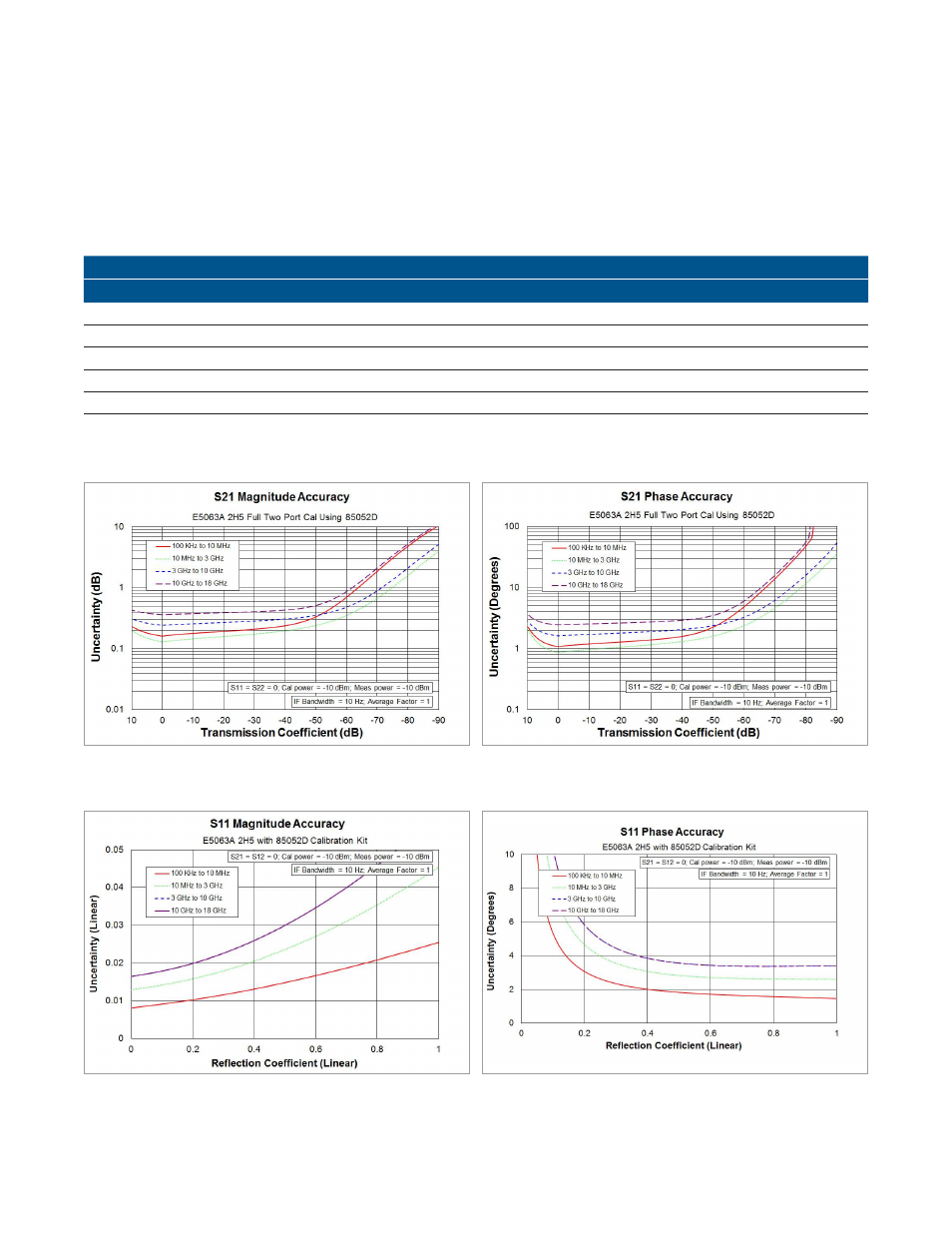

Corrected system performance with 3.5 mm device connector type, 85052D calibration kit
Network analyzer : E5063A
Calibration kit
: 85052D (3.5 mm, 50 Ω)
Calibration : Full 2-port
IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C) with < 1 °C deviation from
calibration temperature, isolation calibration performed
Specification (dB)
Description 100 kHz to 10 MHz 10 MHz to 3 GHz 3 to 10 GHz 10 to 18 GHz
Directivity 42 38 36 36
Source match 37 31 28 28
Load match 42 38 36 36
Relection tracking ± 0.003 ± 0.004 ± 0.008 ± 0.008
Transmission tracking ± 0.136 ± 0.100 ± 0.208 ± 0.328
Transmission uncertainty (specification)
Reflection uncertainty (specification)
