Shroud Location
2. Strip the user-supplied DC load wires 3/4". Loosen the 3/16" Allen screws and insert the
DC load wires. Torque to 120 in-lbs and replace the safety shroud.

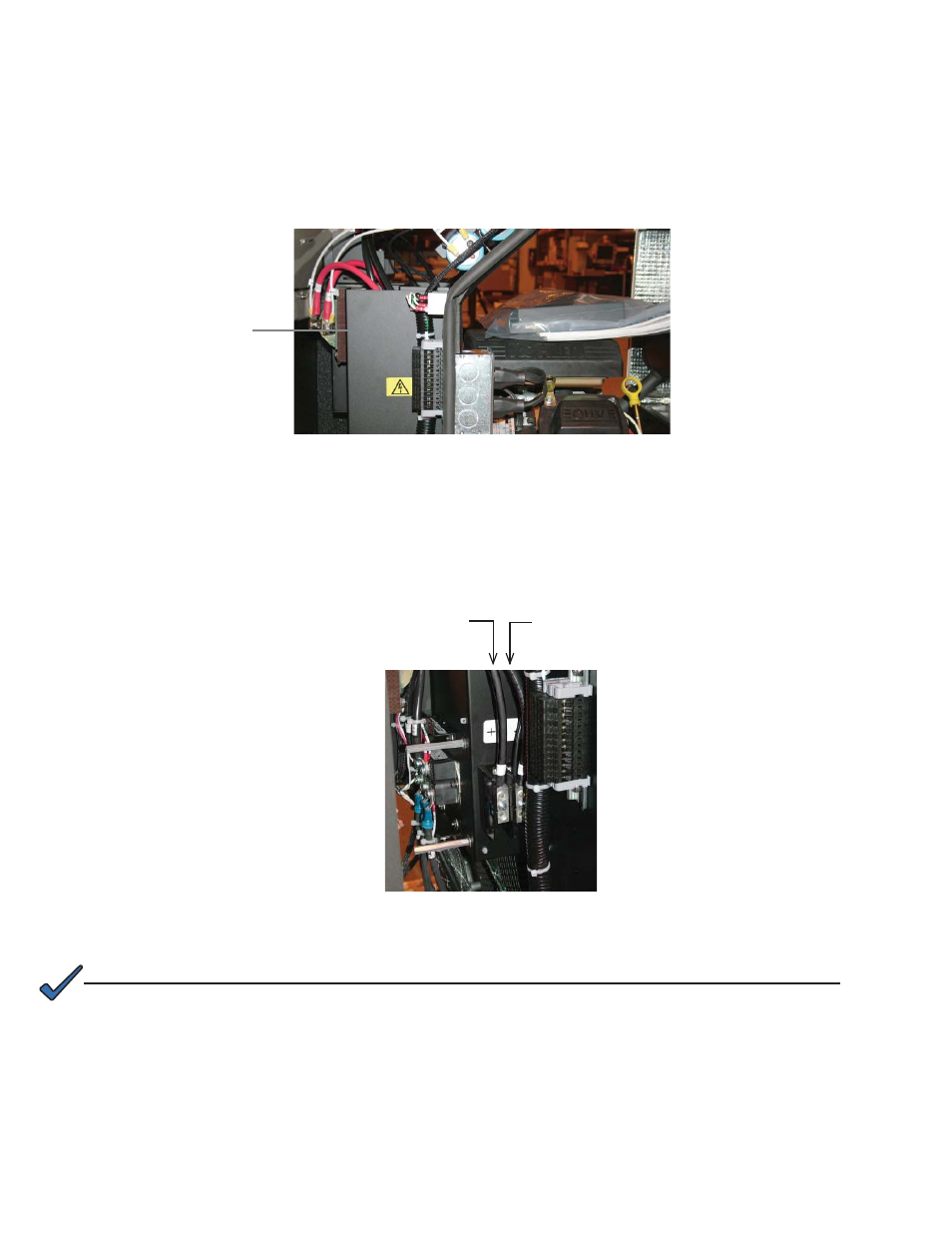

Fig. 3-19, DC Output Safety Shroud
3.0 Installation, continued
3.11 Making the DC Output Connection, PN-6x-T 7.5kW
1. Locate and remove the safety shroud. The shroud is held in place with two thumb screws.
Fig. 3-20, DC Output Connections, PN-6x-T 7.5kW
Positive DC Load Connection Negative DC Load Connection
NOTE:
Before connection, read polarity with a multimeter. To connect a -48V customer load, make the negative load
connection to the postive terminal on the output terminal block, and make the positive load connection to the
negative terminal on the output terminal block.
